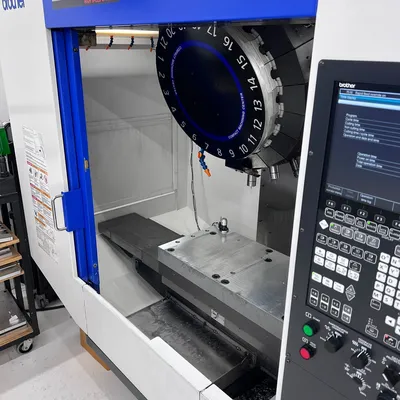

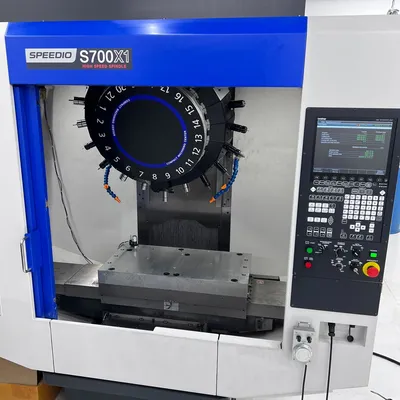

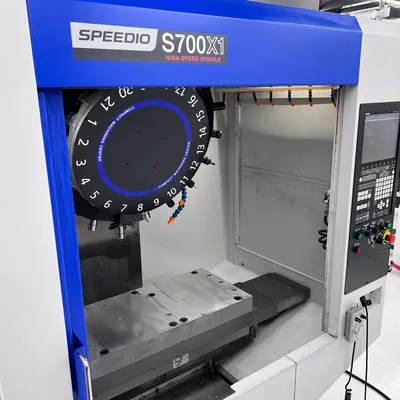

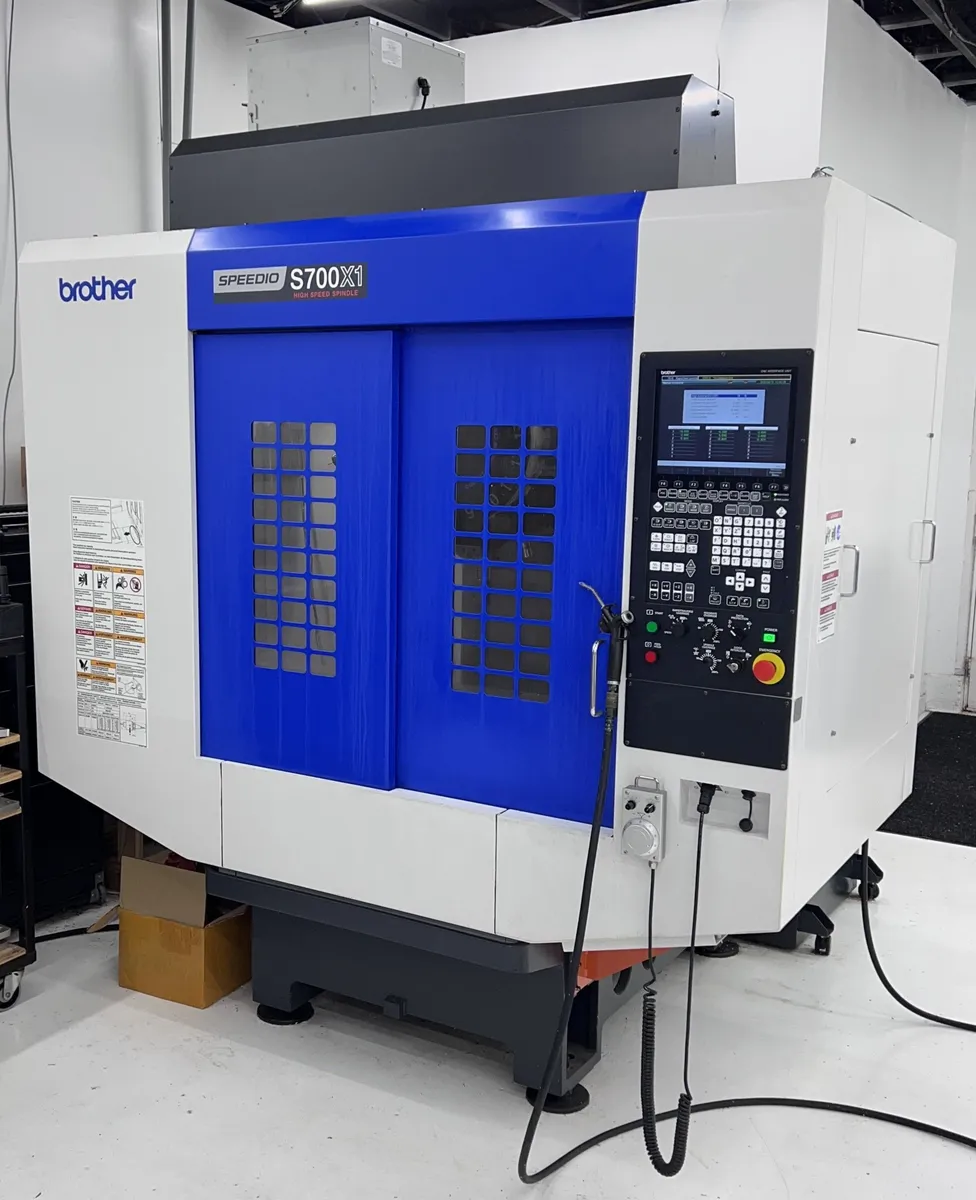

Used 2020 BROTHER SPEEDIO S700X1 | Vertical Machining Centers

Travels
X axis [mm (inch)] 700 (27.6)
Y axis [mm (inch)] 400 (15.7)
Z axis [mm (inch)] 300 (11.8)
Distance between table top and spindle nose end [mm (inch)] 180 ~ 480 (7.1 ~ 18.9)

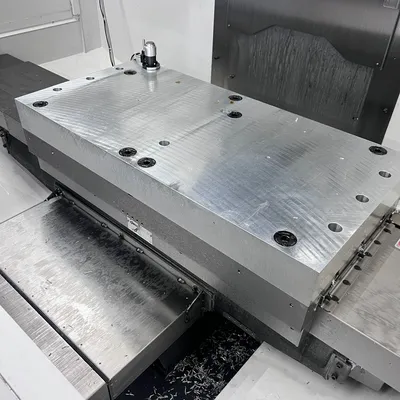

Table
Work area size [mm (inch)] 800 x 400(31.5 x 15.7)
Max.loading capacity (uniform load) [kg (lbs)] 250 [300] (551 [661])*6
Spindle Spindle speed [min-1] 27,000min-1 specifications
Speed during tapping [min-1] Max. 6,000 (27,000min-1 specifications : Max. 8,000)
Tapered hole 7/24 tapered No.30
Feed rate Rapid traverse rate (XYZ-area) [m/min (inch/min)] 50 x 50 x 56 (1,969 x 1,969 x 2,205)
Cutting feed rate [mm/min (inch/min)] X,Y,Z: 1 ~ 30,000 ( 0.04 ~ 1,181)

ATC unit
Tool shank type MAS-BT30
Pull stad type*4 MAS-P30T-2
Tool storage capacity [pcs.] 14 / 21
Max.tool length [mm (inch)] 250 (9.8) 160 (6.3) [21tool]
250 (9.8) [14tool]
Max.tool diameter [mm (inch)]*1 110 (4.3)
Max.tool weight [kg (lbs)]*1(kg) 3.0(6.6) / Tool (TOTAL TOOL WEIGHT:25(55.1) for 14 tools,35(77.2) for 21 tools)
Tool selection method Random shortcut method
Tool change time*5 Tool To Tool[sec.]: 0.8 / Chip To Chip[sec.]: 1.4 / Cut To Cut[sec.]: 1.2

Electric motor
Main spindle motor (10 min/continuous)[kW]*2 27,000min-1 : 8.9/6.3
Axis feed motor [kW] X,Y: 1.0 / Z: 2.0

Power source
Power supply AC200V ±10%, 50/60Hz ±1Hz
Power capacity (continuous) [kVA] 10,000min-1 specifications : 9.5
16,000min-1 specifications(Optional) : 9.5
10,000min-1 high-torque specifications(Optional) : 10.4A
27,000min-1 specifications(Optional) : 9.5
Air supply Regular air pressure [MPa] 0.4 ~ 0.6(recommended value : 0.5MPa)*8
Required flow [L/min] 45 (27,000min-1 specifications:115)

Machine dimensions
Height [mm (inch)] 2,497 (98.3)
Required floor space(with control unit door open) [mm (inch)] 2,050 x 2,220[ 2,692] (80.7 x 87.4[ 106.0])
Weight (including control unit, machine cover) [kg (lbs)] 2,400 (5,291)

Accuracy
Accuracy of bidirectional axis positioning
( ISO230-2:2006 ) [mm (inch)] 0.006 ~ 0.020 ( 0.00024 ~ 0.00079 )
Repeatability of bidirectional axis positioning
( ISO230-2:2006 ) [mm (inch)] Less than 0.004 (0.00016 )
