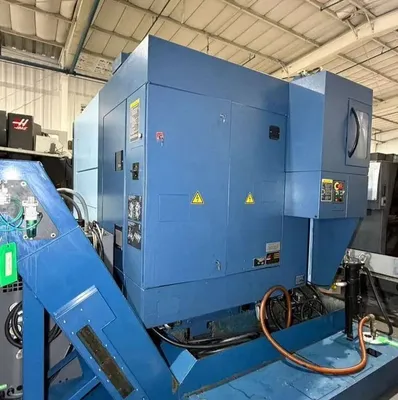

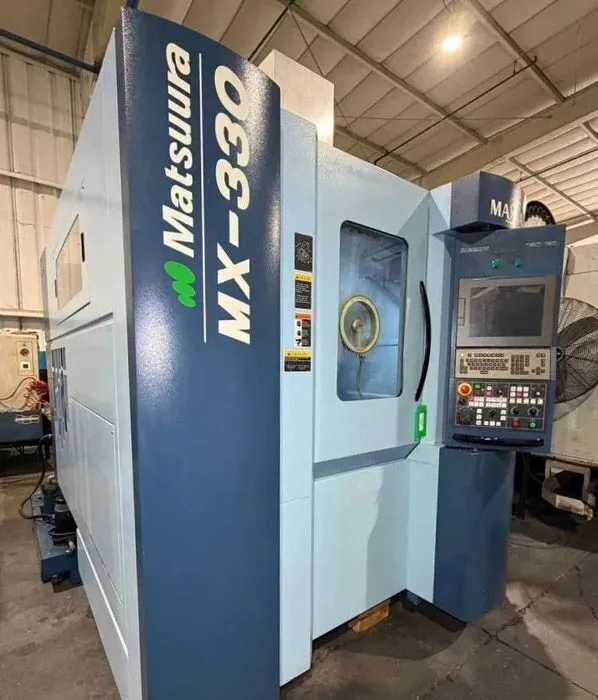

Used 2016 MATSUURA MX-330 | VMC (5+ AXIS)

Movement and Ranges
X-axis stroke mm (in.) 435 (17.13)
Y-axis stroke mm (in.) 465 (18.31)
Z-axis stroke mm (in.) 560 (22.05)
A-axis rotation angle deg -125 ～ +10
C-axis rotation angle deg 360

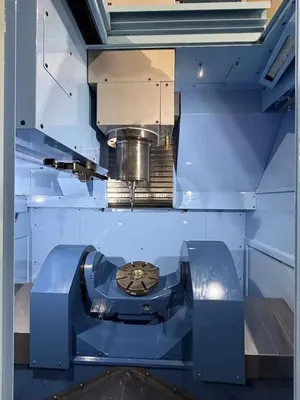

Table
Working surface mm (in.) φ250 φ( 9.84)
Loading capacity kg (lb.) 80 (176)
Max. workpiece size mm (in.) φ330×H320 (φ12.99×H12.59)

Spindle
min-1 15000
Spindle speed change command S5 digits direct command
Type of spindle taper hole 7/24 taper #40 (BT double contact type)
Spindle bearing inner diameter mm (in.) φ70 (φ2.75)
Spindle motor output kW AC5.5/7.5
Max. spindle torque N・m 65.1

Feedrate
Rapid traverse rate X / Y / Z mm/min (ipm) 40000 (1574.8)
A / C min-1 17 / 33
Feedrate X / Y / Z mm/min (ipm) 1 ～ 40000 (0.03 ～ 1574.8)
A / C min-1 17 / 33

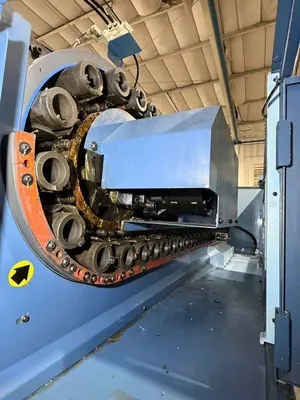

Automatic Tool Changer
Tool storage capacity 60 (Chain magazine)
Max. tool diameter mm (in.) φ80 φ( 3.14) (With adjacent tools)
φ150 (φ5.90) (Without adjacent tools)
Max. tool length mm (in.) 300 (11.81)
Max. tool mass kg (lb.) 10 (22.05)
Method of tool selection Memory random system

Pallet Specification
Working surface mm (in.) φ130 (5.12)
Max. workpiece size mm (in.) φ330×H300 (12.99×11.81)
Pallet type CAPTO C6
