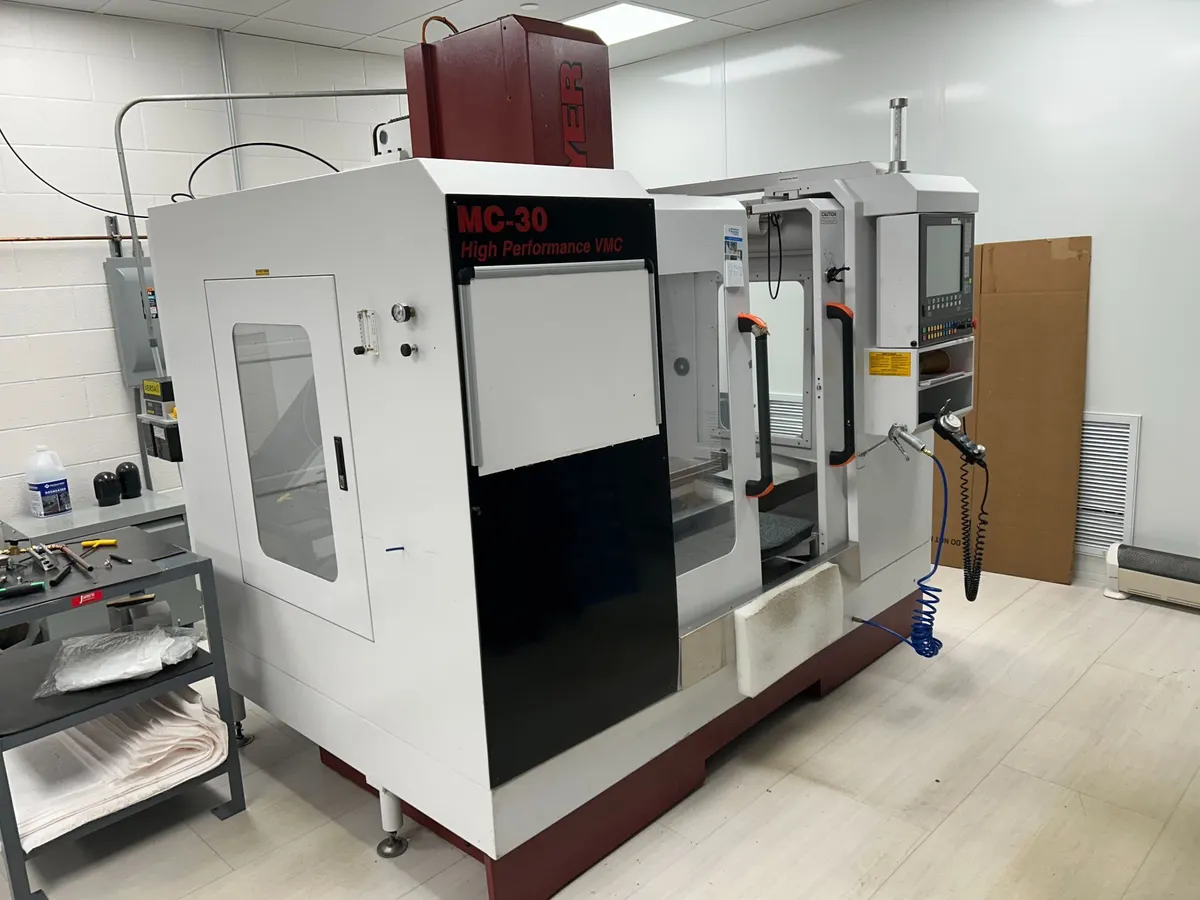

Used 2015 FRYER MC-30 | VMC (5 AXIS)

X Travel 30”
Y Travel 18”
Z Travel 22”
Balscrew size 1.57”
Table Load (Evenly Distributed) 2,500 lbs.
Table Size 16.5” x 31.5”
T-Slots (No./Width) 3 / .708”
Table Top to Floor 30”

SPINDLE
Motor HP (Peak) 30.0 HP
Spindle Speed (RPM) 60 - 8,500 RPM
Spindle Torque (max) 155 ft/lbs @ 350 RPM
Tool Type/Taper CAT 40
Spindle Nose to Table (Max - Min) 25” - 3”
Spindle Center to Column 18”

ATC
Tool Storage Capacity 24 Station Arm Type
Tool Change Time 3 Seconds
Max. Tool Diameter (full) 3.2”
Max. Tool Dia. (adjacent empty) 5.9”
Max. Tool Weight 15.4 lbs.
Max. Tool Length 13”

PERFORMANCE
Positioning Accuracy X, Y, Z +/- 0.0002”
Positioning Repeatability X, Y, Z +/- 0.0001”
Resolution 0.0001”
Rapid Traverse 1,200 X, Y - 900 Z 600 X, Y, Z 400 X, Y, Z
Cutting Feed Rate .001 - 900 IPM .001 - 400 IPM
Servo Type AC Digital Brushless
Axis Thrust (Peak) 4,400 lbs. X, Y, Z

GENERAL INFO
Air Pressure Requirements 90 PSI - 5 CFM
Coolant Capacity 90 Gallons
Coolant Flow 9 Gal/Min
Door Open Width 34”

Shipping Dimensions* (WxDxH) 93”x86”x76”
Operating Dimensions (WxDxH) 93”x86”x89” 1211”x122”x114” 240”x122”x114”
Machine Weight 9,900 lbs
