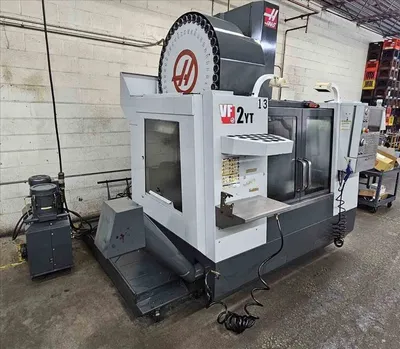

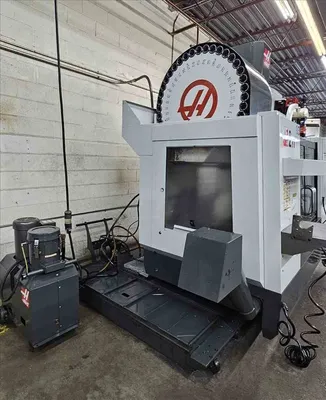

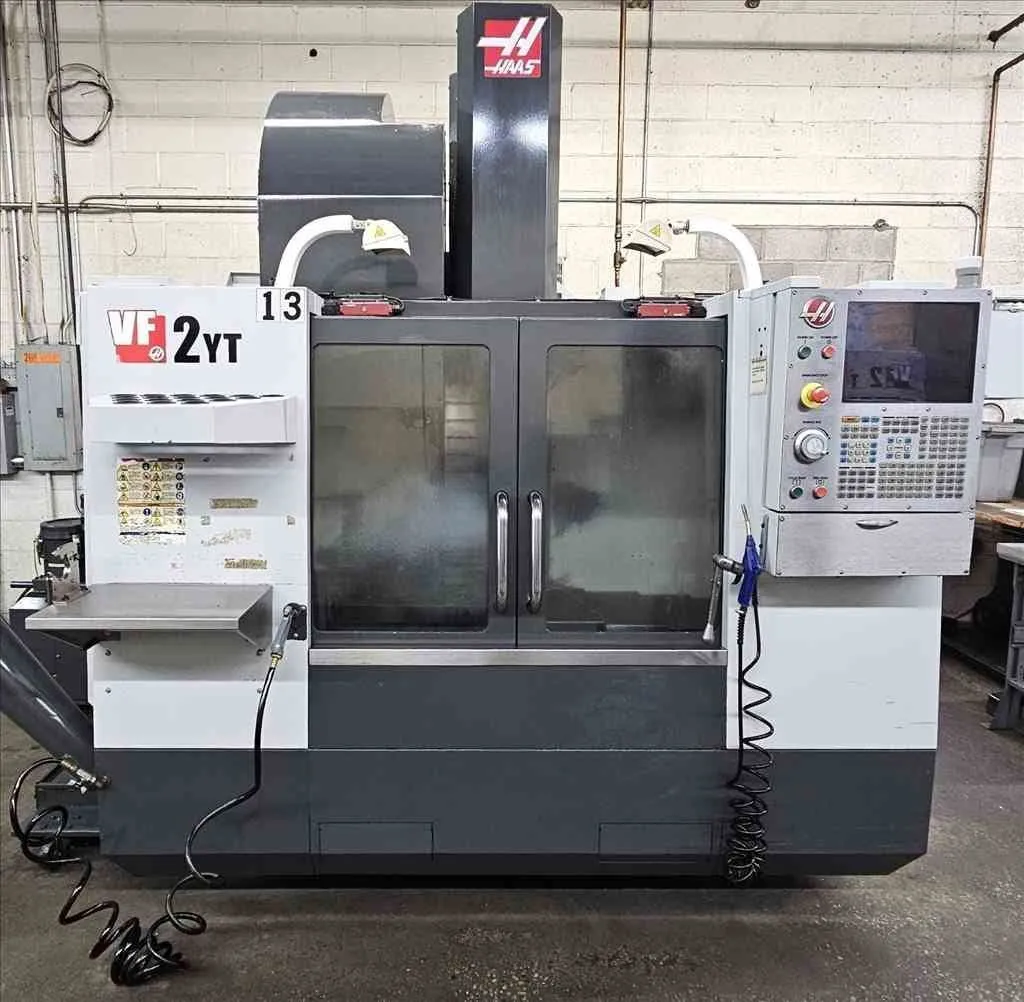

Used 2015 HAAS VF-2YT | Vertical Machining Centers

TRAVELS
X Axis 30.0 in / 762 mm
Y Axis 16.0 in / 406 mm
Z Axis 20.0 in / 508 mm
Spindle Nose to Table (~ max) 24.0 in / 610 mm
Spindle Nose to Table (~ min) 4.0 in / 102 mm

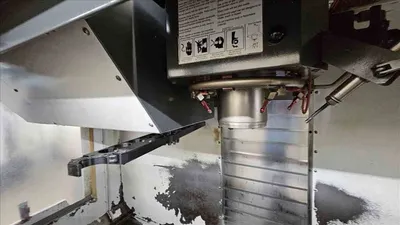

SPINDLE
Max Rating 30.0 hp /22.4 kW
Max Speed 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm / 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive
Taper CT40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled

TABLE
Length 36.0 in / 914 mm
Width 14.0 in / 356 mm
T-Slot Width 0.626 in to 0.630 in / 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 1500 lb 680 kg

FEEDRATES
Max Cutting 833 ipm / 21.2 m/min
Rapids on X 1400 ipm / 35.6 m/min
Rapids on Y 1400 ipm / 35.6 m/min
Rapids on Z 1400 ipm / 35.6 m/min
AXIS MOTORS
Max Thrust X 1995 lbf / 8874 N
Max Thrust Y 1995 lbf / 8874 N
Max Thrust Z 3085 lbf / 13723 N
TOOL CHANGER
Type SMTC
Capacity 40+1
Max Tool Diameter (full) 2.5 in / 64 mm
Max Tool Diameter (adjacent empty) 5.0 in / 127 mm
Max Tool Length (from gage line) 11 in / 279 mm
Max Tool Weight 12 lb / 5.4 kg
Tool-to-Tool (avg) 1.8 s
Chip-to-Chip (avg) 2.4 s

GENERAL
Coolant Capacity 55 gal / 208 L

AIR REQUIREMENTS
Air Required 4 scfm @ 100 psi / 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi / 5.5 bar

DIMENSIONS - SHIPPING
101 in x 99 in x 101 in / 257 cm x 251 cm x 257 cm
Weight 7800 lb / 3539.0 kg

ELECTRICAL SPECIFICATION
Spindle Speed 12000 rpm
Drive System Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 70 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 35 A
