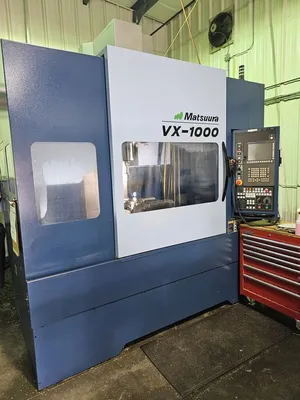

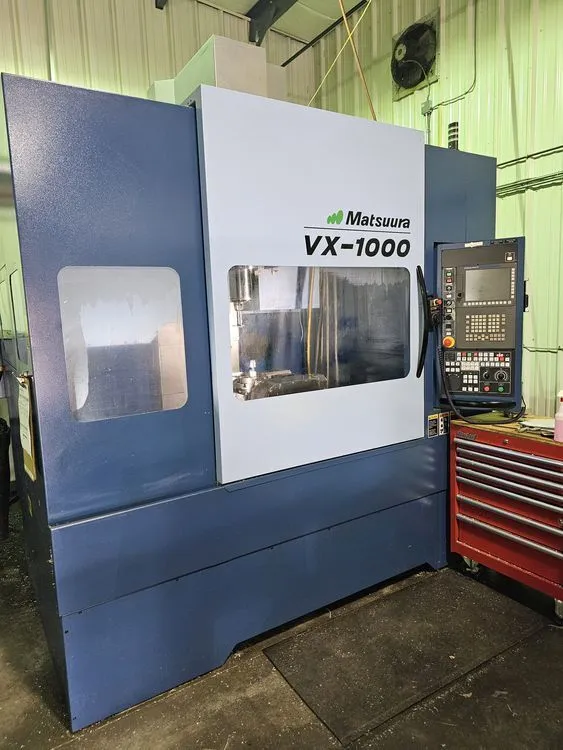

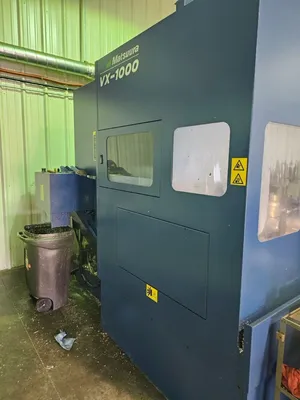

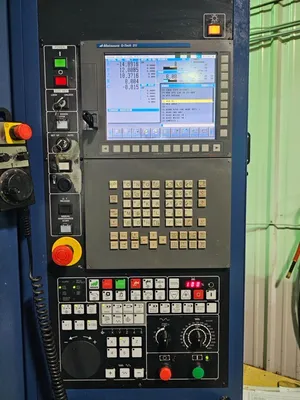

Used 2017 MATSUURA VX-1000 | VMC (5 AXIS)

Movement and Ranges
X-Axis Travel mm (in.) 1020 (40.15)
Y-Axis Travel mm (in.) 610 (24.01)
Z-Axis Travel mm (in.) 610 (24.01)
Table Surface to Spindle Gauge Line mm (in.) 100 - 710 (3.93 - 27.95)
Table Center to Column Guideway mm (in.) 390 - 1000 (15.35 - 39.37)
Spindle Center to Column Guideway mm (in.) 695 (27.36)

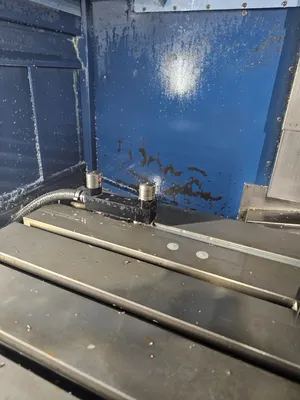

Table
Working Surface mm (in.) 1200×600 (47.24×23.62)
Loading Capacity kg (lb.) 500 (1100)
Working Surface Configuration
(width×number×pitch) mm (in.) 18 (11/16)×5×100 (3.93)
Table Height (from floor) mm (in.) 930 (36.61)

Spindle
Spindle Speed Range min-1 50 - 15000 (Grease Lubrication)
Spindle Speed Change Command S5-digit Direct Command
Spindle Taper 7/24 Taper JIS BT40 (Double Contact Type)
Spindle Bearing Inner Dia. mm (in.) 80 (3.14)
Max. Spindle Torque N・m 150 / 1400min-1
Spindle Air Blow Standard
Spindle Orientation Standard (Electrical)
Tool Clamping Force kN 12.0

Feedrate
Rapid Traverse Rate X / Y / Z mm/min (ipm) 40000 / 40000 / 36000 (1574.8 / 1574.8 / 1417.32)
Feedrate
X / Y / Z mm/min (ipm) 1 - 20000 (0.1 - 787.4)
Limited to maximum cutting feed rate of the z-axis if simultaneous 2-axis (X/Z and Y/Z) or 3-axis (X/Y/Z) interpolation command is executed.
Feedrate Max. Acceleration X / Y / Z G 0.15 / 0.15 / 0.15
Jog Feedrate mm/min (ipm) With Door Opened: 2000 (78.74)
Fast Feed with Door Closed: F0%, 25%, 50%, 100%
Min. Movement Increment X / Y / Z mm (in.) 0.001 (0.000039)

Automatic Tool Changer
Type of Tool Shank JIS B 6339 Tool Shank 40T
Type of Retention Knob JIS B 6339 Pull Stud 40P
Number of Tools 30
Max. Tool Diameter mm (in.) 76 (2.99)
Max. Tool Diameter mm (in.) 125 (4.92) (When the pockets on both side are empty)
Max. Tool Length mm (in.) 280 (11.02)
Max. Tool Mass kg (lb.) 7 (15.4)
Tool Selection Memory Random
Tool Change Arm Double Grip Type
Tool Pocket Pitch mm (in.) 76.2 (3.0)

Motors
Spindle Motor
kW AC 15 / 22 (low-speed winding: continuous/15 min)
kW AC 15 / 22 (high-speed winding: continuous/15 min)
Feed Motors
X-Axis kW AC 3.0
Y-Axis kW AC 3.0
Z-Axis kW AC 4.0
Coolant Pump Motor kW AC 0.555 / 0.885 （50Hz / 60Hz）
Chip Flush Pump Motor kW AC 0.555 / 0.885 （50Hz / 60Hz）
Oil Cooler Pump Motor kW AC 0.75

Power Supply
Electrical Power Supply kVA 43 (varies with option configuration)
Power Supply Voltage V
AC 200 / 220 ± 10%
Transformer required if supply voltage is
other than above
Power Supply Frequency Hz 50 / 60 ± 1
Compressed Air Supply MPa 0.54 - 0.93

Tank Capacity
Coolant Tank Capacity L 300
Oil Cooler Tank Capacity L 36

Machine Size
Machine Height (from floor) mm (in.) 3030 (119.29)
Floor Space mm (in.) 2751W×2893D (108.30W×113.89D)
(varies with option configuration)
Mass of Machine kg (lb.) 7390 (16258) (include NC Equipment and ATC Magazine)

Table Size: 47.24″ x 23.62″
X-Axis: 40.1″
Y-Axis: 24″
Z-Axis: 24″
Spindle Taper: BT 40
Spindle Speed: 15,000 RPM
Tool Change: 30
Rapid Traverse X/Y/Z: 1574/`574/1181 IPM
Table Weight Capacity: 3300 lbs
Approx. Weight: 20,000 lbs
