Travels ( X x Y x Z axes) mm 370 x 270 x 220 / 14.57" x 10.63" x 8.66"
Travels ( U x V axes) mm ±50 x ±50 / ±1.97" x ±1.97"
Table Working Area mm 630 x 460 / 24.8" x 17.7"
Maximum Workpiece size mm 770 x 590 x 220 / 30.3" x 23.2" x 8.66"
Maximum Dielectric Fluid Height mm 260 / 10.24"
Maximum Workpiece Weight kg 600 / 1322 lbs
Height of Table Surface mm 950 / 37.4"
Wire Electrode Diameter mm Dia. 0.1, 0.15, 0.2, 0.25, 0.3 /0.0039", 0.0059", 0.0079", 0.0098"
Maximum Taper Angle ±15 / 100mm *1 /.59" / 3.94"
Dielectric Fluid Tank Capacity L 670 / 176 gal
Deionizing Resin 20-liter pack
Dielectric Fluid Filters 2 / 4
Machine Dimensions (W x D) mm 1981 x 2523 / 77.99"" x 99.33"
Machine Height (h) mm 2116 / 83.31"
Floor Space (W x D) mm 2580 x 3650 / 101.57" x 143.7"
Machine Weight kg 3200 / 7055 lbs

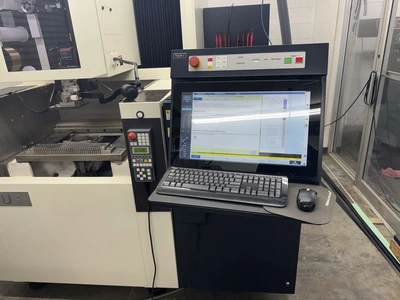

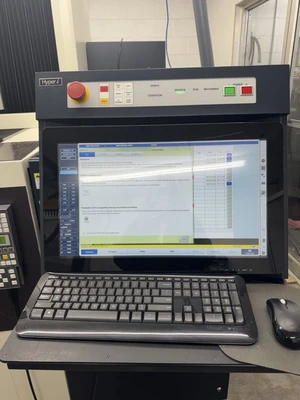

Makino Hyper I Control
Auto Threading
PICO round wire guides
Dielectric Fluid Height Setting Function
*Specifications subject to buyer verification.
