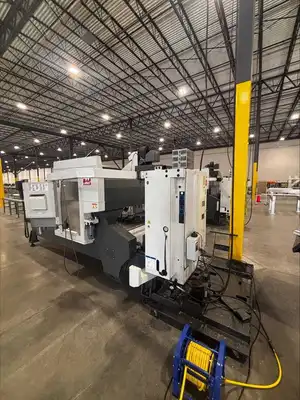

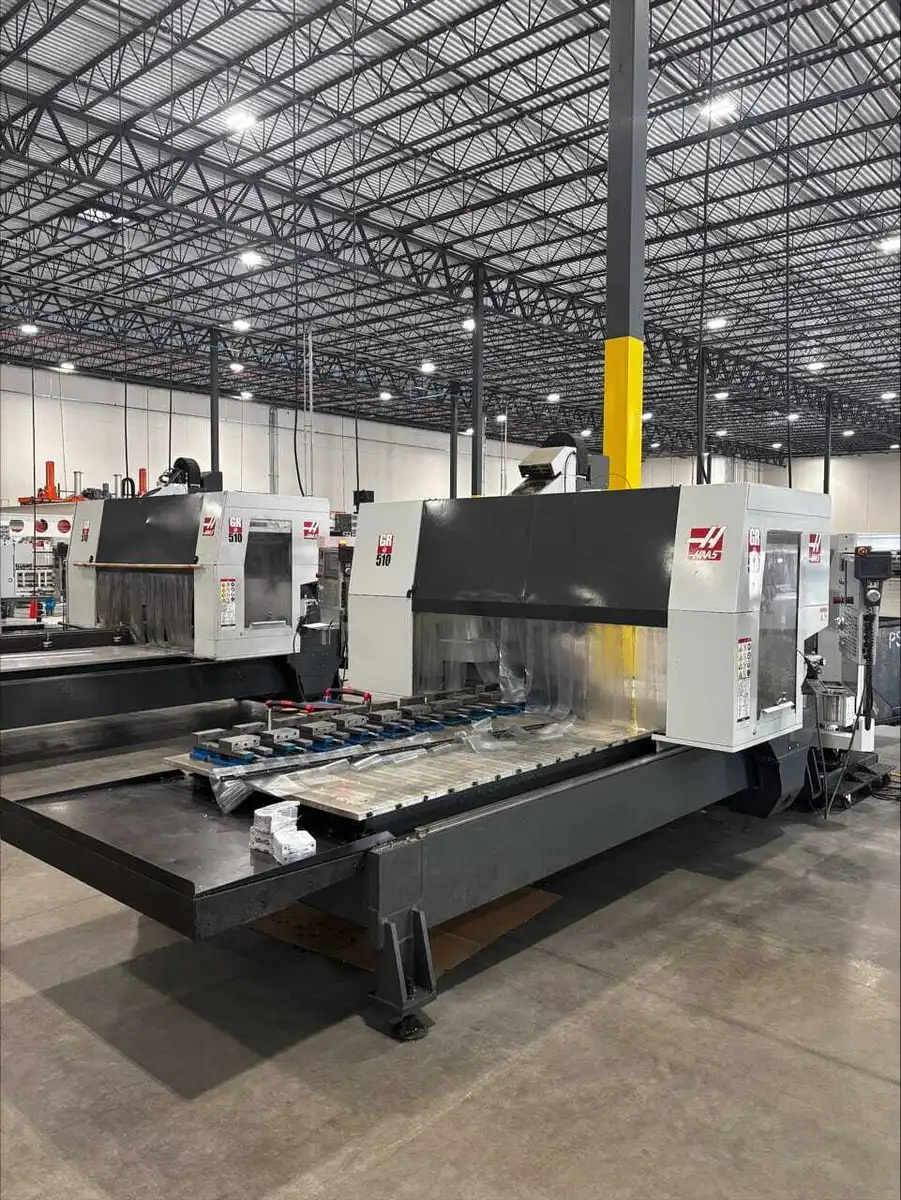

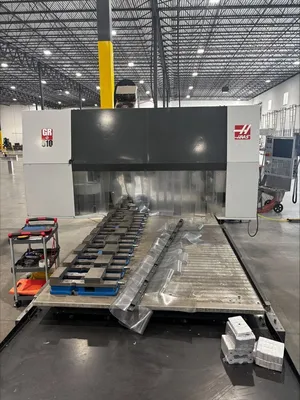

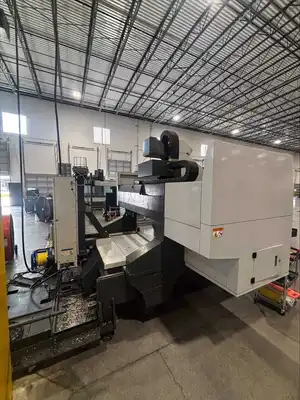

Used 2021 HAAS GR-510 | Gantry Machining Centers (incld. Bridge & Double Column)

Travels
X Axis 121.00 in 3073 mm
Y Axis 61.00 in 1549 mm
Z Axis 11.00 in 279 mm
Spindle Nose to Table (~ max) 13.5 in 343 mm
Spindle Nose to Table (~ min) 2.5 in 64 mm

Spindle
Max Rating 15.0 hp 11.2 kW
Max Speed 8100 rpm
Max Torque 48.0 ft-lbf @ 1500 rpm 65.0 Nm @ 1500 rpm
Drive System Direct Speed
Taper CT 40

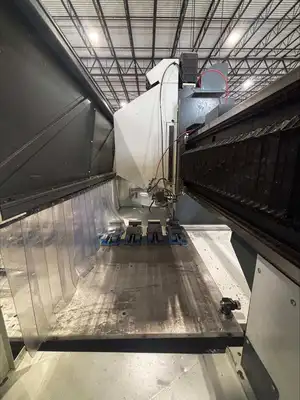

Table
Length 122.0 in 3099 mm
Width 53.0 in 1346 mm
Max Weight on Table (evenly distributed) 6000 lb 2722 kg
Between Columns 62.0 in 1575 mm

Feedrates
Max Cutting 800 ipm 20.3 m/min
Rapids on X 800 ipm 20.3 m/min
Rapids on Y 2100 ipm 53.3 m/min
Rapids on Z 1100 ipm 27.9 m/min

Axis Motors
Max Thrust X 2520 lbf 11210 N
Max Thrust Y 1020 lbf 4537 N
Max Thrust Z 2050 lbf 9119 N

Tool Changer
Type Carousel
Capacity 20
Max Tool Diameter (full)** 3.5 in 89 mm
Max Tool Weight 12.0 lb 5.4 kg

General
Coolant Capacity 95 gal 360 L

Air Requirements
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
