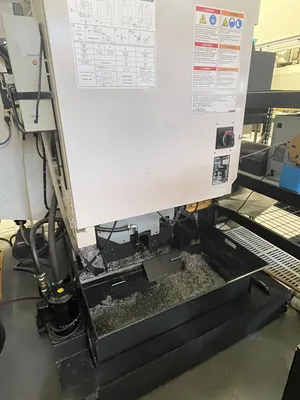

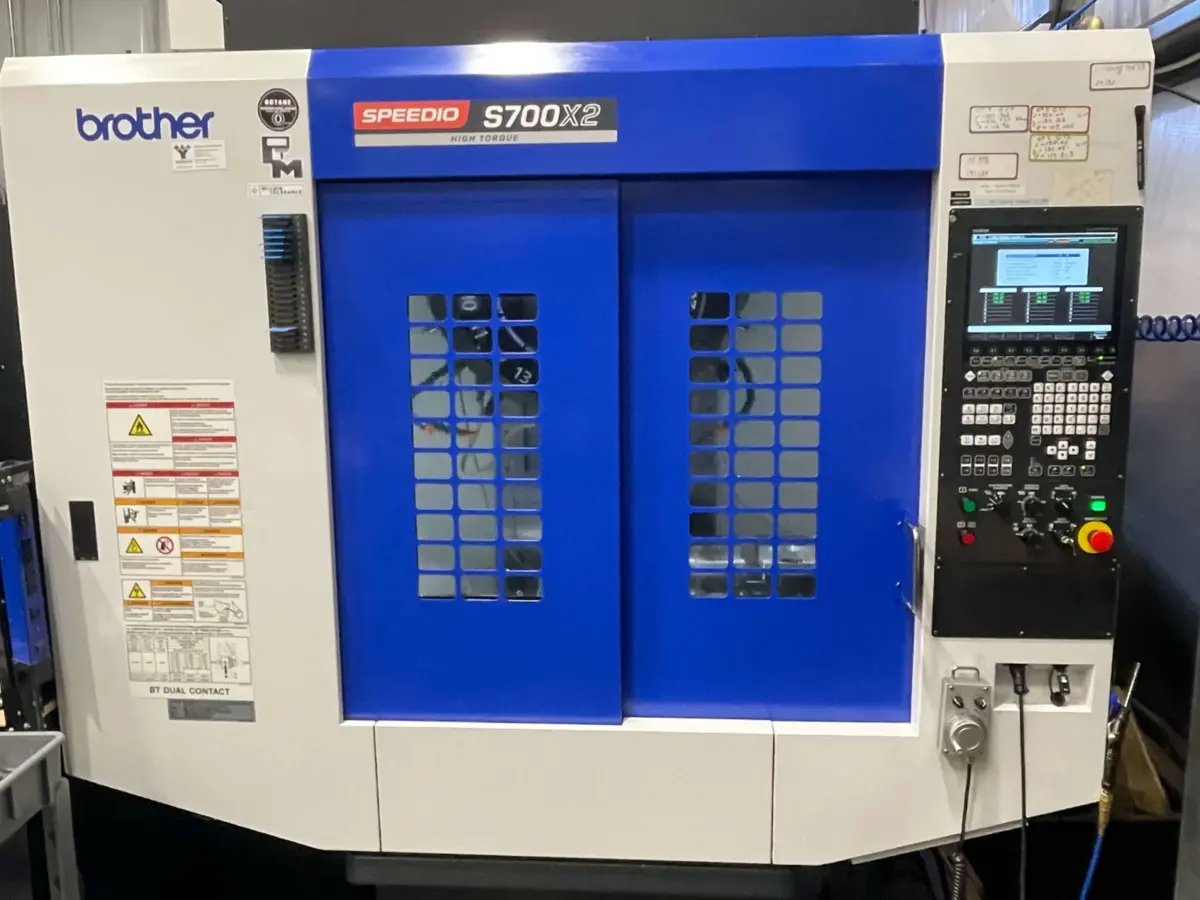

Used 2020 BROTHER SPEEDIO S700X2 | Drilling & Tapping Centers

Travels
X axis mm ( inch ) 700(27.6)
Y axis mm ( inch ) 400(15.7)
Z axis mm ( inch ) 300(11.8)
Distance between table top and spindle nose end mm ( inch ) 180～480(7.1～18.9)

Table
Work area size mm ( inch ) 800×400(31.4×15.7)
Max.loading capacity (uniform load) kg ( lbs) 250［300 *6］( 551［661 *6］)

Spindle
Spindle speed min-1 10,000min-1 specications ： 1～10,000　
Speed during tapping min-1 MAX. 6,000
Tapered hole 7/24 tapered No.30

Feed rate
Rapid traverse rate (XYZ-area ) m/min(inch/min) 50 × 50 × 56 (1,969 × 1,969 × 2,205)
Cutting feed rate mm/min(inch/min) X, Y, Z axis： 1～30,000 ( 0.04～1,181) *7

ATC unit
Tool shank type MAS-BT30
Pull stad type *4 MAS-P30T-2
Tool storage capacity pcs. 21
Max. tool length mm ( inch ) 250(9.8)
Max. tool diameter mm ( inch ) 110(4.3)
Max. tool weight *1 kg ( lbs) 3.0(6.6)／Tool〈35(77.2
Tool selection method Random shortcut method

Tool change time *5
Tool To Tool sec. 0.7
Chip To Chip sec. 1.3

Electric motor
Main spindle motor ( 10min / continuous)*2 kW 10.1／7.1
Axis feed motor kW X, Y axis ： 1.0 Z axis ： 2.0

Power source
Power supply kVA AC V±10％, 50/60Hz±1Hz
Power capacity ( continuous ) 9.5
Regular air pressure MPa 0.4～0.6(recommended value ： 0.5MPa *8)
Required ow L/min 45

Machine Dimensions
Height mm ( inch ) 2,497(98.3)
Required floor space [with control unit door open］mm ( inch ) 2,050×2,223 ［2,794］(80.7×87.5 ［110］)
Machine weight (including control unit and machine cover) kg ( lbs) 2,400(5,291)

Accuracy *3
Accuracy of bidirectional axis positioning ( ISO230-2:1988) mm ( inch ) 0.006～0.020 ( 0.00024～0.00079 )
Repeatability of bidirectional axis positioning ( ISO230-2:2014) mm ( inch ) Less than 0.004 (0.00016 )

NC unit specifications Standard NC functions
CNC model CNC-C00
Control axes 5 axes ( X,Y,Z, two additional axes )

Simultaneously controlled axes
Positioning 5 axes(X,Y,Z,A,B)
Interpolation Linear: 4 axes(X,Y,Z one additional axis )
Circular: 2 axes Helical/conical : 3 axes (X,Y,Z )

Least input increment
0.001mm, 0.0001inch, 0.001 deg.

Max.programmable dimension
±9999.999mm, ±999.9999inch

Display
12.1-inch color LCD

Memory capacity
Approx.100 Mbytes ( Total capacity of program and data bank )

External communication
USB memory interface, Ethernet, RS232C (Optional )

No.of registrable programs
4,000 (Total capacity of program and data bank )

Program format
NC language, conversation (changed by parameter)
conversion from conversation program to NC laguage program available
