Axis Stroke (X x Y x Z) 300 x 250 x 250 (11.8 x 9.8 x 9.8)
Spindle
Distance between Table and Electrode Mounting Surface 200 to 450 ( 7.8 x 17.7)
Max. Electrode Weight 25 (55)

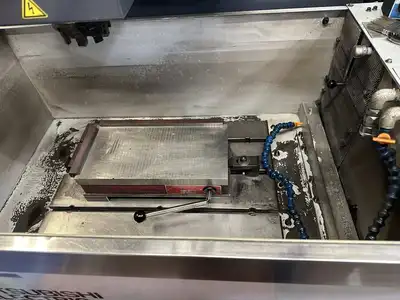

Working Tank
Method Vertical Front Door
Internal Dimensions (W x D x H) 770 x 500 x250 (30.3 x 19.6 x 9.8)
Fluid Level Adjustment Range (From Top of Table) 110 to 200 (4.3 x 7.8)
Table
Dimensions (W x D) 500 x 350 (19.6 x 13.7)
Max. Workpiece Dimensions (W x D x H) 740 x 470 x 150 (29.1 x 18.5 x 5.9)
Distance between Floor and Top of Table 830 (32.7)
Max. Loading Weight 550 (1200)
T-Slot Three Slots at 12-100 Pitch
Dielectric Fluid Reservoir
Capacity 196 (51)
Filtering Method One Paper Filter
Dielectric Fluid Temperature Control Unit Fan Cooler
Machine Unit
Dimensions (W x D x H) 1625 x 1717 x 2000 (63.9 x 67.5 x 78.7)
Total System Weight 2000 (4400)

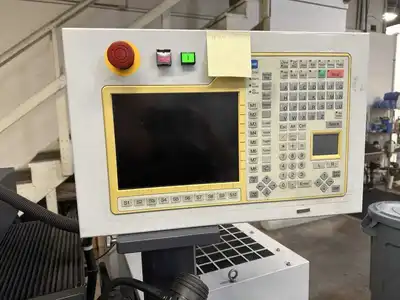

Mitsubishi CNC Control
Auto Feeder
Chiller
*Specifications subject to buyer verification.
