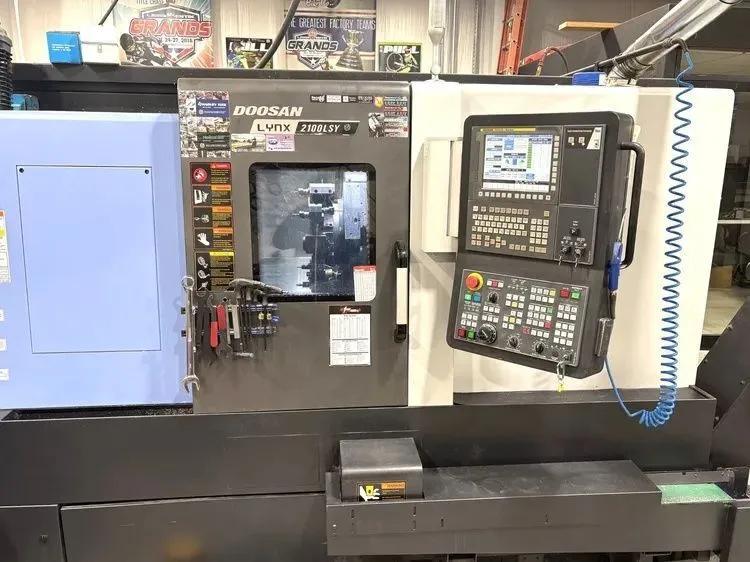

Used 2018 DOOSAN LYNX 2100LSYB | CNC LATHE(5AXIS)

Capacity
Swing over bed mm (inch) 600 (23.6)
Swing over saddle mm (inch) 400 (15.7)
Recom. Turning diameter mm (inch) 210 (8.3)
Max. Turning diameter mm (inch) 300 (11.8)
Max. Turning length mm (inch) 510 (20.1)

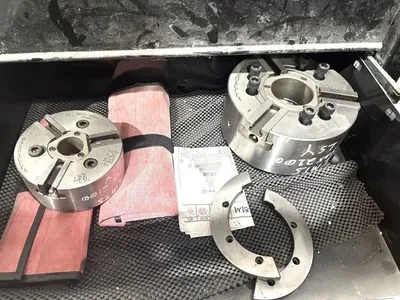

Chuck size inch 8
Bar working diameter mm (inch) 65 (2.6)

Travels
Travel Distance
X-axis mm (inch) 205 (8.1)
Y-axis mm (inch) 105 (±52.5) (4.1 (±2.1))
Z-axis mm (inch) 560 (22.0)

Feedrates
Rapid Traverse Rate
X-axis m/min (ipm) 30 (1181.1)
Y-axis m/min (ipm) 10 (393.7)
Z-axis m/min (ipm) 36 (1417.3)

Spindle
Max. Spindle speed r/min 4500
Main spindle motor power (15min/Con.)(FANUC) kW (Hp) 15/11 (20.1/14.8) (15min/Cont.) 1
Main spindle motor power (S6-60%/ Cont.) (SIEMENS) kW (Hp) 12.6/10.5 (16.9/14.1) (S6 60%/Cont.)
Max. Spindle Torque for Turning (FANUC) N·m (ft-lbs) 169 (124.7)
Spindle nose ASA A2-6
Spindle bearing diameter (Front) mm (inch) 110 (4.3)
Spindle through hole diameter mm (inch) 76 (3.0)
Min. spindle Indexing angle (C-axis) deg 0.001

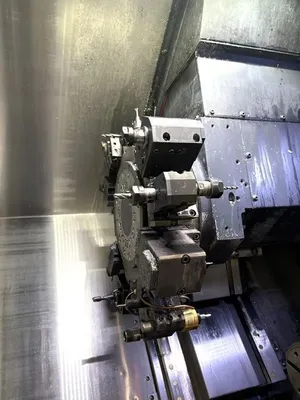

Turret
No. of tool stations ea 12
OD tool size mm (inch) 20 x 20 (0.75 x 0.75)
Max. boring bar size mm (inch) Ø32 (Ø1.3)
Turret Indexing time (1 station swivel) sec 0.11
Max. Rotary tool speed r/min 6000
Rotary tool motor power (FANUC) kW (Hp) 3.7 (5.0)

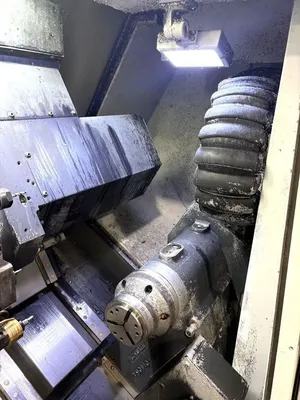

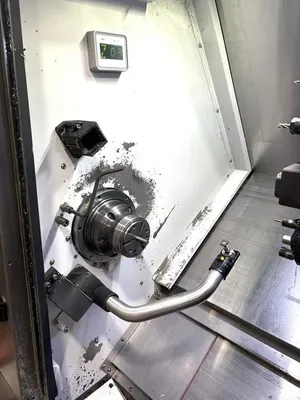

Sub Spindle
Chuck size inch-5
Max. Spindle speed r/min-6000
Main spindle motor power (FANUC) kW (Hp)-5.5/3.7 (7.4/5.0) (30min/Cont.)
Max. Spindle Torque for Turning (FANUC) N·m (ft-lbs) 46 (33.9)
Spindle nose-- Flat Ø110
Spindle bearing diameter (Front) mm (inch)-75 (3.0)
Spindle through hole diameter mm (inch)-43 (1.7)
Min. spindle Indexing angle (C-axis) deg-0.001

Power Source
Electric power supply kVA 34.09

Machine Dimensions
Length mm (inch) 2880 (113.4)
Width mm (inch) 1711 (67.4)
Height mm (inch) 1921 (75.6)
Weight kg (lb) 4200 (9259.3)
