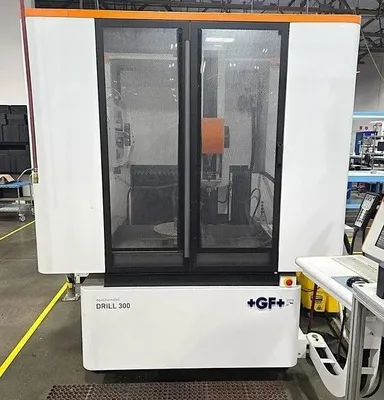

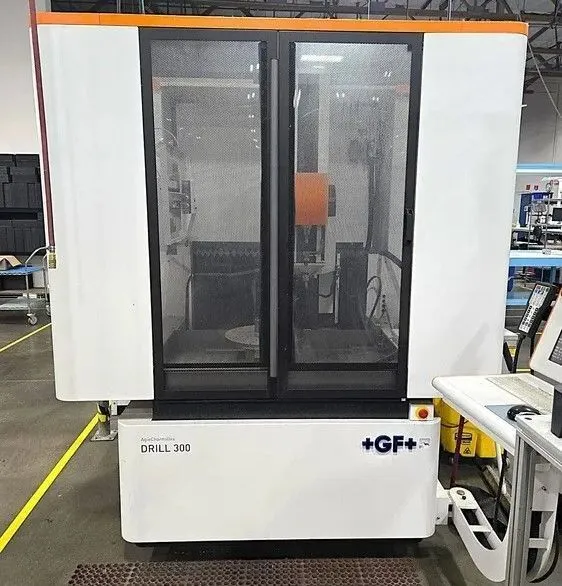

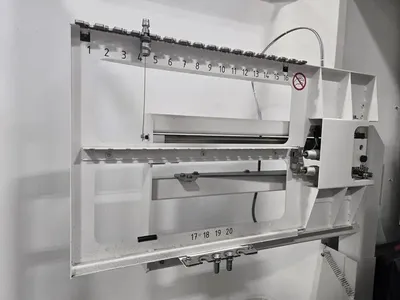

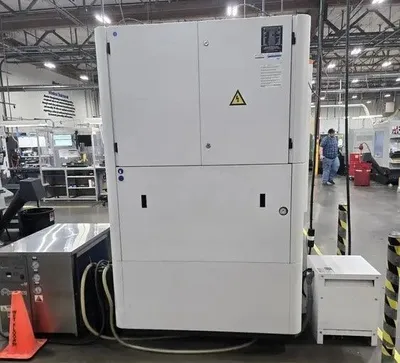

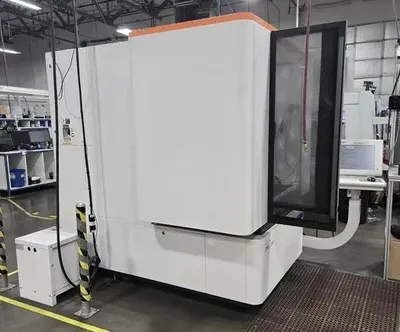

Used 2015 AGIECHARMILLES DRILL 300 | EDM Hole-Driller

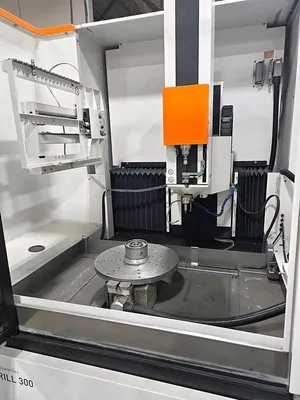

Machining area
Electrode diameter
mm 0.3~3.0 (option: 0.1, 0.2, 4.0, 5.0, 6.0)
in 0.012~0.12 (option: 0.004, 0.008, 0.16, 0.20, 0.24)
Max. workpiece dimension mm (in) 1000 x 700 x 500 (39.37 x 27.56 x 19.69)
Max. workpiece dimension with tilting/rotary axes mm (in) Ø x L = 350 x 320 (13.78 x 12.60)
Max. workpiece weight kg (lbs) 1000 (2205)
Max. workpiece weight with tilting/rotary axes kg (lbs) 25 (55) including clamping weight
Worktable dimension mm (in) 800 x 600 (31.50 x 23.62)
Worktable type 4 bars (2 stationary, 2 adjustable)
Distance from table surface to floor mm (in) 850 (33.46)

Axes
Travel X x Y axes mm (in) 600 x 400 (23.62 x 15.75)
Travel W x Z axes mm (in) 450 x 450 (17.72 x 17.72)
Tilting/rotary axes (option) º ±100 / 0~360
Max. axis motion speed m/min. (ft/min) 4 (13.12)
Measuring system for Z, W axes Encoder
Measuring system for X, Y axes Encoder
Lubrication Manual

Dielectric unit
Dielectric type Industrial water or civil water
Dielectric capacity l (us gal) 200 (53)
Max. flushing pressure bar (psi) 80 (1160)
Filter accuracy µm 5
Capacity of deionizing bottle l (us gal) 10 (2.6)
Cooling system Water/water heat exchanger

Generator
Generator type ISPG
Max. mean working current A 60
Cooling system inside cabinet Air/water heat exchanger

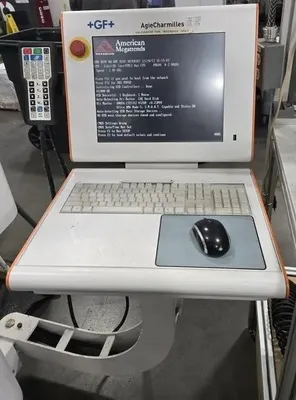

Numerical control
Flat screen 17” flat touchscreen
Keyboard, Mouse
Storage capacity >230 GB HD, 1024 MB Ram
Interface port USB and Ethernet
Measurement unit Metric/inch
Command format Absolute/incremental
Coordinates system Machine, part
Max. number of machining in the program 500
Servo controlled axes X, Y, Z, W, A, B
Import files XML.NCC, ISO.NCC, PAT.NCC
Onboard CAD/CAM AC CAM DRILL
First spark detection
Electrode wear compensation
Breakthrough detection
Onboard documentation

Electricity supply
Three-phase input voltage V 380 or 400
Permissible variations from +10% to -10%
Main frequency Hz 50 or 60
Power consumption kVA 4.2
Nominal current A 6

Cooling water when heat exchanger used
Flow minimum required l/min (gal/min) 20 (5.2)
Temperature
°C < Tworkshop – 9° C
°F < Tworkshop – 18° F

Compressed air
Pressure range between bar (psi) 6 to 8 (85 to 113)
Flow minimum required m3 /h (yd3/h) 5 (6.54)
Connection pipe external diameter mm (in) 10 (0.4)

Main options
Tilting head ° Max. ~ ±45

Machine
Machine dimensions (L x W x H) mm (in) 2320 x 1900 x 2180 (91.34 x 74.8 x 85.83)
