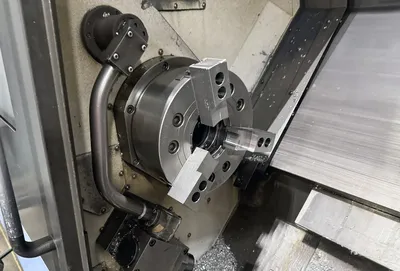

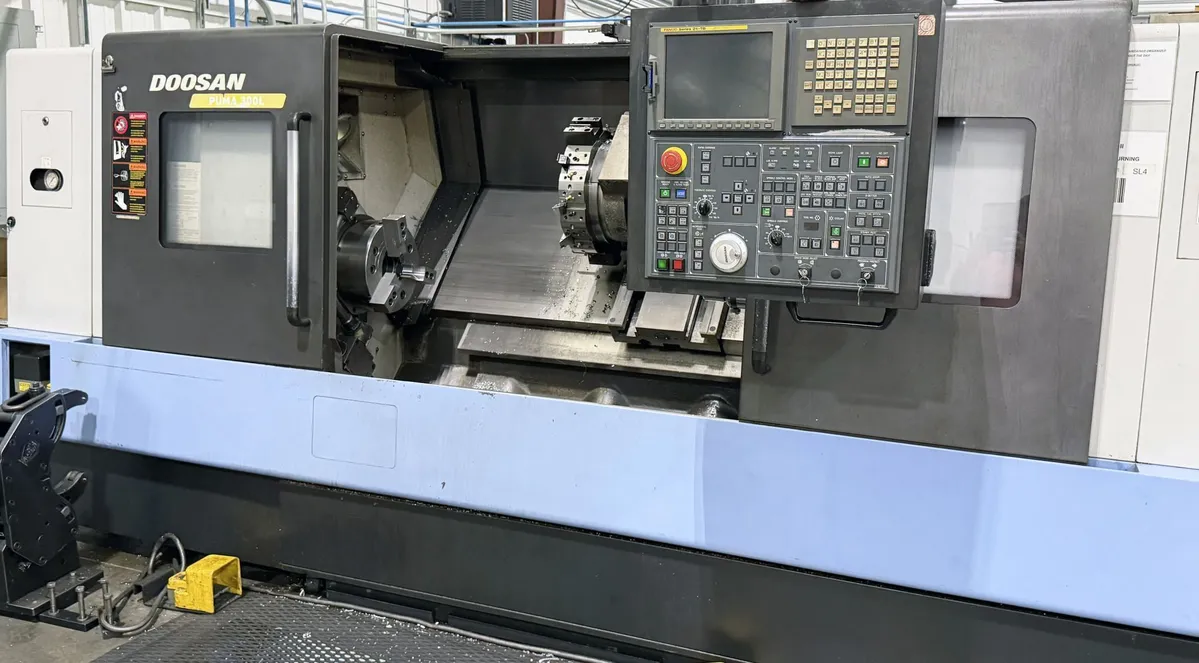

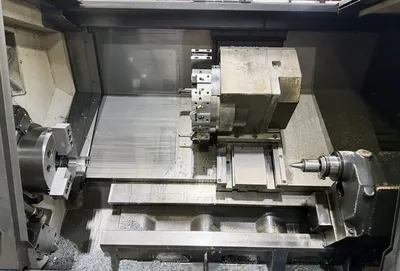

Used 2007 DOOSAN PUMA 300LC | CNC LATHE

Capacity:
Max Turning Diameter 15.7″
Max Turning Length 50.4″
Max Bar Capacity 4.05″
Swing Over Bed 22.4″
Distance Between Centers 52.8″
X Axis Travel 11.1″
Z Axis Travel 52.4″
Rapid Traverse X Axis 787 IPM
Rapid Traverse Z Axis 945 IPM
Spindle Nose A2-11
Spindle Bore 4.5″
Spindle Speed 0 – 2800 RPM
Turret Capacity 12 Stations
Turret Index Time 0.15 Second
Tailstock Taper MT-4
Tailstock Quill Diameter 3.97″
Tailstock Quill Travel 4.7″
General:
Spindle Motor 35 HP
Power 45 KVA, 220v / 3-Phase
Overall Dimensions R-L 150″ x F-B 77″ x Height 80″
Overall Dimensions R-L 168″ x F-B 77″ x Height 80″With Chip Conveyor
Weight 15000 Lbs.
