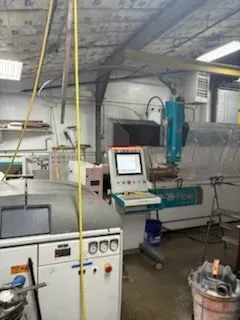

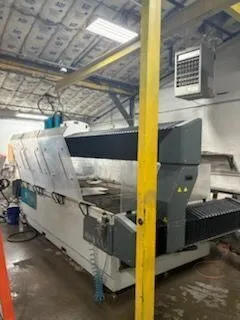

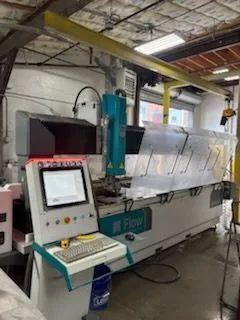

2018 Flow Mach 300 3015 DWJ 5-Axis Capable
Have one to sell?
ConditionUsed
1 available

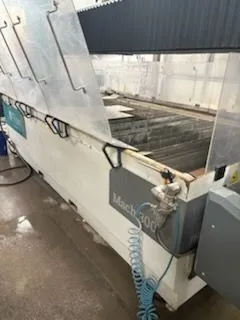

Table : 5' x 10' / 60" x 120"
Work Area Travel, Accuracy, and Repeatability - X Axis (in.) 118
Work Area Travel, Accuracy, and Repeatability - Y Axis (in.) 59
Work Area Travel, Accuracy, and Repeatability - Z Axis (in.) 12
Linear Straightness Accuracy ± 0.0021 in/3ft / ± 0.053 mm/m
Rapid Traverse Maximum 472 in/min / 12 m/min
Repeatability ± 0.0014 in / ± 0.035 mm
Z Travel 12 in / 305 mm
Base 5 ft / 1.5 m
Bridge 6.5 ft, 10 ft / 2 m, 3 m
Acceleration 0.075 g
Ballbar Circularity ± 0.003 in / ± 0.076 mm
Dynamic Waterjet -
-Higher precision: It produces much more accurate parts with tighter tolerances, as the technology compensates for stream lag and taper
-Faster cutting speeds: It can cut parts two to four times faster than conventional waterjets while maintaining high accuracy
-Improved quality: The system creates more consistent parts, including uniform cuts on stacked materials
-5-axis capability

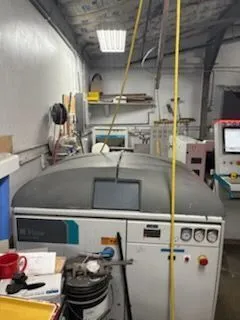

HyperJet rated at 94,000 psi / 6,500 bar

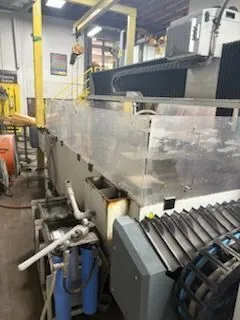

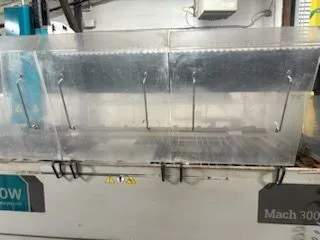

Custom Splash Guard
Cleaned and serviced with all minor and major seals and work done. Work invoices and all documents available upon request.
*Specifications Subject to Buyer Verification.
