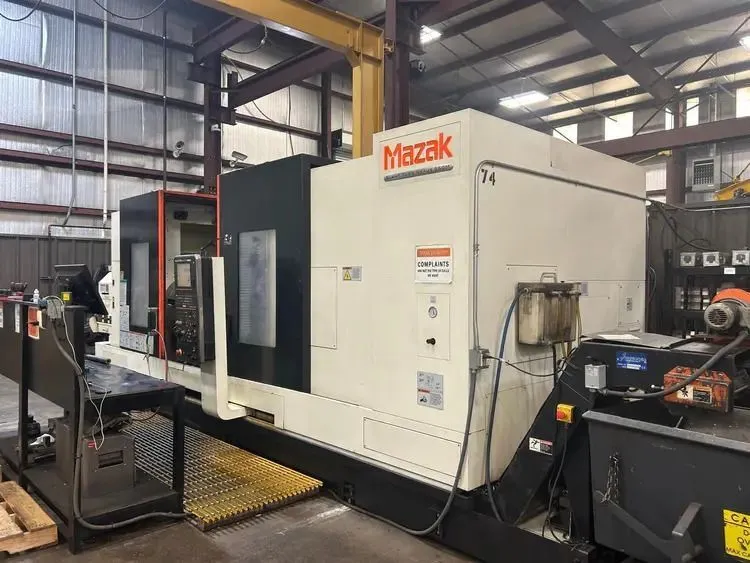

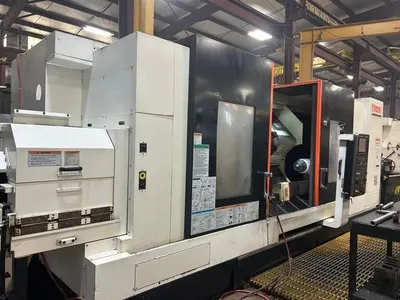

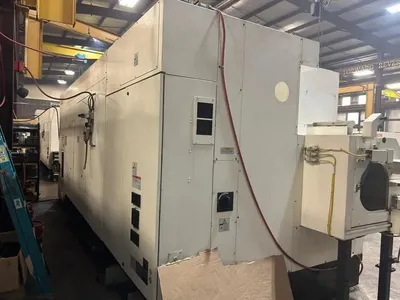

Used 2011 MAZAK SLANT TURN NEXUS 550M-2000U | CNC LATHE
Have one to sell?
ConditionUsed
1 available
Capacity
Max. Swing 1040mm / 40.9"
Max. Machining Diameter 910mm / 35.8"
Swing Over Carriage 748mm / 29.4"
Max. Machining Length 2044mm / 80.4"
Travel
X-Axis Travel 465mm / 18.3"
Z-Axis Travel 2165mm / 85.2"

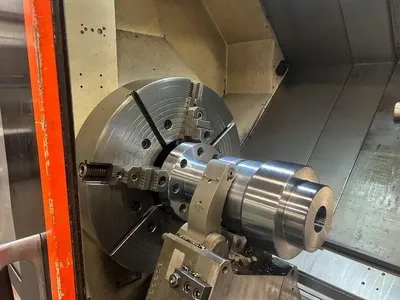

Chuck Size 24"
Spindle Speed 750 RPM
Number of Spindle Speed Range 2 Steps
Spindle Nose A2-20
Spindle Bore 320mm 12.5"

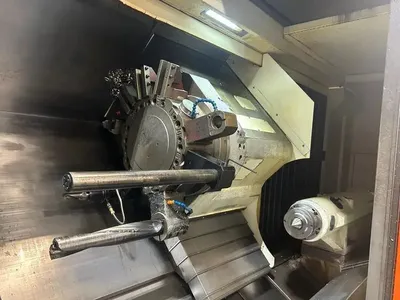

Turret
Number of Tools 12
Tailstock
Stroke 2083mm / 82"
Floor Space ~6965mm x 2440mm x 2605mm / 274" x 96" x 102"
Machine Wight ~15300 kg / 33730 lbs
