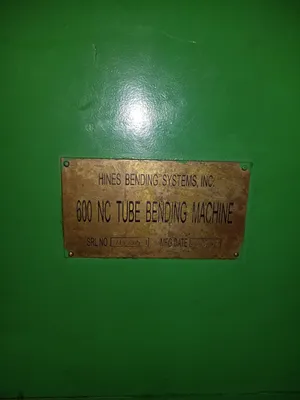

Used 2005 HINES 600NC | TUBE/PIPE BENDER
Have one to sell?
ConditionUsed
1 available
Capacity: 6″ OD x .200 Wall
Standard Maximum Radius: 18 inch
Maximum Bend Angle: 190 degrees
Bend Angle Accuracy (+ / -): 0.1 degree
Bend Arm Speed: 0.4rpm
Maximum Tube Length Over Mandrel: 14 feet
Motor: 30 HP
Operating Pressure: 2300psi
Reservoir Capacity: 275 U.S. Gallons
Approximate Weight: 23000lbs
Approximate Dimensions: 19’ L x 7’ W x 5.5’ H
Voltage: 440/480/3 Phase/60Hz

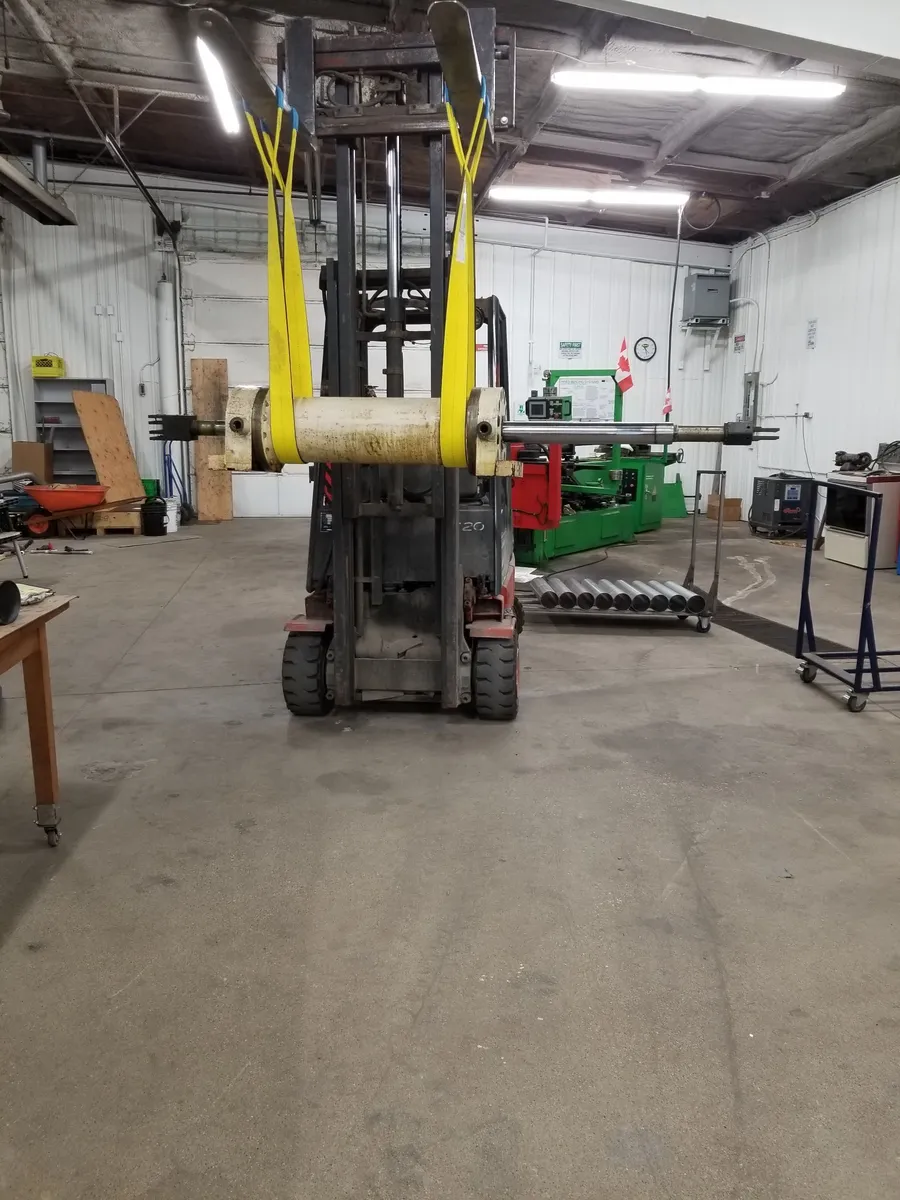

Main cylinder rebuilt in 2021
5.00x.065 die sets
4.00 x .065 die sets
3 mandrel rods
*Specifications Subject to Buyer Verification.
