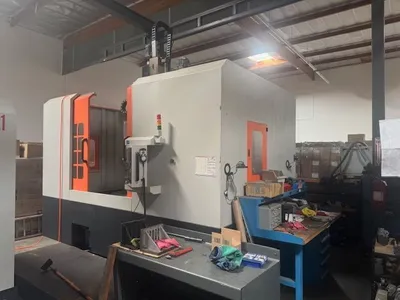

2020 DAHUIMT DMTC CGK5112JD RAM TYPE VTL

Manual Chuck Diameter mm 1000 / 39.37"
Max swing diameter of workpiece mm 1200 / 47.24"
Max Machining Diameter mm 1200 / 47.24"
Max Machining Height mm 1000 Optional / 39.37"
Max Workpiece Weight Kg 5000 / 11023 lb
Worktable Speed Step Two Gears Stepless ZF
Table speed range r/min 400
Beam Travel mm 800 / 31.49"
Max torque of worktable N 30000
Feeding series Stepless
Feeding range mm/min 0.1—2000 / 0.0039-78.74 in/min
Rest fast moving speed mm/min 5000 / 196.85 in/min
X axis Feeding Moter Torque Nm 12 / 8.85 ft-lb
Z axis Feeding Moter Torque Nm 22 / 16.22 ft-lb
Tool Rest Horizontal Travel mm -50--650 / 1.96" - 25.96"
Tool Rest Vertical Travel mm 800 / 31.49"
Max cutting force N 2800
Main motor kw 22 / 29.5 Hp
Machine Size（L×W×H） mm 3100×2700×2800 / 122.1" x 106.23" x 110.24"
Machine Weight ~ Kg 11000 / 24251 lbs
