Used 2022 EUROTECH TA-20-YS-640 | 5-Axis or More CNC Lathes
Have one to sell?
ConditionUsed
1 available

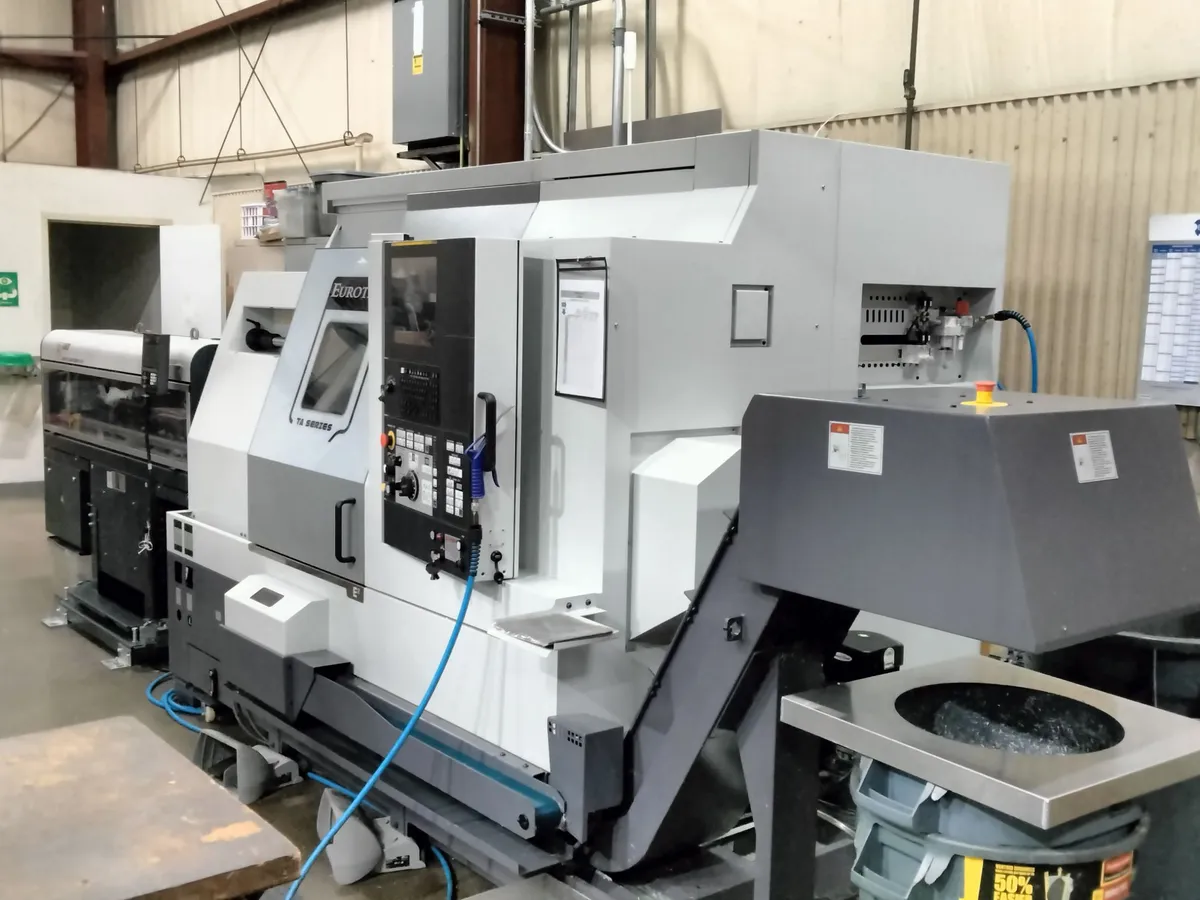

2022 Eurotech CMZ TA-20-YS-640. Like New Condition, ~$60,000 Tooling package
Maximum diameter of swinging over bed (mm) 760 / 29.9"
Maximum diameter of swinging over slides (mm) 600 / 23.6"
Maximum turning diameter (mm) 460 / 18.1"
Distance between center of spindles (mm) 649 / 25.5"
X-axis travel (mm) 310 / 12.2"
Z-axis travel (mm) 640 / 25.1"
Y-axis travel (mm) +70 -50 / +2.7" - 1.9"
B-axis travel (mm) +70-50 / +2.7" - 1.9"
Fast feedrate X (m/min) 30
Fast feedrate Z (m/min) 30
Fast feedrate Y (m/min) 15
Fast feedrate B (m/min) 30
Axis acceleration 1g=9,8 m/s2
SPINDLE
Maximum speed (rpm) 4000
Bearing outside diameter (mm) 170 / 6.6"
Bearing inside diameter (mm) 110 / 4.3"
Spindle nose ASA 6’’A2
Spindle inside diameter (mm) 73 / 2.87"
Maximum bar diameter (mm) 66 / 2.59"
Chuck diameter (mm) 210 / 8.26"
Chuck bore (mm) 66 / 2.59"
Spindle power (kW) (max./S6 40%)
Turning torque (Nm) 366 (max) 286 (S6 40%)
SUBSPINDLE
Maximum speed (rpm) 4500
Bearing outside diameter (mm) 150 / 5.9"
Bearing inside diameter (mm) 100 / 3.93"
Spindle nose ASA 6’’A2
Spindle inside diameter (mm) 61 / 2.4"
Bar diameter (mm) 52 / 2.04"
Chuck diameter (mm) 175 / 6.88"
Chuck bore (mm) 56 / 2.2"
Power (kW) (max./ S6 40%) 14/8
Turning torque (Nm) (max./S6 40%) 292/153
TURRET
Number of positions 15
Section of tools (mm) 25x25 (Ø50)
Changing time 30º 0,2s-180º 0,5s
Interlocking force at 45 bar (kgf) 5090
DRIVEN TOOLS
Number of driven tools 12
Turning speed (rpm) 12000
Power (kW) (max./S1) 11,3/8,1
Maximum torque (Nm) 75
MISC.
Coolant tank Lateral (litres) 230
Coolant tank Rear (litres) 200
Hydraulic oil tank (litres) 10
Lubrication oil tank (litres) 4
Total weight (kg) 7500
Dimensions (mm) 2542x1760x2120
2022 LNS QLS S3 Barfeeder
Barfeed interface - Unimag
Transformer 51KVA
Fanuc 32iTB with 15 " touch screen and new iHMI
G codes type A in Fanuc control
N-55 15 position turret
Removable tool presetter
Tool life management function
Tool load monitoring function
Air blow over main spindle
Coolant through subspindle
High pressure coolant
Coolant filter 250μm with scraper type cleaning system
Side exit chip conveyor
Machine status indicator light
Pneumatic, automatic, programmable parts catcher with conveyor
Parts ejector for subspindle (Pneumatic type) with adjustable stroke of 100mm
TTL/10400/02 Axial driven toolholder ER32 with internal coolant 70bar (12000rpm)
TTL/10400/05 Radial driven toolholder ER32 (12000rpm)
~$60,000 Tooling Package
Hours:
Power on 1190 hrs
Runtime 273 hrs
Cutting 153 hrs
*Specifications Subject to Buyer Verification.
