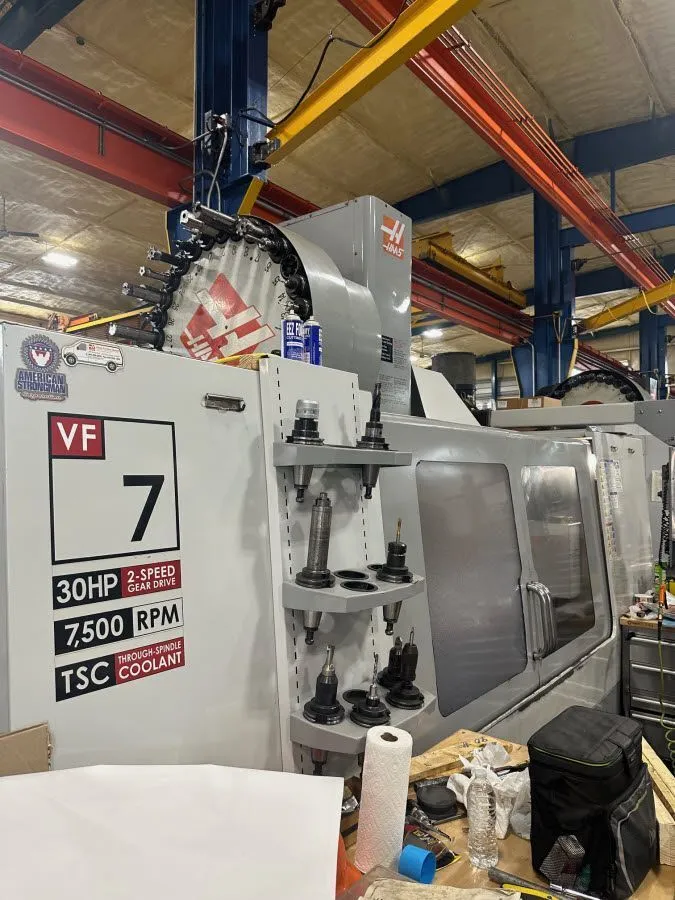

Used 2007 HAAS VF-7/50 | Vertical Machining Centers

X Axis Travel 84"
Y Axis Travel 32"
Z Axis Travel 30"
Spindle Nose to Table (~ min) 4"
Spindle Nose to Table (~ max) 34"
Table Size 84” x 28”
T-Slot Width 5/8"
T-Slot Center Distance 4.92"
Number of Std T-Slots 5
Max Weight on Table (evenly distributed) 4000 lb
Spindle Max Rating 30 HP
Max Spindle Speed 7500 RPM
Taper 50
Rapids on X, Y & Z 600 IPM
Max Cutting 500 IPM
ATC Type SMTC
Capacity 30+1
Max Tool Diameter (adjacent empty) 6"
Max Tool Diameter (full) 3"
Max Tool Length (from gage line) 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
