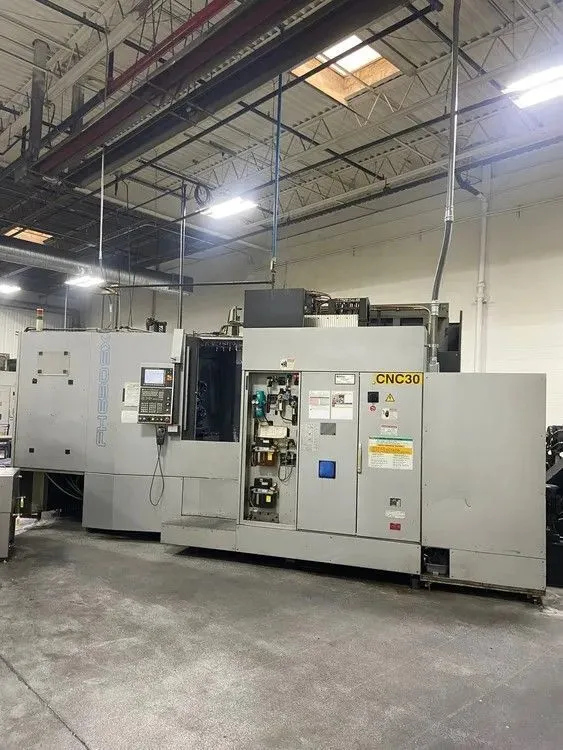

Used 2008 TOYODA FH630SX | HMC (3-4 AXIS)

Spindle
Spindle speed 50-15,000 min-1
Spindle taper Taper 50
Front bearing Ø (mm) Ø 110
Output (kW) 30 min ED / continuous 30.0 / 22.0 (6,000 min-1) min-1)
Output (HP) 30 min ED / continuous 40.2 / 29.5 (6,000 min-1) min-1)

Work Area
Axis stroke X (column) 1,000 mm / 39.37"
Axis stroke Y (spindle head) 800 mm / 31.49"
Axis stroke Z (table) 850 mm / 33.46
Spindle nose ➔ table center 200 ~ 1,050 mm / 7.87 ~ 41.33"
Spindle nose ➔ pallet surface 100 ~ 900 mm / 3.93 ~ 35.43"
Workpiece (swing diameter x height) Ø 1,000 x 1,000 mm / 39.37 x 39.37"

Pallet changer and table
Number of pallets 2
Dimensions 630 x 630 mm / 24.8 x 24.8"
Indexing angle NC-table: 0.001°
Indexing time, 0–90° 2.0 s
Pallet height from floor 1,200 mm / 47.24"
Pallet change time 12.0 s
Max. load on pallet 800 kg / 1,763.7 lbs

Automatic tool changer
Tool holding capacity 60
Tool selection Absolute address
Max. tool weight 27 kg / 59.52 lbs
Max. tool dimensions (Ø x length) mm Ø120 x 545 / 4.72 x 21.45"
Tool changing time, tool to tool 2.4 – 2.7 s
Tool changing time, chip to chip 3.6– 3.9 s
