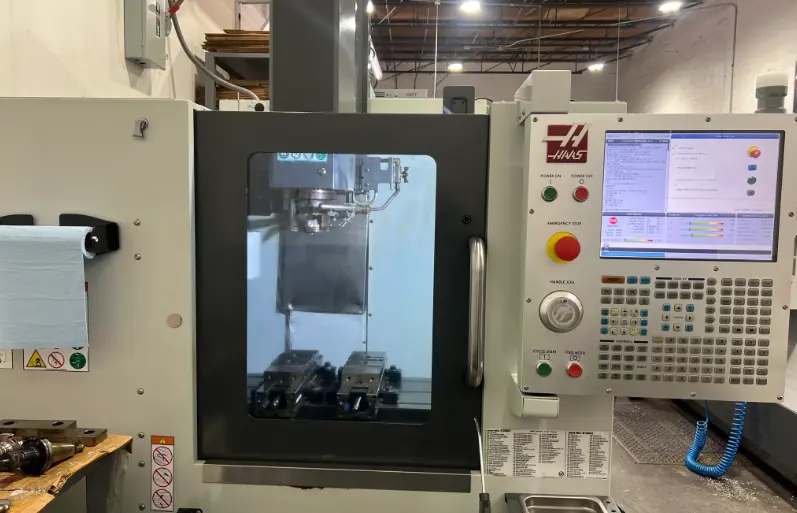

Used 2019 HAAS MINI MILL | Vertical Machining Centers

Travels
X Axis 16.00 in / 406 mm
Y Axis 12.00 in / 305 mm
Z Axis 10.00 in / 254 mm
Spindle Nose to Table (~ max) 14.0 in / 356 mm
Spindle Nose to Table (~ min) 4.0 in / 102 mm
Spindle
Max Rating 7.5 hp / 5.6 kW
Max Speed 6000 rpm
Max Torque 33 ft-lbf @ 1200 rpm / 45 Nm @ 1200 rpm
Taper CT 40
Table
Length 36.0 in / 914 mm
Width 12.0 in / 305 mm
T-Slot Width 5/8 in / 16mm
T-Slot Center Distance 4.33 in / 110 mm
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 500 lb / 227 kg
Feedrates
Max Cutting 500 ipm / 12.7 m/min
Rapids on X 600 ipm / 15.2 m/min
Rapids on Y 600 ipm / 15.2 m/min
Rapids on Z 600 ipm / 15.2 m/min
Axis Motors
Max Thrust X 2000 lbf / 8896 N
Max Thrust Y 2000 lbf / 8896 N
Max Thrust Z 2000 lbf / 8896 N
Tool Changer
Type Carousel
Capacity 10
Max Tool Diameter 3.5 in / 89 mm
Max Tool Weight 12.0 lb / 5.4 kg
Tool-to-Tool (avg) 4.20 s
Chip-to-Chip (avg) 5.00 s
Machine Weight 4000 lbs / 1814 kg
