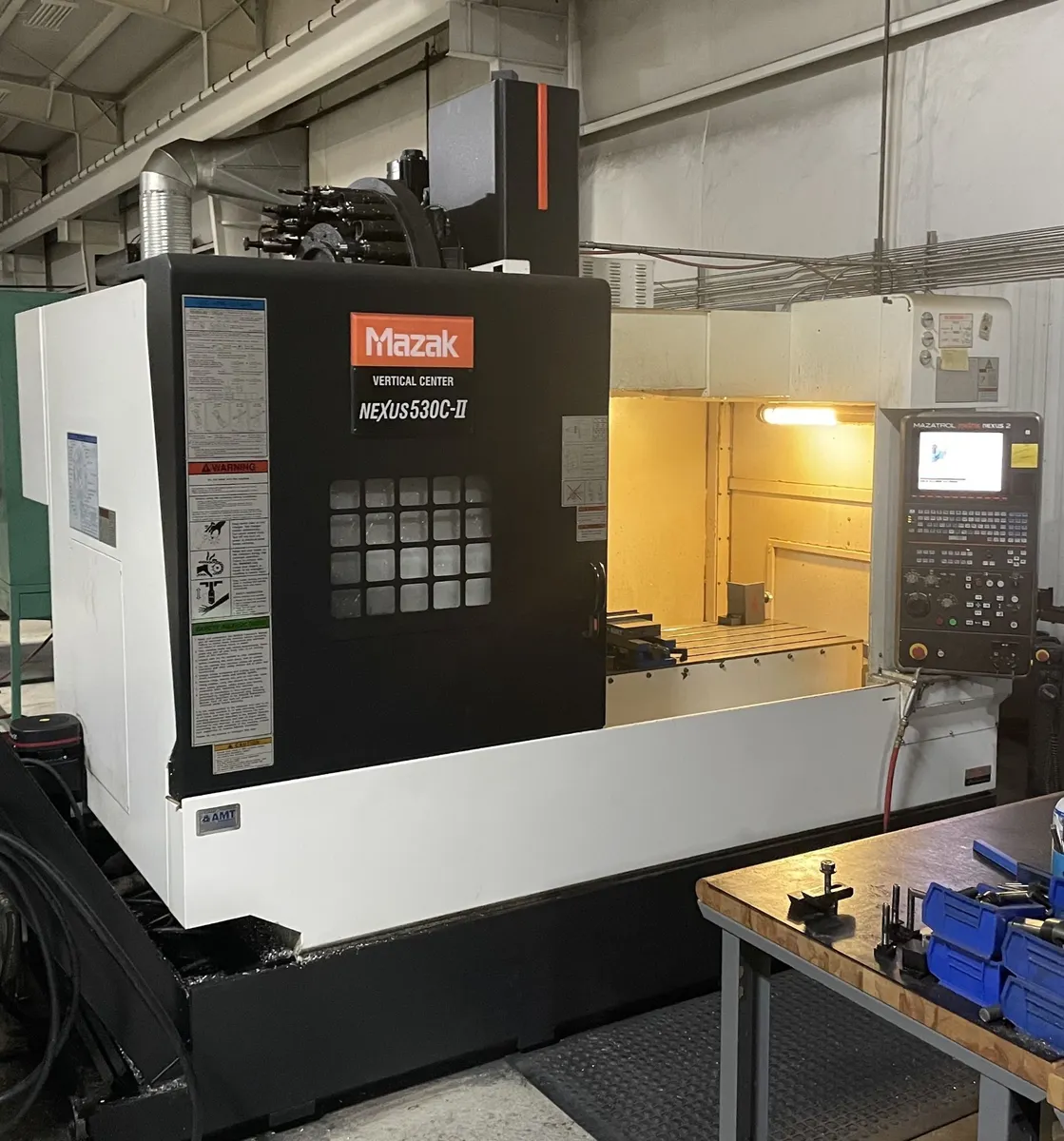

Used 2013 MAZAK NEXUS VCN 530CII | Vertical Machining Centers

Travels:
X-Axis: 41.3″
Y-Axis: 20.9″
Z-Axis: 20.1″
Rapid Traverse Rates Axis: 1645 IPM
Cutting Feed Rates: 987 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″

Table
Length: 51.18″
Width: 21.65″
Max Weight on Table: 2646 lbs

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.25″ – 4.92″
Max Tool Length: 13.78″
Tool Changing Time : 1.3 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: ” x x ” High
Weight: 15,180 lbs
