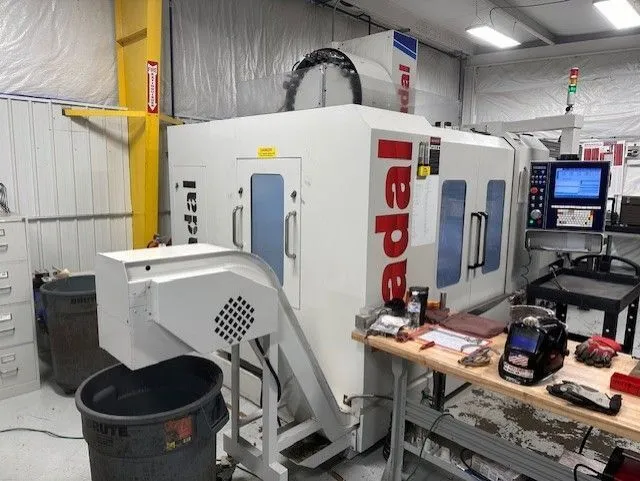

2019 Fadal 4020B-II with Automatic Pallet Changer

Travel
X-axis Travel (in.) 40
Y-axis Travel (in.) 20
Z-axis Travel (in.) 20
Spindle Nose to Table (in.) 5-25
Spindle Center to Column (in.) 21.25
Table
Table Dimensions (in.) 47.25 x 19.75
T-Slot Dimensions (in.) (5) 3.75 x .709 x 1.25
Max. Table Load (lbs.) 1,320
Spindle
Spindle Type CAT-40
Spindle Speed (RPM) 10,000
Feed
Rapid Traverse Rate X,Y & Z (IPM) 1,000 / 1,000 / 1,000
Ballscrew Diameter X,Y & Z Axis (mm) 40
ATC
Tool Capacity 24
Tool Change Type Dual Arm
Max. Tool Weight (lbs.) 15
Max. Tool Diameter (in.) (with adjacent tool) 4.9 (3.1)
Max. Tool Length (in.) 13.5
Tool Selection Method Random
Other
Machine Dimensions L x W x H (in.) 109 x 87 x 110
W/ Chip Conveyor 155 x 87 x 110
Machine Weight (lbs.) 12,140
