Samsung SMEC SL 80C / 3200
Have one to sell?
ConditionUsed
1 available

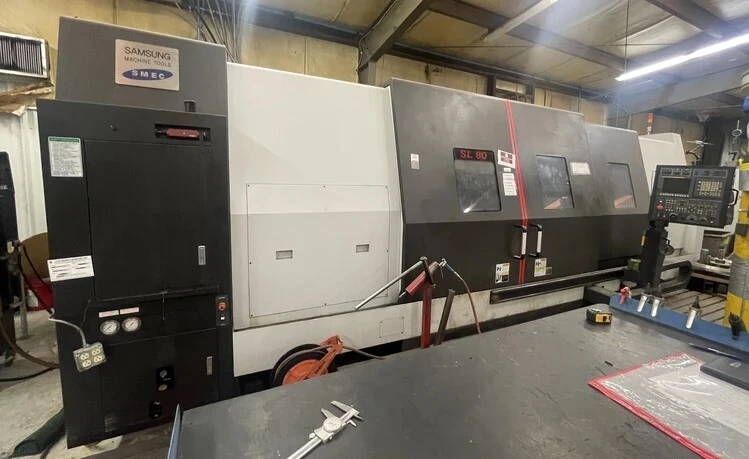

Samsung SMEC SL 80C / 3200 installed new in 2018
Swing over the bed 40.6
Max. turning diameter 35.4
Axis travel(X/Z) 18.5/128.74
Rapid traverse(X/Y) 472/394
Max. turning length 126
Chuck size 32”
Bar Capacity 14.37
Spindle speed 300
Spindle nose(Main/Sub) A2-20
Main Spindle motor(cont./30min) 50/60
Number of tool positions 12(BMT85)
Shank size for square tool 1.25
Shank size for boring bar 3.0
Tailstock Travel(quill) 128.74
Floor Space(L×W) 291×109
Machine weight 48,500

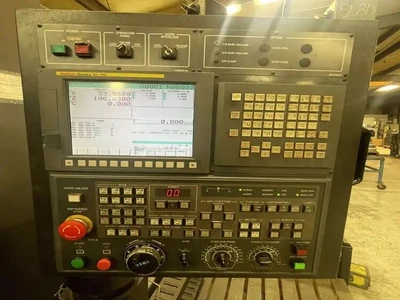

Controller Fanuc Oi-TF
Tool presetting system (tool presetter)
Lubrication system
Rigid tapping on main spindle
Profluid Oil Cooler (Spindle Chiller)
145 PSI Coolant Pump
Programmable Tailstock (MT #6)
Chip Conveyor - Side Discharge
CHUCKS
(2) 4 Jaw, 32" Diameter, A2-20, Forged Steel, Extra Heavy Duty, Oil County, Manual Independent Lathe Chuck, 14.75” Through Hole
STEADYREST
RIP-225 - "Pass Thru" Manual Steady Rest (6.1" - 25" Capacity)
*Specifications Subject to Buyer Verification.
