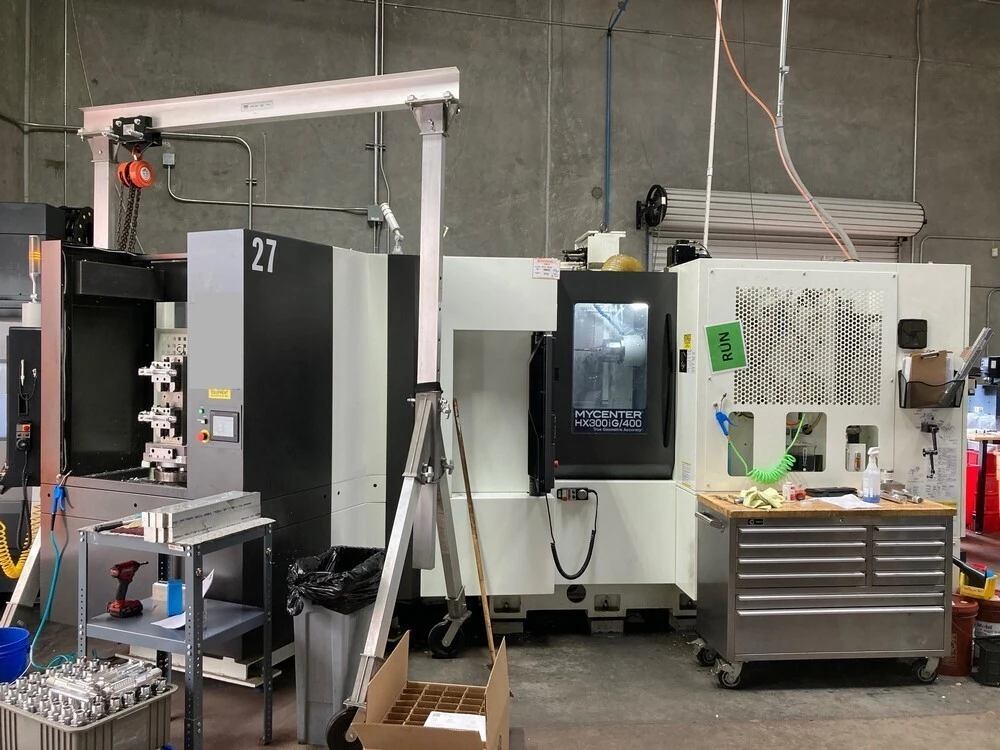

Used 2020 KITAMURA MYCENTER HX300IG | HMC (3-4 AXIS)

Table Table Size 305 x 305mm (12”x 12”)
Maximum Table Load 250kg (550Lbs.)
Max. Work Piece Diameter Ø500mm (Ø19.7”)
Max. Work Piece Height 745mm (29.3”)
Travels
X-Axis Travel 460mm (18.1”)
Y-Axis Travel 510mm (20”)
Z-Axis Travel 560mm (22”)
B-Axis Travel 0-360°/Full 4th Axis
Spindle Spindle Taper #40
Spindle Speed 15,000min̄¹
Drive Method Direct Drive
Spindle Motor AC/15 min 22kW (30HP)
Feed Rapid Feed X, Y, Z 60m/min (2,362ipm)
Cutting Feed Rate X, Y, Z 60m/min (2,362ipm)
Rapid Feed (B Axis) 45,000 deg./min (125min̄¹)
APC Number of Pallets 8 APC
ATC Tool Storage Capacity 110
Max. Tool Dia. Ø95mm (Ø3.7”)
With Adjacent Pots Empty Ø150mm (Ø5.9”)
Max. Tool Length 350mm (13.78”)
Max. Tool Weight 10kg (22 Lbs.)
Tool Change Time (T-T) 1.3 Seconds
