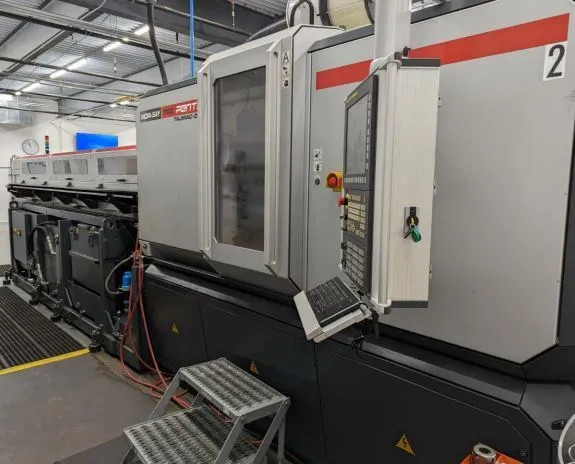

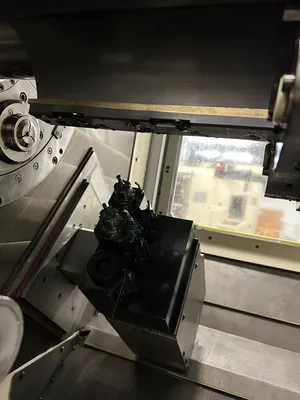

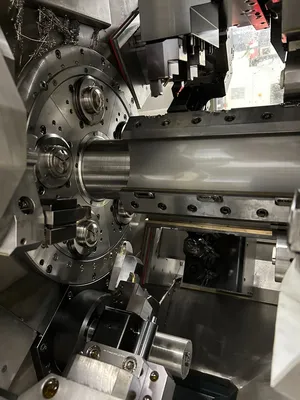

2020 Mori-Say TMZ 518 CNC Penta Multi Spindle Automatic Lathe

TMZ 518 CNC Penta

Maximum Bar Diameter
with Hainbuch collets 18 mm
with Davenport collets 19 mm
with Pull System 25 mm

Bar Stock Dimension
- Circular Section 25 mm 0.984 in
- Hexagonal Section 21.7mm 0.854 in
- Max. Stock Length 4,000 mm 157.48 in

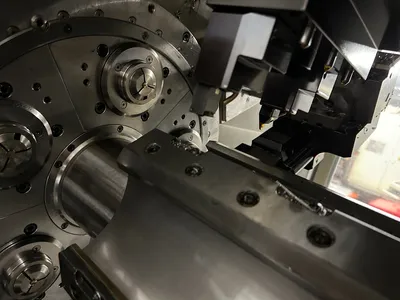

SP1- SP5 Axes Spindles
- Number 5
- Max. Speed 8,000 rpm
- Nominal Power 3.7 kw
Idle Time - Tz: 0.4 s

W1 - W4, Z5 Axes Longitudinal Slide Drives
- Max. Working Stroke 250 mm 9.843 in
- Motor / Ball Screw Ratio 1
- Ball Screw Lead 10 mm 0.394 in

X1 - X4, Z1 - Z4 Axes Compound Slide
- Number (Station I, II, III, IV, V) 4
- Stroke in Longitudinal Direction - Z1 - Z5 Axes 130 mm 5.118 in
- Stroke in Cross Direction - X1 - X5 Axes 70 mm 2.756 in

U5 Axis Cutting Off Slide
- Stroke 75 mm 2.953 in
- Ball Screw Lead 5 mm 0.197 in

X5 Axis Pick - Up Tool Slide, ( Y5 Axis Option)
- Stroke in Cross Direction - X5 Axis 75 mm 2.953 in
- Stroke - Y5 Axis (Option) 135 mm 5.315 in
- Max. Number of Tools 3
- Max. Number of Fixed Tools 3
- Max Number of Rotary Tools 3

S01 - S05 Axes Counter -Spindles
- Number 5
- Max. Speed 8,000 rpm
- High-Speed Drilling and Reaming Torque 9 Nm

Machine Control
Fanuc Controls - Capable of Communicating with AB Factory Talk Hardware

Machine Dimensions:
Total Machine Length (with 4m barloader) 8,351 mm 328.780 in
Machine Height 2,329 mm 91.693 in
Machine Width 1,820 mm 71.654 in

Machine Utility Requirements:
- Electrical Requirements 400V
- Air Requirements 10 Bar 145 psi
- Cutting Fluid Oil
