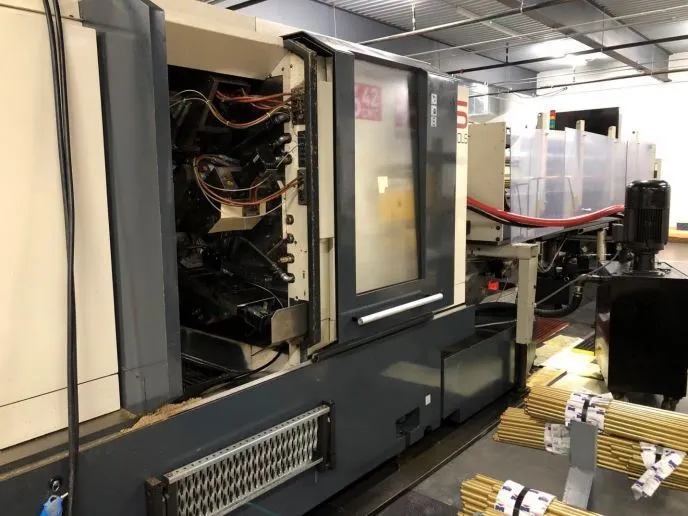

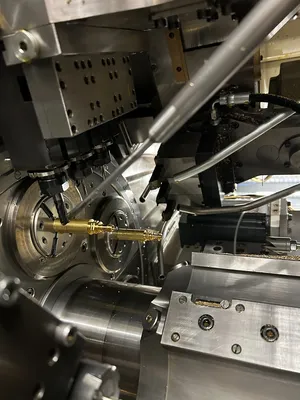

2011 / 2020 Mori-Say TMZ 642 CNC Multi Spindle Lathe

TMZ 642 CNC - 2011 (Refurbished by Tajmac/ZPS in 2020)

Bar stock dimension: Stock Reel/bar loader
- Circular section 46/52 mm 1.81/2.04 in
- Hexagonal section 38/42 mm 1.49/1.65 in
- Max. stock length 4,000 mm 157.48 in
- Max. length of stock feeding 150 mm 5.90 in

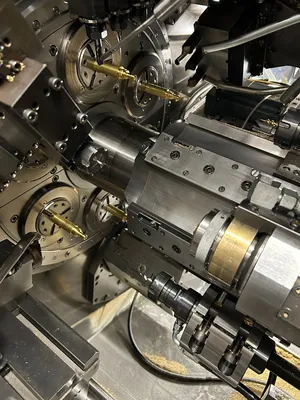

SP1 - SP6 axes spindles
- Number 6
- Pitch diameter 340 mm 13.38 in
- Max. speed 6,000 rpm
- Nominal power 7 / op 10.5 kW
- Torque Mm on machine spindle at 1,000 rpm 66.8 Nm
- Motor/spindle gear ratio 2

Idle time - Tz: 0.7 - 1.6 s

W1 - WS, 26 axes longitudinal slide drives
- Number 6
- Max. speed 30 m/min
- Max. force 3,400 N
- Max. working stroke 250 mm 9.84 in
- Motor/ball screw ratio 1
- Ball screw lead 10 mm .039 in

Longitudinal slides guiding (hexagon)
- Resetting 60 mm 2.36 in
X1 - XS, 21 - 25 axes compound sIides
- Number (stations I,II,11I,IV,V) 5
- Max. speed in both longitudinal and cross direction 15 mmin·1
- Stroke in longitudinal direction - Z1 - Z5 axes 120 mm 4.72 in
- Max. force in longitudinal direction - Z1 - Z5 axes 3,700 N
- Stroke in cross direction - X1 - X5 axes 80 mm 3.15 in
- Max. force in cross direction - X1 - X2 axes 3,700 N
- Max. force in cross direction - X3 - X5 axes 2,900 N
- Ball screw lead 5 mm .19 in

U6 axis cutting off slide
- Max. speed 15 mmin·1
- Max. force 2,900 N
- Stroke 55 mm 2.16 in
- Ball screw lead 5 mm .19 in

X6 axis PICK - UP tool slide, (Y6 axis option)
- Max. speed in cross direction - X6 axis 15 mmin·1
- Stroke in cross direction - X6 axis 75 mm 2.95 in
- Max. force in cross direction - X6 axis 2,900 N
- Stroke - Y6 axis (option) 106 mm 4.17 in
- Max. number of tools 3
- Max. number of fixed tools 3
- Max. number of rotary tools 3
- Ball screw lead 5 mm .19 in

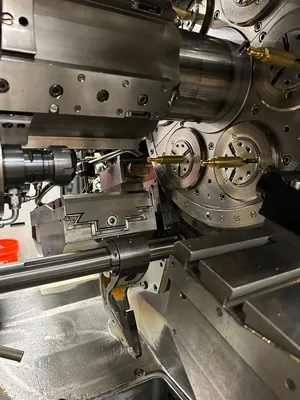

S01 - S06 axes counter-spindles
- Number 6
- Max. speed 6,000 rpm
- High-speed drilling and reaming torque 9 Nm
- Thread cutting device and PICK-UP torque 20 Nm
- Motor/axial tool gear ratio 1

Longitudinal necking down drive
- Number 5
- Max. speed 30 mmin-1
- Max. force 2,200 N
- Max. working stroke 250 mm 9.84 in
- Motor/ball screw gear ratio 1
- Ball screw lead 10 mm .39 in

Parts catcher manipulator
-Arm turning angle 138°
- Feed in longitudinal direction 225 mm 8.85 in
- Grab pulling-out 125 mm 4.92 in
- Grab jaws opening 10 mm .39 in
- Max. component weight 0.5 kg 1.1 lbs

Drives of auxiliary functions
- Motor/cam shaft gear ratio 26

Machine dimensions:
Spindle drum axis height above floor 1,369 mm 53.89 in
Total machine length
- with stock carriage without electric cabinet 6,428 mm 253.07 in
- without stock carriage without electric cabinet 3,696 mm 156.25 in
Machine height 2,719 mm 107.04 in
Machine width 1,914 mm 75.35 in
Machine weight (without stock carriage and chip conveyor with settling tank, 24 controlled axes, without options and oil fillings) 10,750 kg 23,699 lbs

Electric cabinet weight 1,000 kg 2204.62 lbs
Settling tank weight 270 kg 595.24 lbs
Chip conveyor weight 80 kg 176.37 lbs
