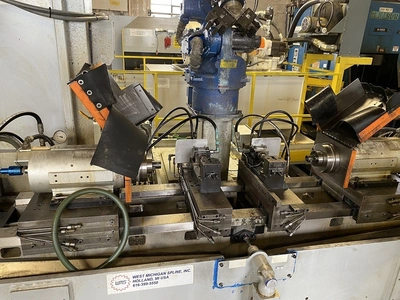

Used 2018 WEST MICHIGAN SPLINE 32E | Facing & Centering Machines

Length Capacity (range): 6” – 32” (CAN BE INCREASED TO 42” LENGTH BY RELOCATING DRILL/MILL HEADS ON THE SECOND BOLT PATTERN LOCATED ON THE SLIDES)
Diameter Capacity (range): 0.5” – 4.0”
Cycle Time: 14 – 20 Seconds
Spindle HP: 5 HP @ 3600 RPM
PLC Based Servo Controls
Auto Length Adjustment
Hydraulic Power Unit: 5 Gallons
Power, Main Motor: 5 HP / 1750 RPM
Electrics: 230-460 Volt / 3 Phase / 60 Cycle / FLA: 12.4-6.18

Overall Machine Dimensions (approx.): 136” x 72” x 60” Tall
System Weights (approx.):
Machine & Robot Weight: 18,515 lbs.
Hydraulic Power Unit: 80 lbs.
Chip Conveyor, Coolant Tank: 700 lbs.
Unload Chutes: 1,850 lbs.

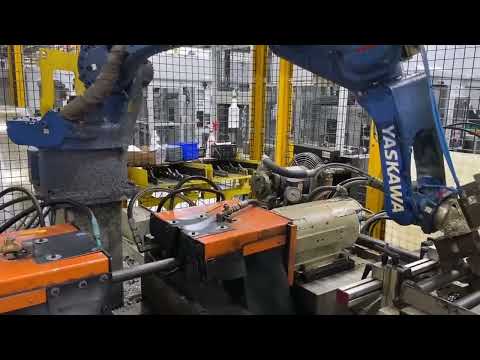

YASKAWA MH12 ROBOT INCLUDED, 12 kg (26.5 lb) PAYLOAD CAPACITY, DX200 CONTROLLER
