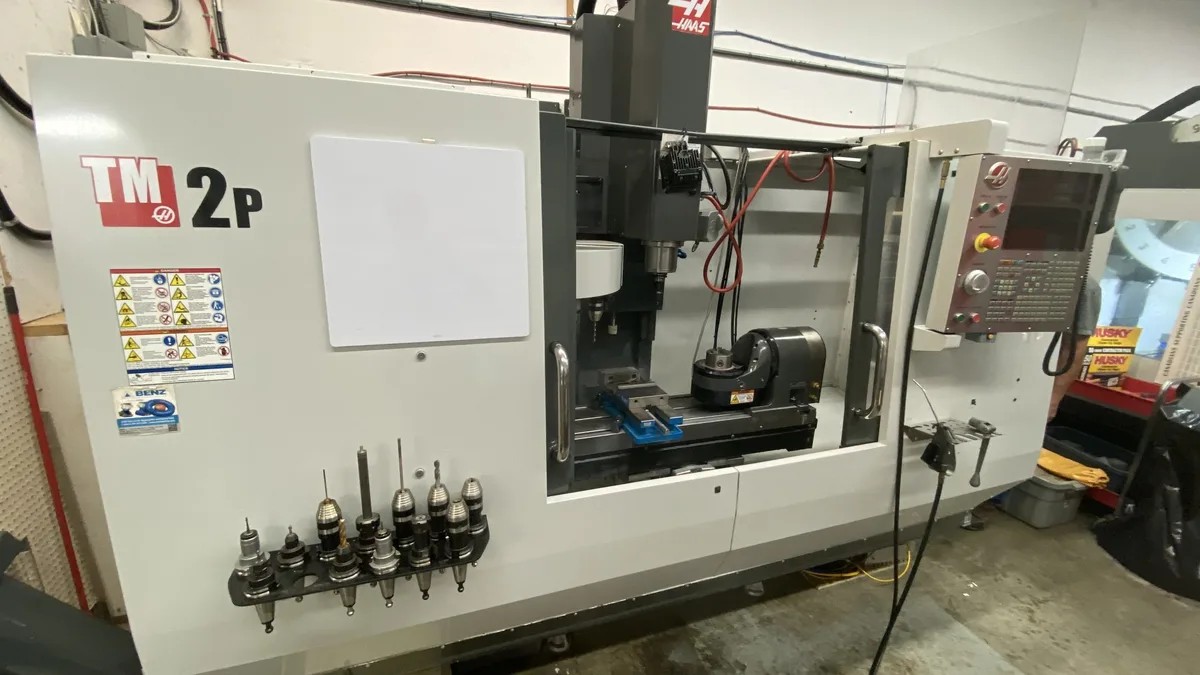

2015 Haas TM-2P with 5th-Axis Rotary

TRAVELS
X Axis 40.0 in 1016 mm
Y Axis 16.0 in 406 mm
Z Axis 16.0 in 406 mm
Spindle Nose to Table (~ max) 20.0 in 508 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
SPINDLE
Max Rating 7.5 hp 5.6 kW
Max Speed 6000 rpm
Max Torque 33.0 ft-lbf @ 1200 rpm 45.0 Nm @ 1200 rpm
Drive System Direct Speed, Belt Drive
Taper CT 40
TABLE
Length 57.8 in 1466 mm
Width 10.5 in 267 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.00 in 102 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 350 lb 159 kg
FEEDRATES
Max Cutting 400 ipm 10.2 m/min
Rapids on X 400 ipm 10.2 m/min
Rapids on Y 400 ipm 10.2 m/min
Rapids on Z 400 ipm 10.2 m/min
AXIS MOTORS
Max Thrust X 2000 lbf 8896 N
Max Thrust Y 2000 lbf 8896 N
Max Thrust Z 2000 lbf 8896 N
TOOL CHANGER
Type Carousel
Capacity 20
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 5.7 s
Chip-to-Chip (avg) 6.5 s
AIR REQUIREMENTS
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi 5.5 bar
