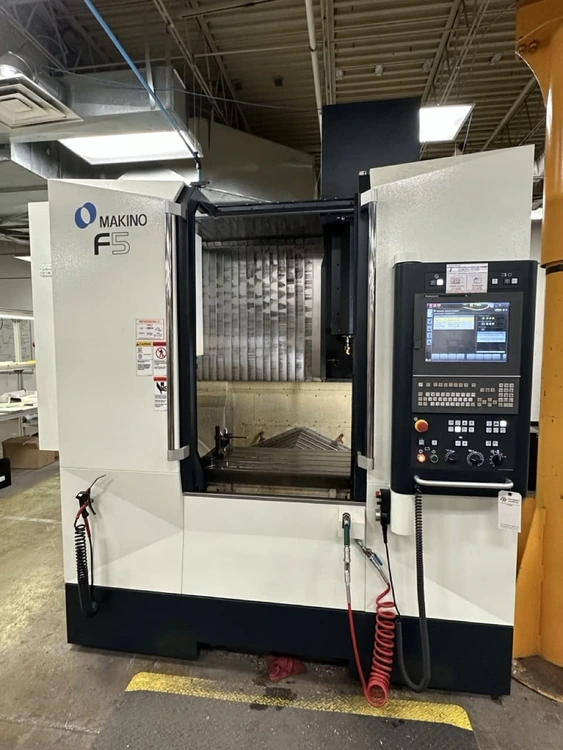

Used 2021 MAKINO F5 | Vertical Machining Centers

Have one to sell?
480-524-1767
Info@productionasset.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAKINO
Model:
F5
Year:
2021
Stock #:
9061
Status:
For Sale
X35.4"899.16 mm
Y19.7"500.38 mm
Z17.7"449.58 mm
RPM20,000 RPM20,000 RPM
# ATC3030
Table-W19.7"500.38 mm
Table-L39.4"1,000.8 mm
# Axis33
ControlCNC (Makino Professional 6)CNC (Makino Professional 6)

Table: 39.4" x 19.7"
Maximum Payload: 2,204 lbs
Travels X: 35.4" Y: 19.7" Z: 17.7"
Maximum Workpiece: 39.4" x 19.7" x 17.7"
Spindle RPM: 20,000 RPM
Spindle Taper: HSK-A63
Rapid Traverse: 787 ipm
Cutting Feedrate: 787 ipm
ATC Capacity: 30
Maximum Tool Diameter: 4.72"
Maximum Tool Weight: 17.6 lbs

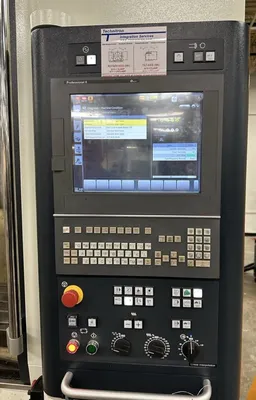

Makino Professional 6 Control
Renishaw OMP400 Probe
Renishaw NC4+ Laser Tool Setter
Jorgensen Conveyor
ChipBlaster D30/35 TSC
ChipBlaster MB300 Mist Collector
OilMatic Oil Temp Regulator
Air Dryer

*Specifications subject to buyer verification.
