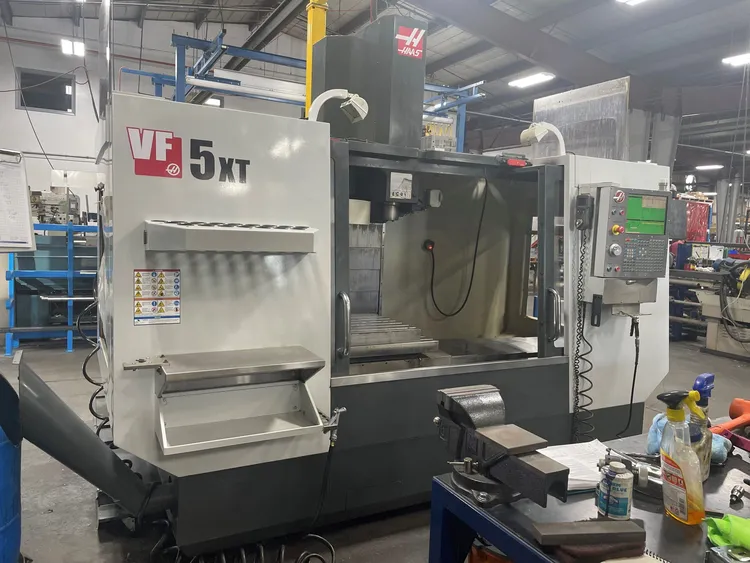

Used 2012 HAAS VF-5/40XT | Vertical Machining Centers

TRAVELS
X Axis 60.0 in 1524 mm
Y Axis 26.0 in 660 mm
Z Axis 25.0 in 635 mm
Spindle Nose to Table (~ max) 32 in 813 mm
Spindle Nose to Table (~ min) 7 in 178 mm

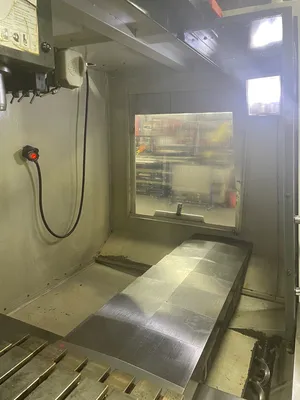

TABLE
Length 62.0 in 1575 mm
Width 23.0 in 584 mm
T-Slot Width 5/8 in 16 mm
T-Slot Center Distance 3.15 in 80 mm
Max Weight on Table (evenly distributed) 4000 lb 1814 kg

SPINDLE
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline
Taper CT40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

AXIS MOTORS
Max Cutting 500 ipm 12.7 m/min
Rapids on X 540 ipm 13.7 m/min
Rapids on Y 710 ipm 18.0 m/min
Rapids on Z 710 ipm 18.0 m/min
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 3400 lbf 15124 N
Max Thrust Z 5600 lbf 24910 N

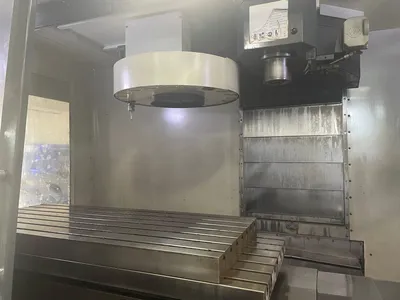

TOOL CHANGER
Type Carousel
Capacity 24+1
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 4.20 s 4.2 s
Chip-to-Chip (avg) 4.50 s 4.5 s

Machine Weight 15,150 lb 6,872kg
