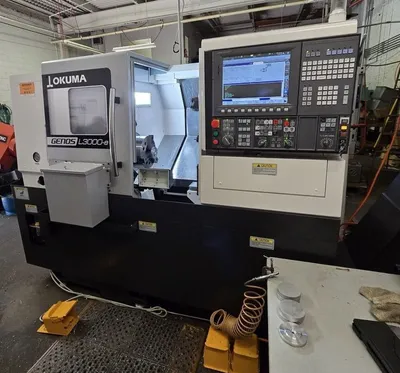

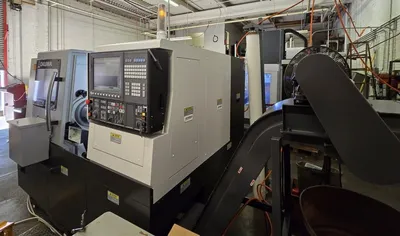

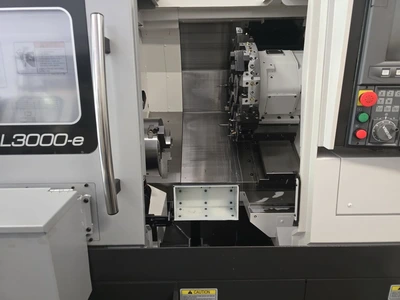

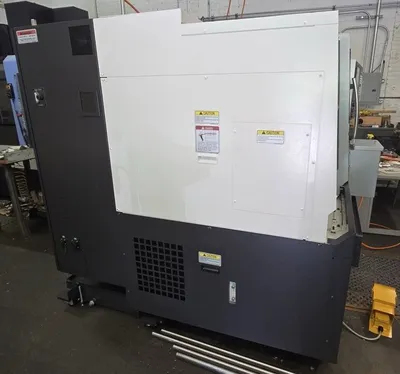

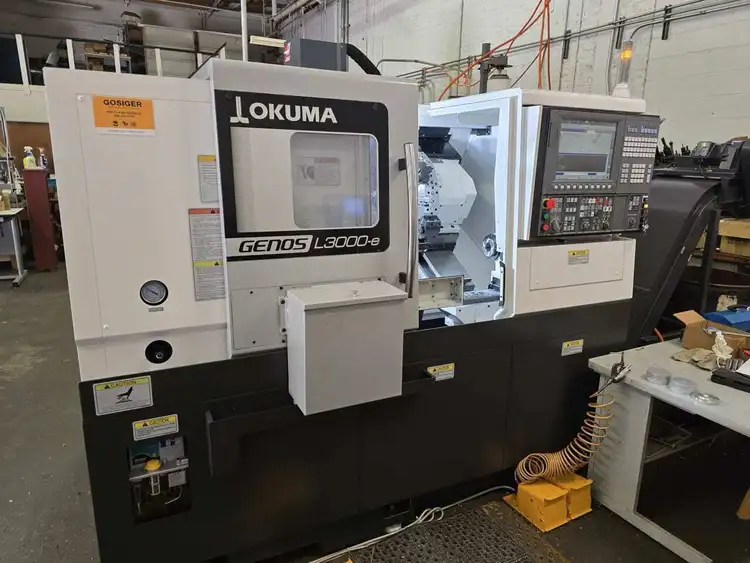

Used 2023 OKUMA GENOS L3000-E | CNC LATHE

Capacity
Swing over bed mm (in) ø520 (20.47)
Swing over saddle mm (in) ø400 (15.75)
Max turning dia mm (in) ø340 (13.39)
Max work length mm (in) 500 (19.69)

Travels
X axis mm (in) 235 (9.25)
Z axis mm (in) 520 (20.47)

Spindle
Spindle speed min-1 38 to 3,800
Speed ranges 2 auto ranges (2 range motor coil switching)
Spindle nose type JIS A2-8
Spindle bore dia mm (in) ø80 (3.15)
Front bearing dia mm (in) ø120 (4.72)

Turret
Type V12
No. of tools tool in 12
OD tool shank in 1 square
ID tool shank dia ø1-1/2
Turret indexing time sec/index 0.3/1 index

Feed rates
Rapid traverse m/min (fpm) X: 25 (82.03), Z: 30 (98.43)
Rapid traverse (tailstock) m/min (fpm) 12 (39.37)

Tailstock
Tapered bore type MT No.5 (revolving center)
Tailstock travel mm (in) 400 (15.75)

Motors
Main spindle kW (hp) 22/15 (20 min/cont) (30/20)
Axis drive (X) kW (hp) 2.8 (3.7)
Axis drive (Z) kW (hp) 3.5 (4.7)
Tailstock travel kW (hp) 2.9 (3.9)
Coolant motor (50/60 Hz) kW (hp) 0.55 (3/4) / 0.75 (1)

Machine Size
Height mm (in) 1,791 (70.51)
Floor space (tank included) mm×mm (in) 2,280 × 1,870 (89.76 × 73.62)
Weight kg (lb) 4,700 (10,340)
