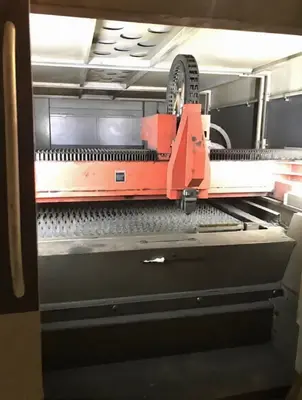

Used 2016 BYSTRONIC BYSMART FIBER 3015 | Laser Cutters

Nominal sheet size
x 3000 mm
y 1500 mm
Cutting area
x 3150 mm
y 1620 mm
z 65 mm
Maximum positioning speed parallel axis x, y 100 m/min
Maximum simultaneous positioning speed 140 m/min
Positioning accuracy Pa* ± 0,1 mm
Repeatability Ps* ± 0,05 mm
Edge detection accuracy ± 0,5 mm
Maximum workpiece weight 750 kg
Machine weight** 13000 kg
Operation via panel ByVision Touchscreen and manual control unit

Power 2000 W
Control range 200–2000 W
Wavelength Fiber
Maximum sheet thicknesses***
Steel (max. cutting sheet thickness) 12 mm
Stainless steel (max. cutting sheet thickness) 6 mm
Aluminum (max. cutting sheet thickness) 8 mm
Copper (max. sheet thickness) 3 mm
Brass (max. sheet thickness) 4 mm
Total electrical consumption of system**** 17,3 kW

*** In order to cut the maximum thicknesses, the following conditions must be met
– optimally maintained and adjusted laser cutting systems
