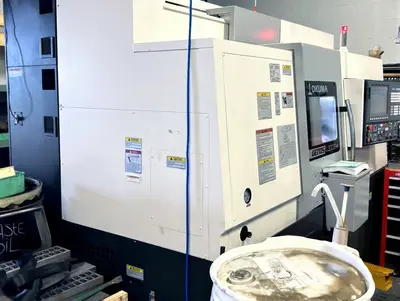

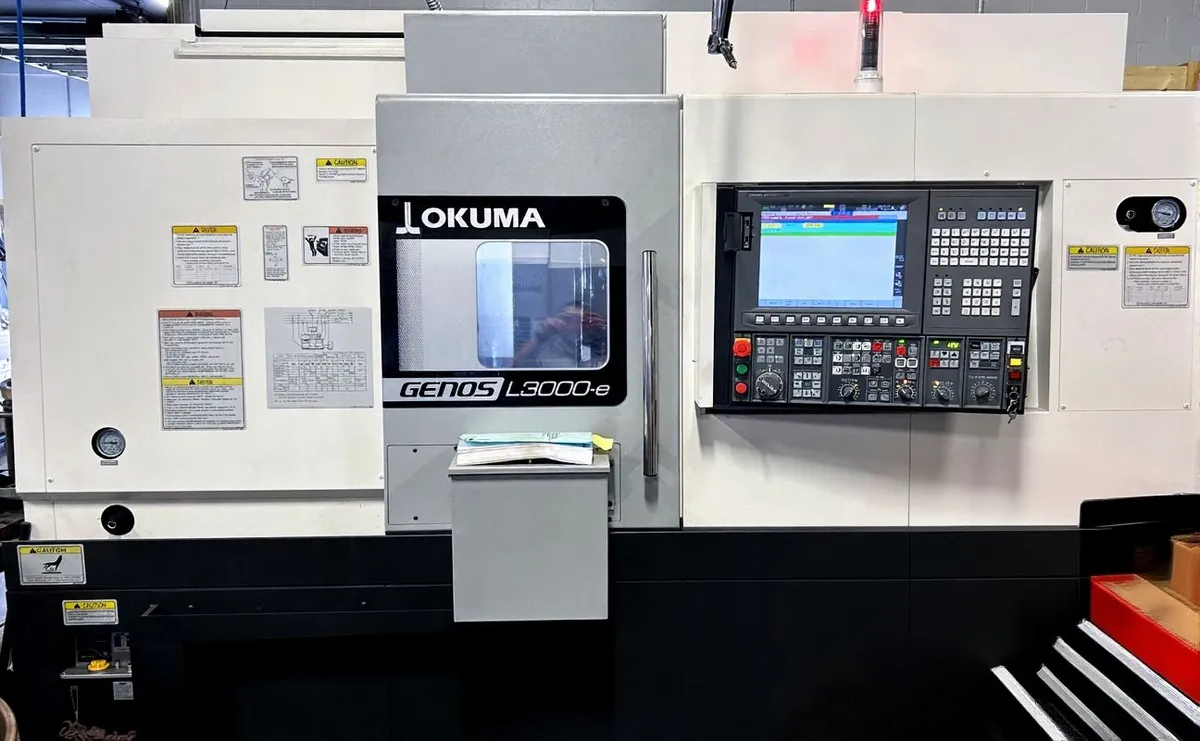

Used 2023 OKUMA GENOS L3000MYW | CNC LATHE

Capacity
Swing over bed mm (in) ø520 (ø20.47)
Swing over saddle mm (in) ø400 (ø15.75)
Max turning dia mm (in) ø390 (ø15.35)
Max work length mm (in) ø950 (ø37.40)
Travels
X axis mm (in) ø235 (ø9.25)
Z axis mm (in) ø1,074 (ø42.28)
Y axis mm (in) ø100 (3.94) (ø+-50 (1.97)
C axis control angle deg 360 (0.001)

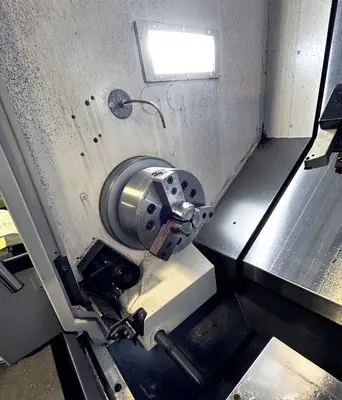

Spindle
Spindle speed min-1 38-3,800
Spindle nose type JIS A2-8
Spindle bore dia mm (in) ø80 (ø3.15)
Front bearing dia mm (in) ø120 (ø4.72)
Sub-Spindle
Speed min-1 50-6,000
Bore dia mm (in) ø53 (2.09)

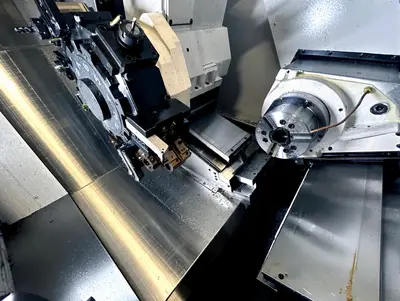

Turret Multitasking V12 Radial
Type
No. of tools L / M: 12
Turret indexing time sec/index 0.1/1 Index
Milling Tool
Spindle speed min-1 Radial 45-6,000
Speed range Infinitely variable
Feed Rates m/min (ipm) X: 25, Z: 30, Y: 10 (82.03, 98.43 , 32.81)
Rapid traverse m/min (ipm) 12 (39.37)
Rapid traverse (C) min-1 200
Motors
Main spindle kW (hp) (20 min/cont) kW (hp) 22/15 (30/20)
Milling tool spindle kW (hp) 5.5/3.7 (7.5/5) (2 min/cont)
Axis drive (X) kW (hp) 2.8 (3.7)
Axis drive (Z) kW (hp) 3.5 (4.7)
Axis drive (Y) kW (hp) 2.9 (3.9)
Tailstock travel kW (hp)
Machine Size mm (in) 3,560 x 2,574 x 2,489 (140.16 x 101.34 x 97.99)
Weight kg (lb) 8,700 (19,140)
