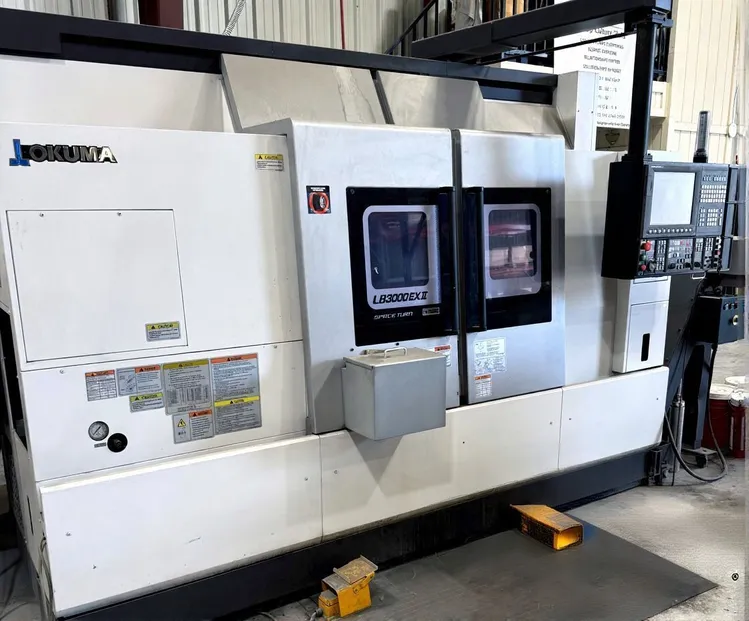

Used 2019 OKUMA LB-3000EX-II-MYW 800 SPACE TURN | CNC LATHE

Capacity
Swing over bed mm (in) ø580 (ø22.83)
Swing over saddle mm (in) ø470 (ø18.5)
Distance between centers mm (in) 1,085 (42.72)
Max turning dia mm (in) ø340 (13.39)
Max work length mm (in) ø800 (31.49)
Travels
X axis mm (in) 260 (10.23)
Z axis mm (in) 1,010 (39.76)
Y axis mm 115 (+70 to -45) (4.53 (+2.76 to –1.77))
Spindle
C axis (minimum control angle) deg 360 (0.001)
Spindle
Speed min-1 45 to 5,000
Nose JIS A2-6
Bore dia mm (in) ø80 {ø91}
Front bearing dia mm (in) ø120 {ø140}
Sub-Spindle
Speed min-1 50 to 6,000
Nose ø140 flat
Bore dia mm (in) ø62 (2.44)
Front bearing dia mm (in) ø100 (3.94)
Turret M-V12 NC turret
Type
No. of tools L / M: 12
OD tool shank mm (in) ø25 (1)
ID tool shank dia mm (in) ø40 (1.57)
Turret rotation sec/index 0.1
Milling tool
Spindle speed min-1 45 to 6,000
Speed range Infinitely variable
Feed rates
Rapid traverse m/min X: 25, Z: 30, Y: 12.5
Rapid traverse (W) m/min (ipm) 30
Rapid traverse (C) min-1 200
Motors
Main spindle (30 min/cont) kW (hp) 22/15 (30/20)
Sub-spindle kW (hp) 11/7.5 (15/10) (20 min/cont)
Milling tool spindle kW (hp) 7.1/4.1 (9.5/5.5) (25 min/cont)
Axis drive kW (hp) X: 3.5 / Z: 4.6, Ys: 3.5 (4.7/6.1/4.7)
Sub-spindle travel kW (hp) 2.8 (3.75)
Machine Sizemm (in) 3,844 × 2,065 x 2,455 (96.65)
Mass (w/ CNC) kg (lb) 6,850(15,070)
