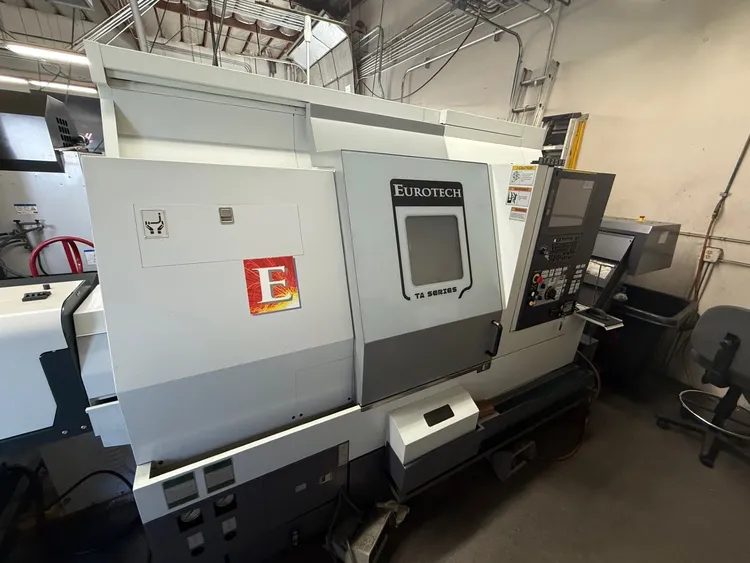

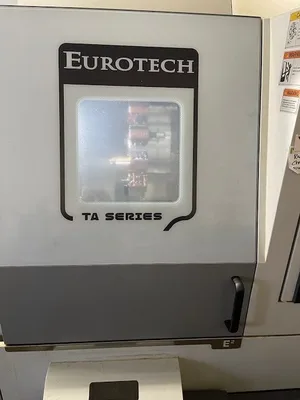

Used 2021 EUROTECH TA-20-YS-640 | 5-Axis or More CNC Lathes

Maximum diameter of swinging over bed (mm) 760 / 29.9"
Maximum diameter of swinging over slides (mm) 600 / 23.6"
Maximum turning diameter (mm) 460 / 18.1"
Distance between center of spindles (mm) 649 / 25.5"
X-axis travel (mm) 310 / 12.2"
Z-axis travel (mm) 640 / 25.1"
Y-axis travel (mm) +70 -50 / +2.7" - 1.9"
B-axis travel (mm) +70-50 / +2.7" - 1.9"
Fast feedrate X (m/min) 30
Fast feedrate Z (m/min) 30
Fast feedrate Y (m/min) 15
Fast feedrate B (m/min) 30
Axis acceleration 1g=9,8 m/s2
SPINDLE
Maximum speed (rpm) 4000
Bearing outside diameter (mm) 170 / 6.6"
Bearing inside diameter (mm) 110 / 4.3"
Spindle nose ASA 6’’A2
Spindle inside diameter (mm) 73 / 2.87"
Maximum bar diameter (mm) 66 / 2.59"
Chuck diameter (mm) 210 / 8.26"
Chuck bore (mm) 66 / 2.59"
Spindle power (kW) (max./S6 40%)
Turning torque (Nm) 366 (max) 286 (S6 40%)

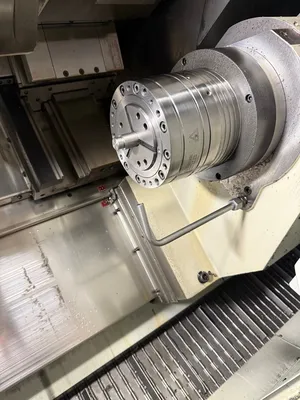

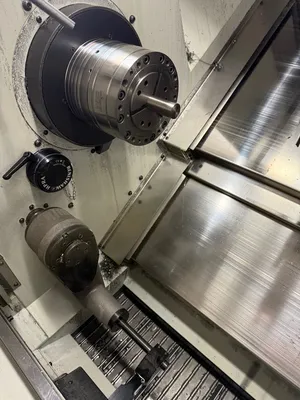

SUBSPINDLE
Maximum speed (rpm) 4500
Bearing outside diameter (mm) 150 / 5.9"
Bearing inside diameter (mm) 100 / 3.93"
Spindle nose ASA 6’’A2
Spindle inside diameter (mm) 61 / 2.4"
Bar diameter (mm) 52 / 2.04"
Chuck diameter (mm) 175 / 6.88"
Chuck bore (mm) 56 / 2.2"
Power (kW) (max./ S6 40%) 14/8
Turning torque (Nm) (max./S6 40%) 292/153

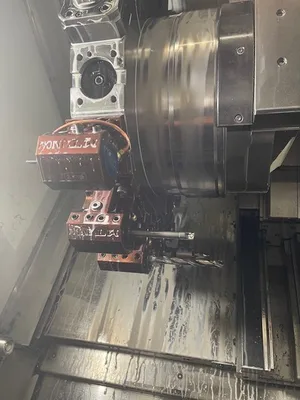

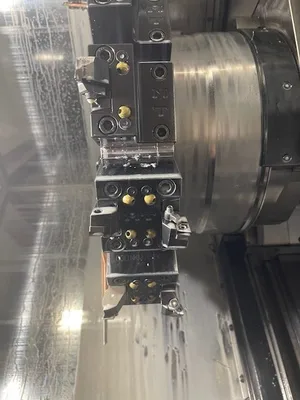

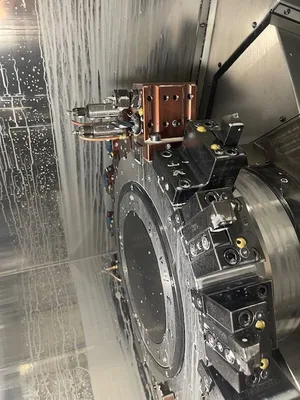

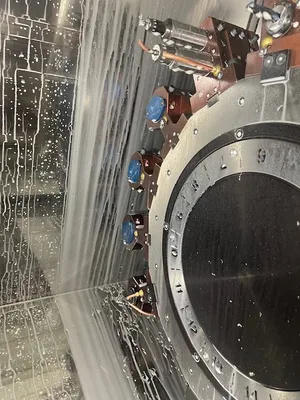

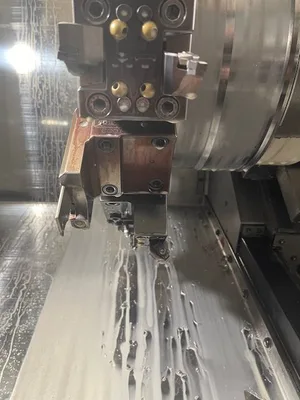

TURRET
Number of positions 15
Section of tools (mm) 25x25 (Ø50)
Changing time 30º 0,2s-180º 0,5s
Interlocking force at 45 bar (kgf) 5090

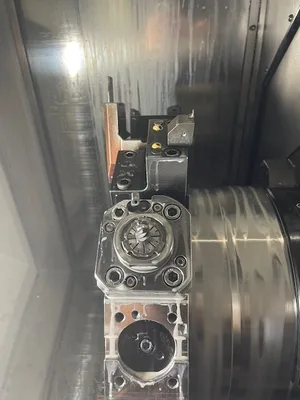

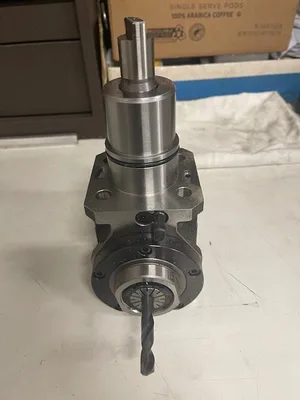

DRIVEN TOOLS
Number of driven tools 12
Turning speed (rpm) 12000
Power (kW) (max./S1) 11,3/8,1
Maximum torque (Nm) 75
MISC.
Coolant tank Lateral (litres) 230
Coolant tank Rear (litres) 200
Hydraulic oil tank (litres) 10
Lubrication oil tank (litres) 4
Total weight (kg) 7500
Dimensions (mm) 2542x1760x2120
