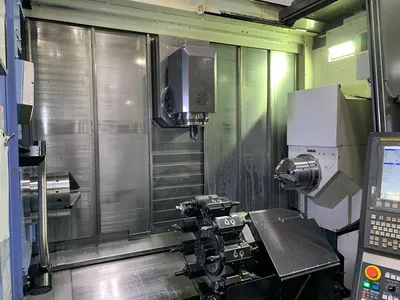

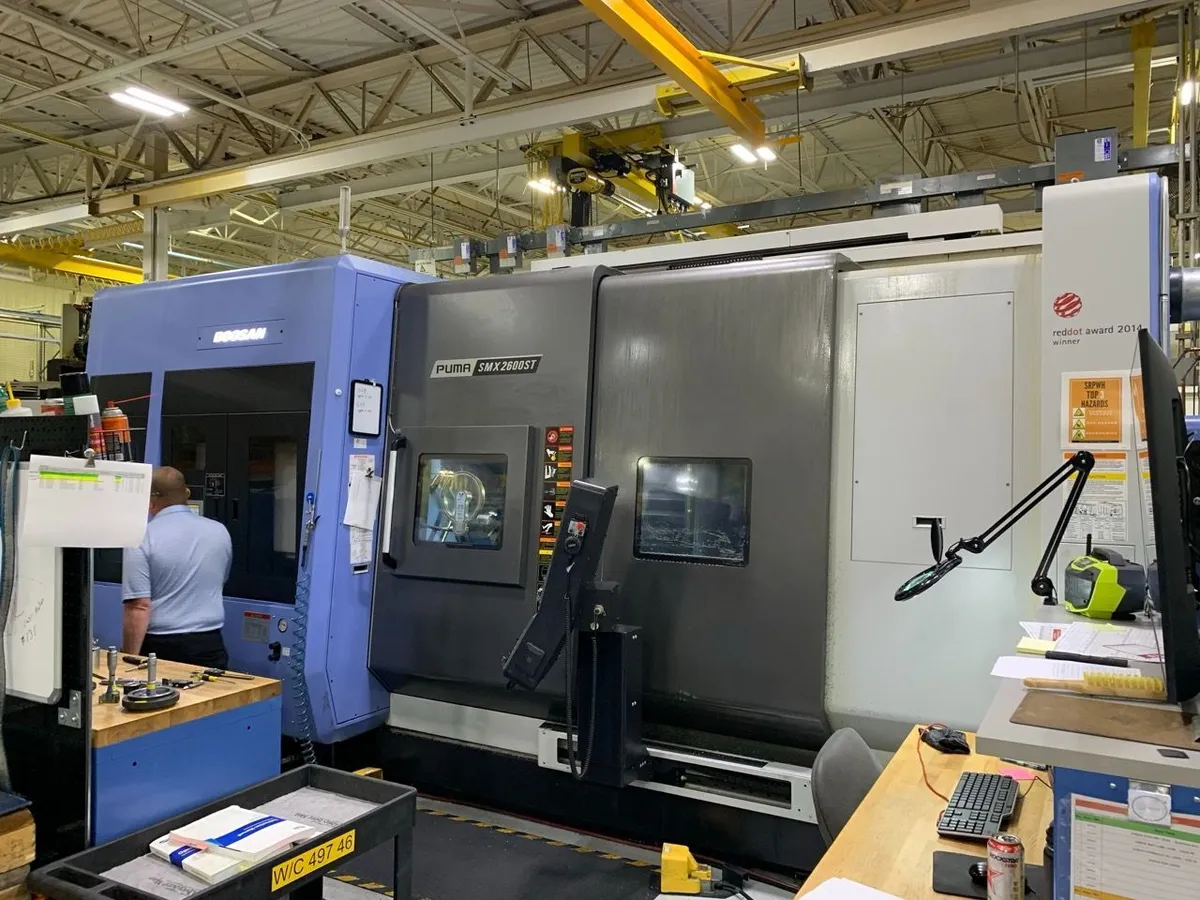

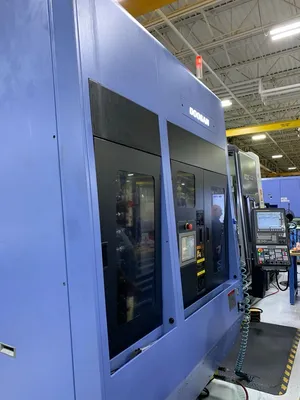

Used 2019 DOOSAN PUMA SMX2600ST | 5-Axis or More CNC Lathes

Capacity
Swing over bed mm (inch) 660 (26.0)
Recommended turning diameter mm (inch) 255 (10.0)
Max. turning diameter mm (inch) 660 (26.0)[ Lower turret : 405 (15.9) ]
Max. turning length mm (inch) 1540 (60.6)
Chuck size Left spindle inch 10
Right spindle inch 10
Chuck work weight (include chuck) kg (lb) 260 (573.2)
Shaft work weight (include chuck) kg (lb) 520 (1146.4)

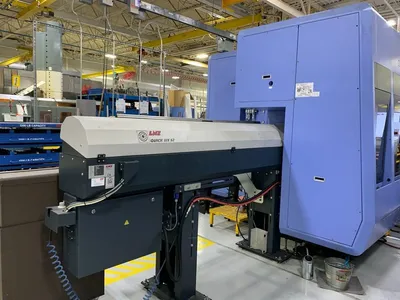

Bar working diameter mm (inch) 81 (3.2)

Travels
Travel distance
X-axis mm (inch) 695 (27.4)
Y-axis mm (inch) 300 (±150) (11.8 (±5.9))
Z-axis mm (inch) 1585 (62.4)
A-axis** mm (inch) 1540 (60.6)
B-axis deg 240 (±120)
C1-axis / C2-axis deg 360 / 360
X2-axis / Z2-axis mm (inch) - - 235 / 1540 (9.3 / 60.6)
Rapid traverse rate
X-axis m/min (ipm) 48 (1889.8)
Y-axis m/min (ipm) 36 (1417.3)
Z-axis m/min (ipm) 48 (1889.8)
A-axis** m/min (ipm) - 30 (1181.1)
B-axis r/min 40
C1-axis / C2-axis r/min 200 / 200
X2-axis / Z2-axis m/min (ipm) - - 24 / 36 (944.9 / 1417.3)

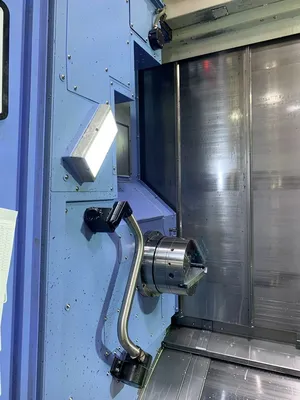

Left spindle
Max. spindle speed r/min 4000
Spindle motor power (S3 25%/cont.) kW (Hp) 30/26/22 (40.2/34./29.5) (S3 25% / S2 30min /S1 Cont.)
Spindle nose ASA A2-8
Spindle bearing diameter (Front) mm (inch) 130 (5.1)
Spindle through hole mm (inch) 91 (3.6)
Min. spindle indexing angle (C1-axis) deg 0.0001

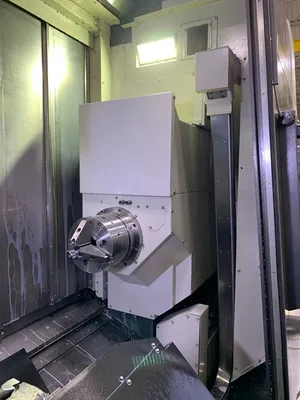

Right spindle
Max. spindle speed r/min - 4000
Spindle motor power (S3 25%/cont.) kW (Hp) - 30/26/22 (40.2/34./29.5) (S3 25% / S2 30min /S1 Cont.)
Spindle nose ASA - A2-8
Spindle bearing diameter (Front) mm (inch) - 130 (5.1)
Spindle through hole mm (inch) - 91 (3.6)
Min. spindle indexing angle (C2-axis) deg - 0.001

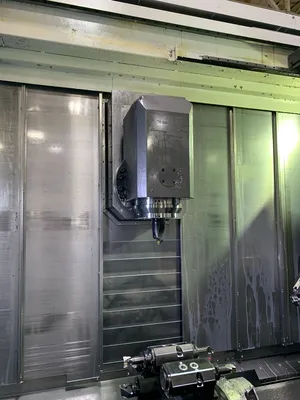

Milling spindle
Max. spindle speed r/min 12000
Milling spindle motor power (2.5min/10min/Cont.) kW (Hp) 26/18.5/15 (34.9/24.8/20.1)
Min. spindle indexing angle (B-axis) deg 0.0001

Automatic tool changer
Tool storage capacity (Max.) ea 120
Tool shank - CAPTO C6
Max. tool diameter continuous mm (inch) 90 (3.5)
Max. tool diameter without adjacent tools mm (inch) 130 (5.1)
Max. tool length mm (inch) 450 (17.7)
Max. tool weight kg (lb) 12 (26.5)
Max. tool moment N·m (ft-lbs) 9.8 (7.2)
Tool change time (T-T-T) Tool-to-tool sec 1.8
Chip-to-chip sec 7.8

Lower turret
No. of tool stations ea - 12
OD tool size mm (inch) - 25 (1.0)
Max. boring bar size mm (inch) - 40 (1.6)
Turret Indexing time (1 station swivel) s - 0.2
Max. rotary tool speed r/min - 5000
Coolant Coolant pump motor power kW (Hp) 2.2 (3.0)
Power source Electric power supply (rated capacity) kVA 98.93

Machine dimensions
Height mm (inch) 2820 (111.0)
Length mm (inch) 5790 (228)
Width mm (inch) 3021 (118.9)
Weight kg (lb) 18000 (39682.6)
