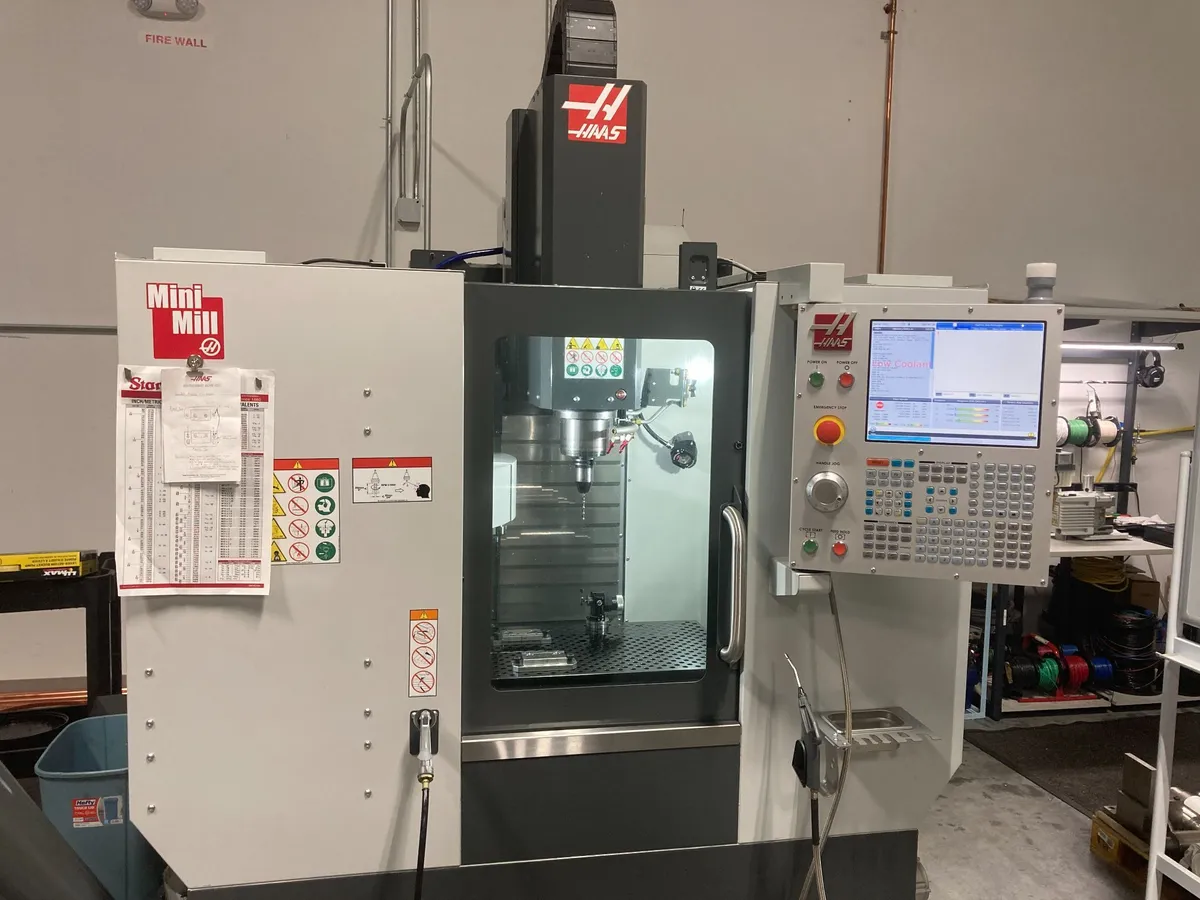

Used 2023 HAAS MINI MILL | Vertical Machining Centers

Travels
X Axis 16.00 in 406 mm
Y Axis 14.00 in 356 mm
Z Axis 15.00 in 381 mm
Spindle Nose to Table (~ max) 19.0 in 483 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm

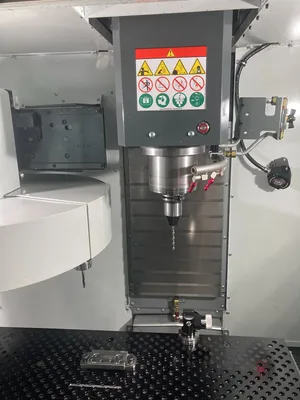

Spindle
Max Rating 10.0 hp 7.5 kW
Max Speed 8000 rpm
Max Torque 45.0 ft-lbf @ 500 rpm 61.0 Nm @ 500 rpm
Drive System
Taper CT 40
Bearing Lubrication Grease Packed
Cooling Air Cooled
Table
Length 36.0 in 914 mm
Width 12.0 in 305 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.33 in 110 mm
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 500 lb 227 kg
Feedrates
Max Cutting 650 ipm 6.5 m/min
Rapids on X 800 ipm 20.3 m/min
Rapids on Y 800 ipm 20.3 m/min
Rapids on Z 800 ipm 20.3 m/min
Axis Motors
Max Thrust X 2000 lbf 8896 N
Max Thrust Y 2000 lbf 8896 N
Max Thrust Z 2000 lbf 8896 N
Tool Changer
Type Carousel
Capacity 20
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Length (from gage line) 12 in 305 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 4.20 s
Chip-to-Chip (avg) 5.00 s
General
Coolant Capacity 45 gal 170 L
Air Requirements
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi 5.5 bar
Electrical Specification
Spindle Speed 8000 rpm
Spindle Power 10.0 hp 7.5 kW
Input AC Voltage (1 Phase) 220 VAC
Full Load Amps (1 Phase) 40 A
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 25 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 13 A
