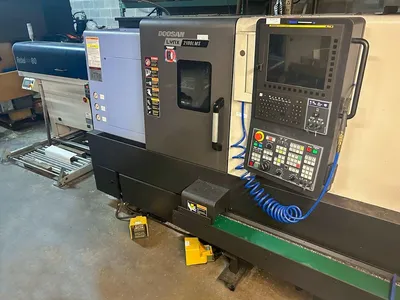

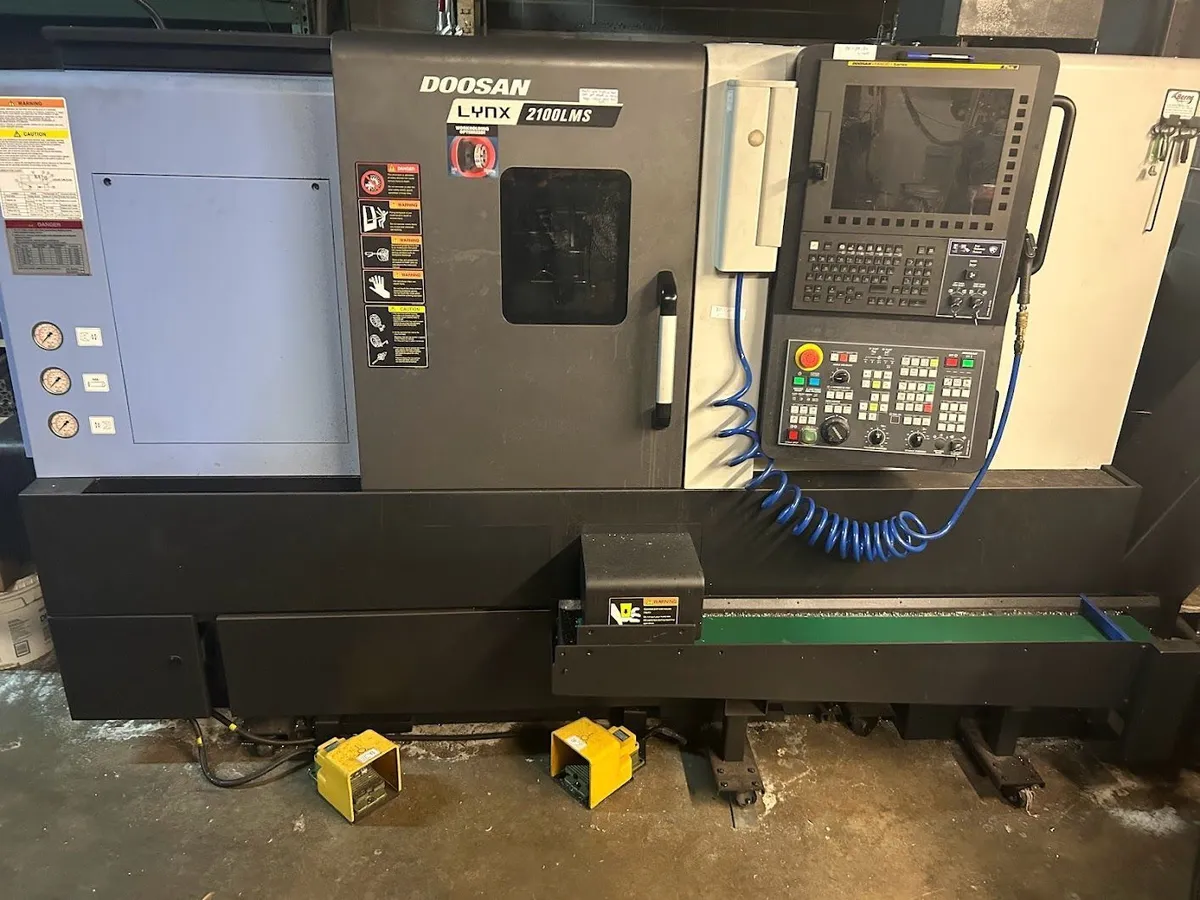

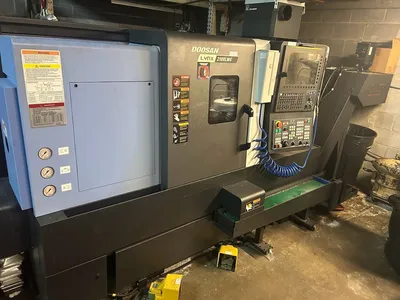

Used 2020 DOOSAN LYNX 2100LMSB | CNC LATHE

Capacity
Swing over bed mm (inch) 600 (23.6)
Swing over saddle mm (inch) 400 (15.7)
Recommended turning diameter mm (inch) 210 (8.3)
Max. turning diameter mm (inch) 300 (11.8)
Max. turning length mm (inch) 510 (20.1)
Chuck size inch 8
Bar working diameter mm (inch) 65 (2.6)

Travel
Travel distance X-axis mm (inch) 205 (8.1)
Travel distance Z-axis mm (inch) 560 (22.0)

Feedrate
Rapid traverse X-axis m/min (ipm) 30 (1181.1)
Rapid traverse Z-axis m/min (ipm) 36 (1417.3)

Spindle
Spindle speed r/min 4500
Spindle motor power (15min/Cont.) kW (Hp) 15/11 (20.1/14.8)
Max. spindle torque N∙m (ft-lbs) 169 (124.6)
Spindle nose ASA A2-6
Spindle bearing diameter mm (inch) 110 (4.3)
Spindle inner diameter mm (inch) 76 (3.0)
C-axis min. indexing angle deg-0.001

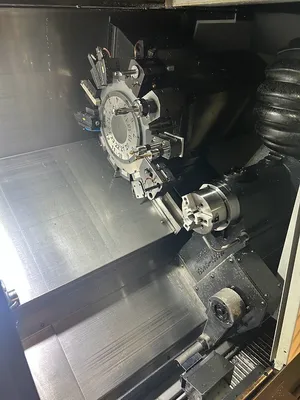

Turret
No. of tool stations ea 12
OD tool size mm (inch) 20 x 20 (0.8 x 0.8)
Max.ID tool size mm (inch) Ø32 (Ø1.3)
Turret indexing time s 0.11
Max. rotary tool speed r/min-6000

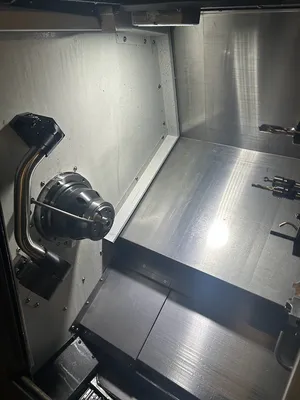

Sub Spindle
Spindle speed-- 6000
Spindle motor power (15min/cont.) (FANUC) kW (Hp)-- 5.5/3.7 (7.4/5.0)
Max. spindle torque N∙m (ft-lbs)-- 47 (34.7)
Spindle nose-- Flat ø110
Spindle bearing diameter mm (inch)-- 75
Spindle inner diameter mm (inch)-- 43 (1.7)
C-axis min. indexing angle deg-- 0.001

Power source
Power consumption kVA 30.07

Machine Dimensions
Length mm (inch) 2835 (111.6)
Width mm (inch) 1595 (62.8)
Height mm (inch) 1693 (66.7)
Weight kg (lb) 3500 (7716.1)
