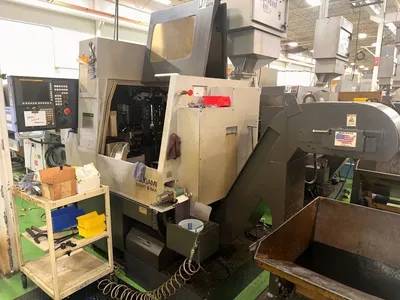

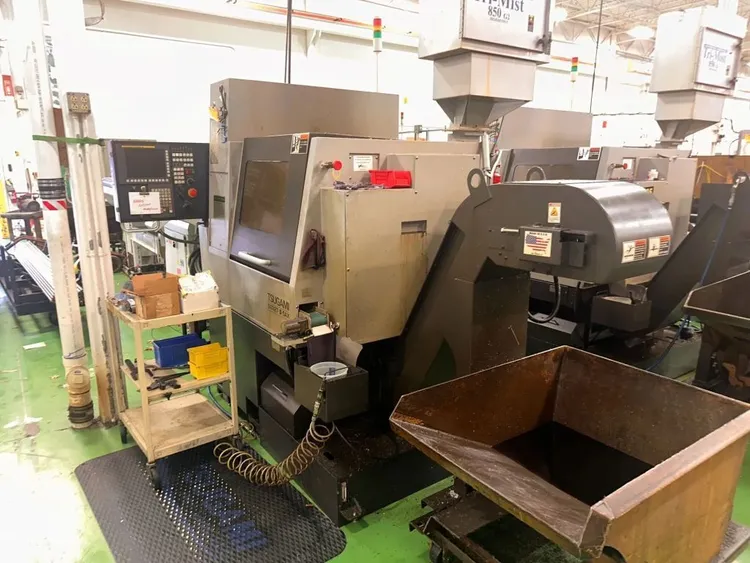

Used 2020 TSUGAMI SS327-III-5AX | Swiss Type Automatic Screw Machines

Machining Range
Max. Chucking Barstock Diameter ø32 mm (1.26 in.)
Max. Machining Length 330 mm (12.99 in.) (Direct-Drive Guide Bushing)
70 mm (2.76 in.) (Chucker Mode))
Max. Drilling Diameter ø12 mm (.47 in.)
Max. Tapping Diameter M10
Max. Back Spindle Chucking Barstock Diameter ø32 mm (1.26 in.)
Max. Back Spindle Drilling Diameter ø10 mm (.39 in.)
Max. Back Spindle Tapping Diameter M8
Max. Tool Spindle Drilling Diameter ø8 mm (.31 in.)
Max. Tool Spindle Tapping Diameter M6
Max. Tool Spindle Slotting Cutter Diameter ø45 mm (1.77 in.)

Machine Capability
Main Spindle Speed 200 to 8,000 min-1
Back Spindle Speed 200 to 8,000 min-1
Tool Spindle Speed 200 to 6,000 min-1
Total Tool Number (Standard Spec.) 38
Tool Size .625 in. x 3.94 in. (square) / 25 mm (round)
Rapid Traverse Rate 35 m/min (105 ft/min) [(X1, Y1, Y2: 24 m/min (78.74 ft/min)]
B-Axis Tool Spindle Speed 7,000 RPM
Spindle Index C1 Axis and C2 Axis

Motors
Main Spindle 3.7/5.5 kW
Back Spindle 3.7/5.5 kW
Cross Drill of Front Tool Post 1.0 kW
B-Axis Tool Spindle 1.0 kW
Rotary Tool of Back Tool Post 1.4 kW
Rotary Guide Bushing 1.5 kW
Z1, Y1, X2, Z2 .75 kW
X1, Y2 .5 kW
Coolant Pump .4 kW
Lubricating Pump 3 W

Others
Compressed air requirement .4 MPa or more
Air discharge rate 100 NL/min

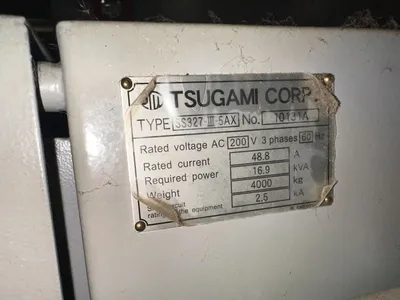

Power Source Requirements 16.8 KVA
Coolant Tank Capacity 260 L
Width x depth x height 2630 x 1280 x 2010 mm
103.5” x 50.4” x 79”
Weight 4,000 kg (8,818 lbs.)
