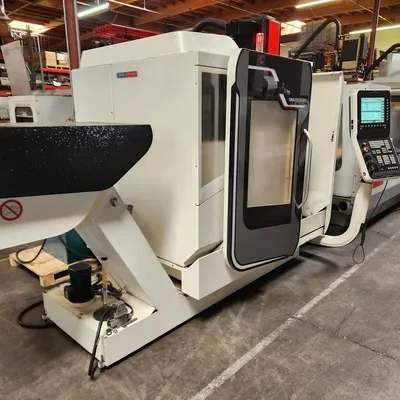

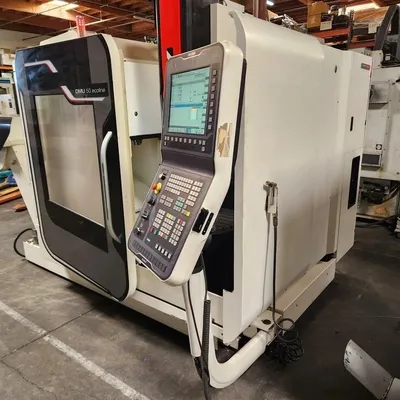

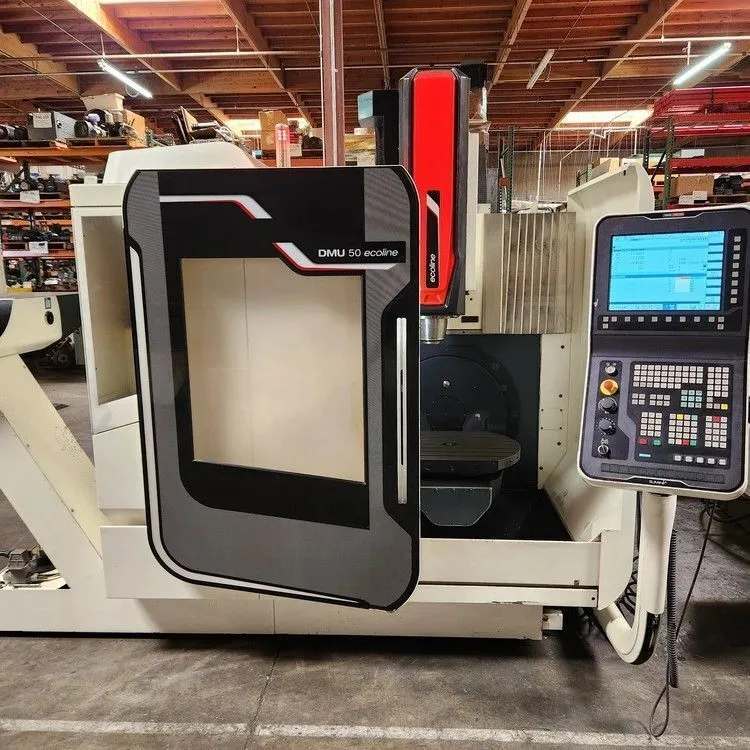

Used 2013 DMG MORI DMU 50 ECOLINE | Universal Machining Centers

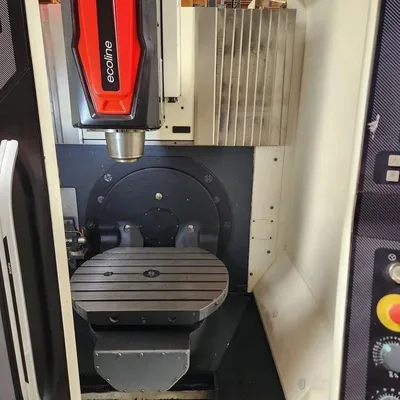

Work area
Travel in the X-axis in. 19.7
Travel in the Y-axis in. 17.7
Travel in the Z-axis in. 15.7

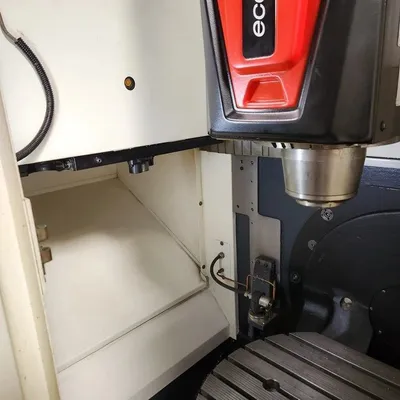

Work spindle
Speed range, max. rpm. 8,000
Drive power (40 / 100% DC) 8,000 hp. 17.4
Torque (40 / 100% DC) 8,000 ft./lbs. 61.2
Rapid traverse in X / Y / Z ipm. 944.9
Feed force, max. lbf. 1,011.6
Feed rate (theoretical value) ipm. 944.9

Positioning accuracy
Resolution in X / Y / Z (in- / direct measuring system) in. 3.9 e-7
Resolution in B- / C-axis (in- / direct measuring system) arcseconds 0.02
Pmax X / Y / Z according to VDI / DGQ 3441 (in- / direct measuring system) in. 0.0006 / 0.0002
Pmax B- / C- axis according to VDI / DGQ 3441 (direct measuring system) arcseconds 16
Pmax according to JIS B6330-1980 (in- / direct measuring system) in. 0.0003 / 0.0002

B-axis / C-axis
Swivel range in the B-axis degrees –5 / +110
Clamping hydraulic
Rapid traverse degrees/min. 2,160

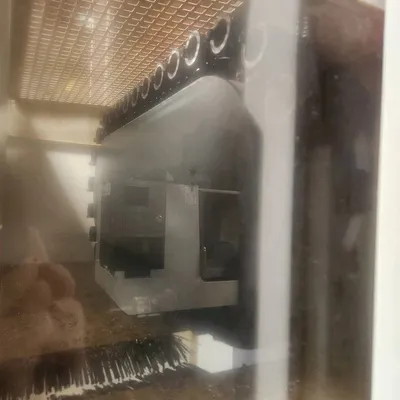

Tool magazine / changer
Number of tools 30
Tool weight, max. lbs. 13.2
Tool length, max. in. 11.8
Tool diameter, max. in. ø 3.1
Tool diameter with vacant adjacent slots, max. in. ø 5.1
16-slot tool magazine: tool change time for slots 1–2 / slots 1–9 sec. 9 / 12
16-slot tool magazine: average chip-to-chip time for slots 1–2 / slots 1–9 sec. 12 / 15
30-slot or 32-slot tool magazine: tool change time sec. 1.6
30-slot or 32-slot tool magazine: average chip-to-chip time sec. 8

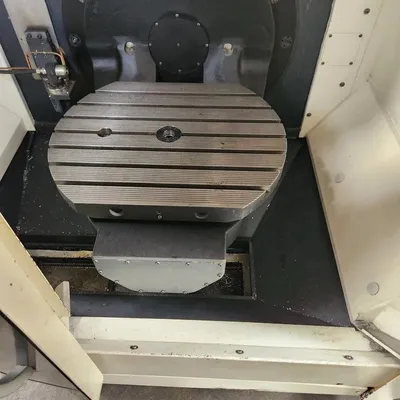

Table design
Clamping surface with T-slots in. ø 24.8 × 19.7
Loading height (upper table edge) in. 31.1
Table load (assembly weight) lbs. 440.9

Machine weight / Connected values
Machine weight with 16-slot tool magazines and a chip tray lbs. 9,039.0
Machine weight with 30-slot or 32-slot tool magazines and a chip tray lbs. 10,361.7
In max. at 100% DC A 28
Power consumption at 100% DC kVa 17
Backup fuse, max. A 35
