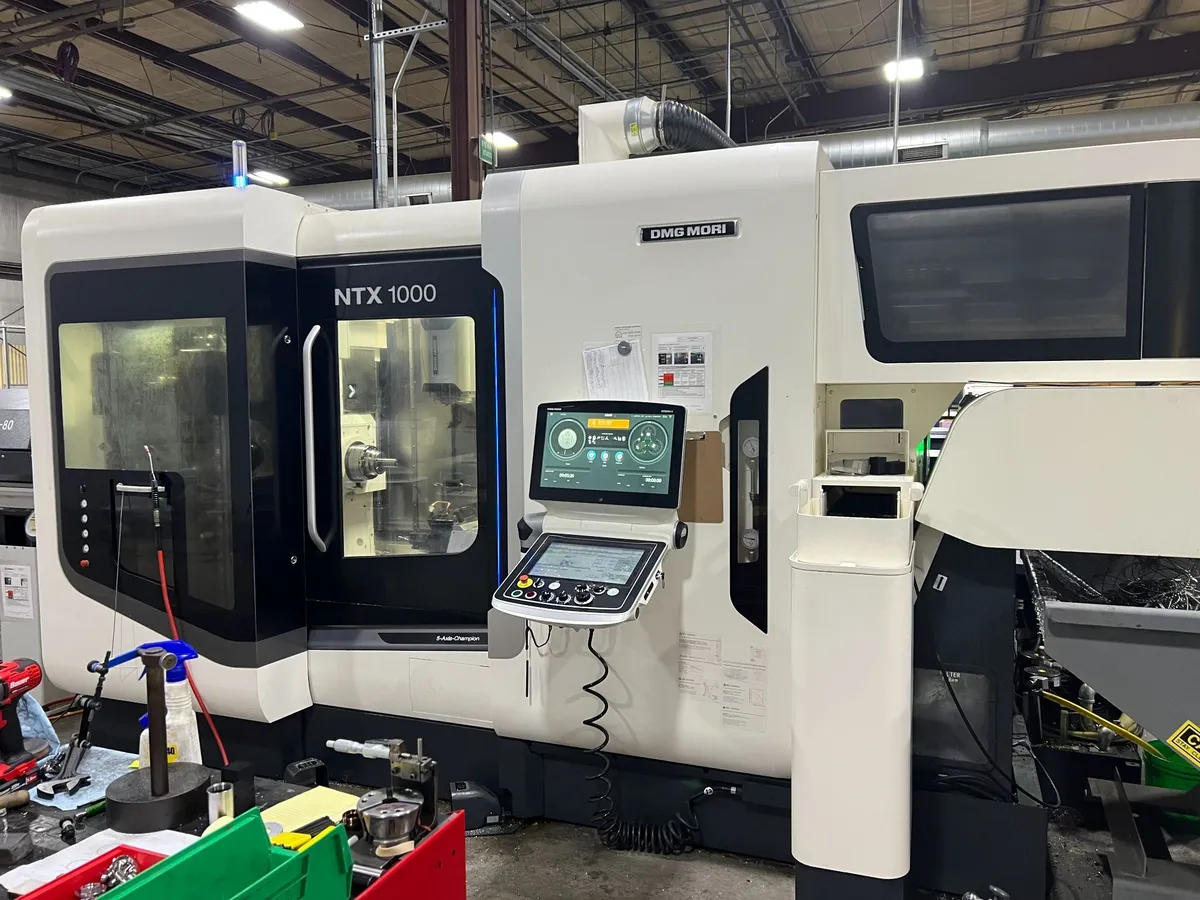

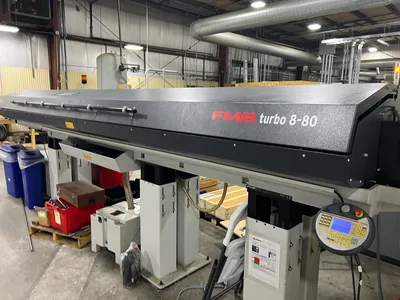

Used 2019 DMG MORI NTX 1000 SZM | 5-Axis or More CNC Lathes

Capacity
Swing over cross slide mm (in.) 450 (17.7)
Max. turning diameter (Tool spindle / Turret 2) mm (in.) 430 (16.9) / 274 (10.7)
Max. turning length mm (in.) 800 (31.4)
Bar work capacity mm (in.) 52 (1.9) [65 (2.5)]

Travel
X1-axis (Tool spindle) mm (in.) 455 (17.9) <-105－+350 (-4.1－+13.8)>
Y-axis (Tool spindle) mm (in.) ±105 (±4.1)
Z1-axis (Tool spindle) + for ATC mm (in.) 800+165 (31.5 + 6.5)
B-axis (Tool spindle) -30°～ +210°

Spindle 1
Spindle speed min-1 5,000
Through-Spindle Hole Diameter 73mm
Chuck 8"

Spindle 2
Spindle speed min-1 － 6,000
Chuck 6"

Tool spindle (Turret 1)
High Speed Tool Spindle min-1 20,000
Min. B-axis indexing increment 0.0001°
Taper hole of rotary tool spindle Capto C5
Tool magazine Tool 76
Max. tool diameter With adjacent tools mm (in.) 70 (2.7)
Without adjacent tools mm (in.) 130 (5.1)
Max. tool length mm (in.) 250 (9.8)
210 (8.2)
Max. tool mass kg (lb.) 5 (11)

Turret 2
Number of tool stations (Rotary tool mounting capacity) Tool 10 (10)
Rotary tool spindle speed range min-1 10,000
Shank height for square tool mm (in.) 20 (0.8)

Feedrate
Rapid traverse rate mm / min (ipm)
Tool spindle
X: 40,000 (1574.8)
Y: 40,000 (1574.8)
Z: 50,000 (1968.5)
Spindle 2
A: 36,000 (1417.3)
Turret 2
X2: 28,000 (1102.4)
Z2: 36,000 (1417.3)
min-1 B:100 C:250

Motors
Motor for Spindle 1 <40%ED / 40%ED / cont> kw (HP) 22 / 18.5 / 15 (30 / 24.7 / 20) [26 / 22 (34.7 / 30) <40%ED / cont>]
Motor for Spindle 2 <40%ED / 40%ED / cont> kw (HP) － 22 / 18.5 / 15 (30 / 24.7 / 20)
Tool spindle drive motor (25%ED / 15 min. / cont) kw (HP) 9 / 7.5 / 5.5 (12.0 / 10 / 7.5)
Turret 2 rotary tool spindle drive motor (15%ED / cont) kw (HP) 4.6 / 2.4 (6.1 / 3.2)
