Used 1999 PEMSERTER 2000A | Insertion Machines
Have one to sell?
ConditionUsed
1 available

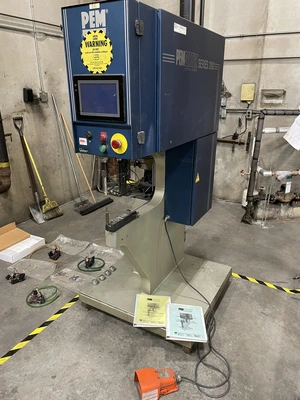

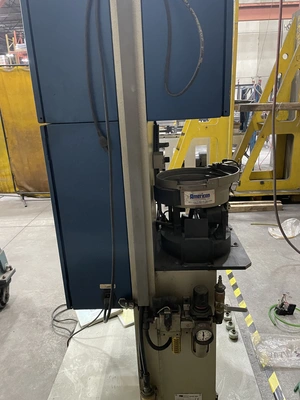

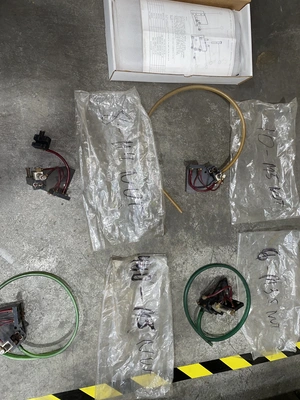

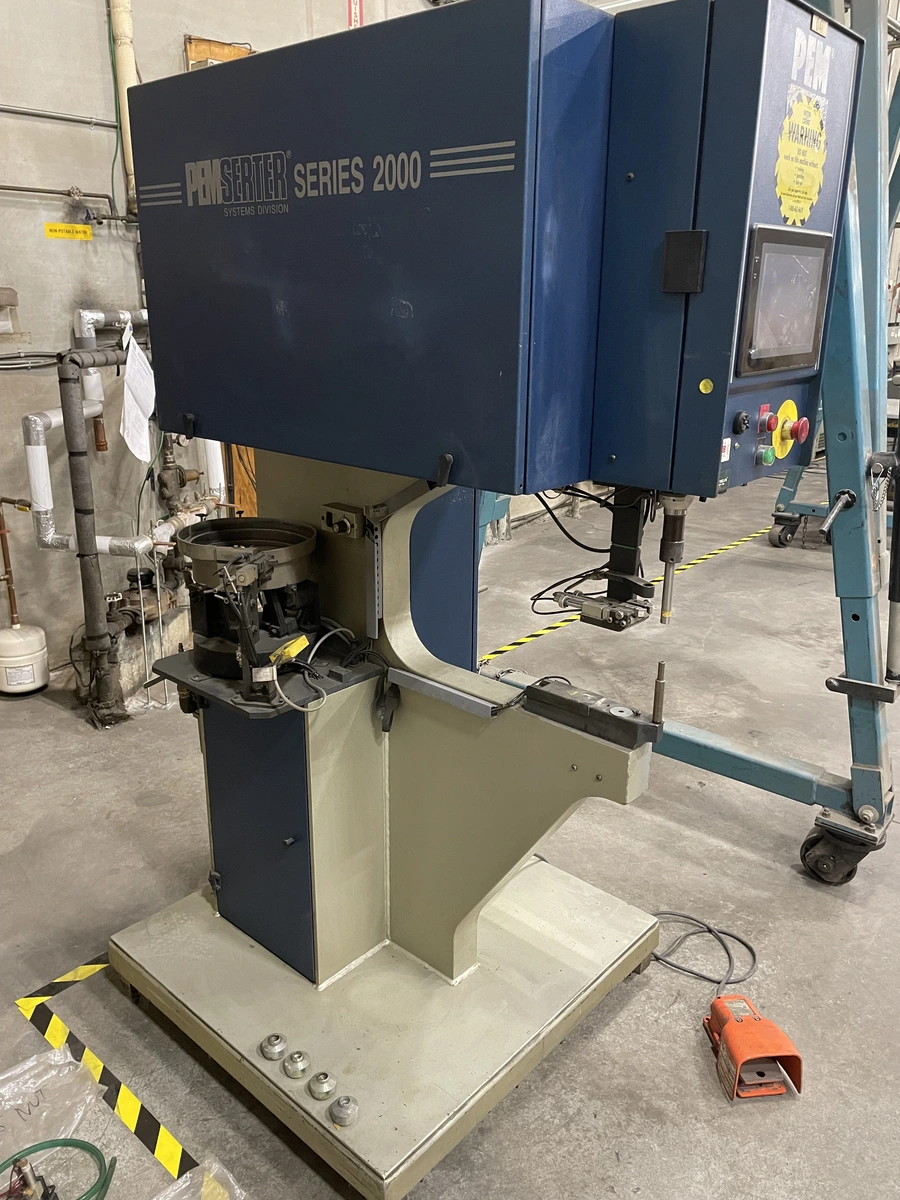

Series 2000 PEM Hardware Insertion Machine. It is controlled by a PLC for accurate installation of fasteners. it comes with manual and auto feed tooling of various sizes.
Ram Force 1.8 to 71.2 KN (400 to 16,000 lbs)
Pressure System Type Air-Over-Oil
Air Requirements 6 to 7 BAR (90 to 100 PSI) 12 mm (1/2”) dia. minimum line flow
Throat Depth 61 cm (24”)
Height 193 cm (76”)
Width 92 cm (36”)
Depth 126 cm (49.5”)
Weight 1,135 kg (2,500 lbs.)
Air Consumption approx. 5 liters/sec air at 1 Atm (15 Scfm) 20 insertions per minute at 20 KN (4500 Lbf)
*Specifications Subject to Buyer Verification..
