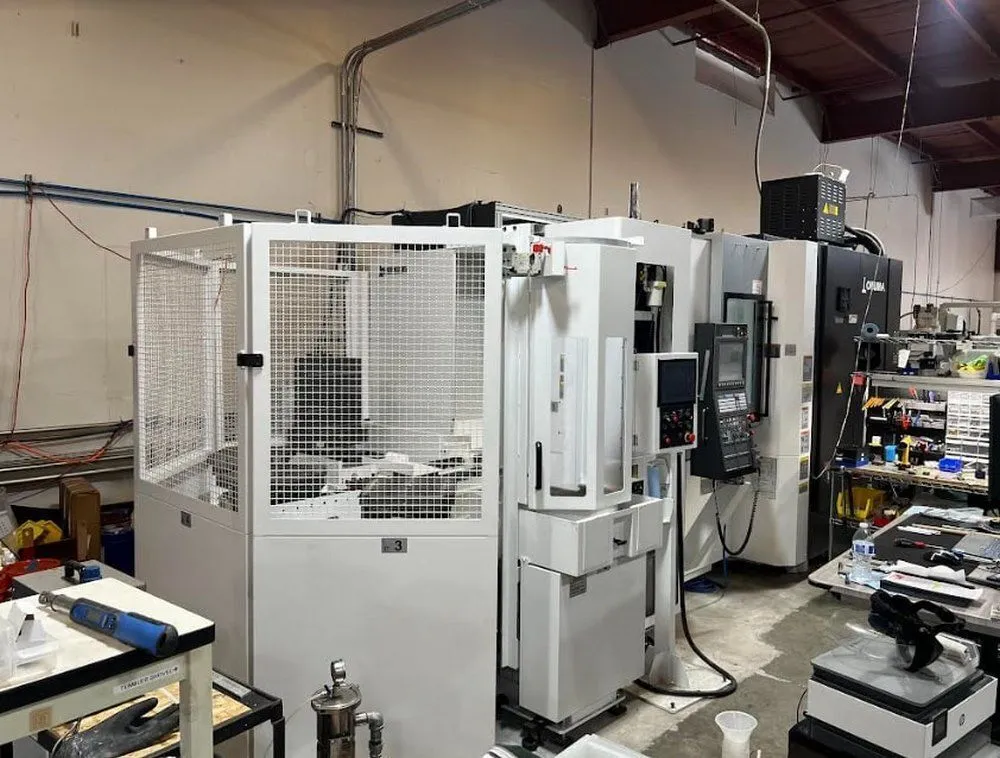

Used 2022 OKUMA MB-4000H | HMC (3-4 AXIS)

Travels
X axis (Left/right column) mm (in) 560 (22.05)
Y axis (spindle up/down) mm (in) 560 (22.05)
Z axis (table front/back) mm (in) 625 (24.61)
Spindle center to pallet top mm (in) 50 to 610 (1.97 to 24.02)
Spindle nose to pallet center mm (in) 85 to 710 (3.35 to 27.95)
Pallet
Pallet size mm (in) 400 × 400 (15.75 × 15.75)
Max load kg (lb) 400 (880)
Indexing angle deg 0.001
Max workpiece dimensions mm (in) ø600 × 900 (ø23.62 × 35.43)
Spindle
Spindle speed min-1 (rpm) 50 to 15,000
Tapered bore 7/24 taper No. 40
Bearing dia mm (in) ø70 (ø2.76)
Feed Rate
Rapid traverse m/min (ipm) X-Y-Z: 60 (2,362)
Cutting feed rate mm/min (ipm) 1 to 60,000 (0.04 to 2,362)
Motor
Spindle (10 min/cont) kW (hp) 26/18.5 (35/25)
Feed axes kW (hp) X: 4.6 (6.13), Y-Z: 3.5 (4.67)
Table indexing kW (hp) 3.0 (4.0)
ATC
Tool shank MAS403 BT40
Pull stud MAS 2
Magazine capacity 146
Max tool dia (w/ adjacent) mm (in) ø70 (ø2.76)
Max tool dia (w/o adjacent) mm (in) ø150*2 (ø5.91)
Max tool length mm (in) 300 (11.81)
Max tool weight kg (lb) 10 (22)
