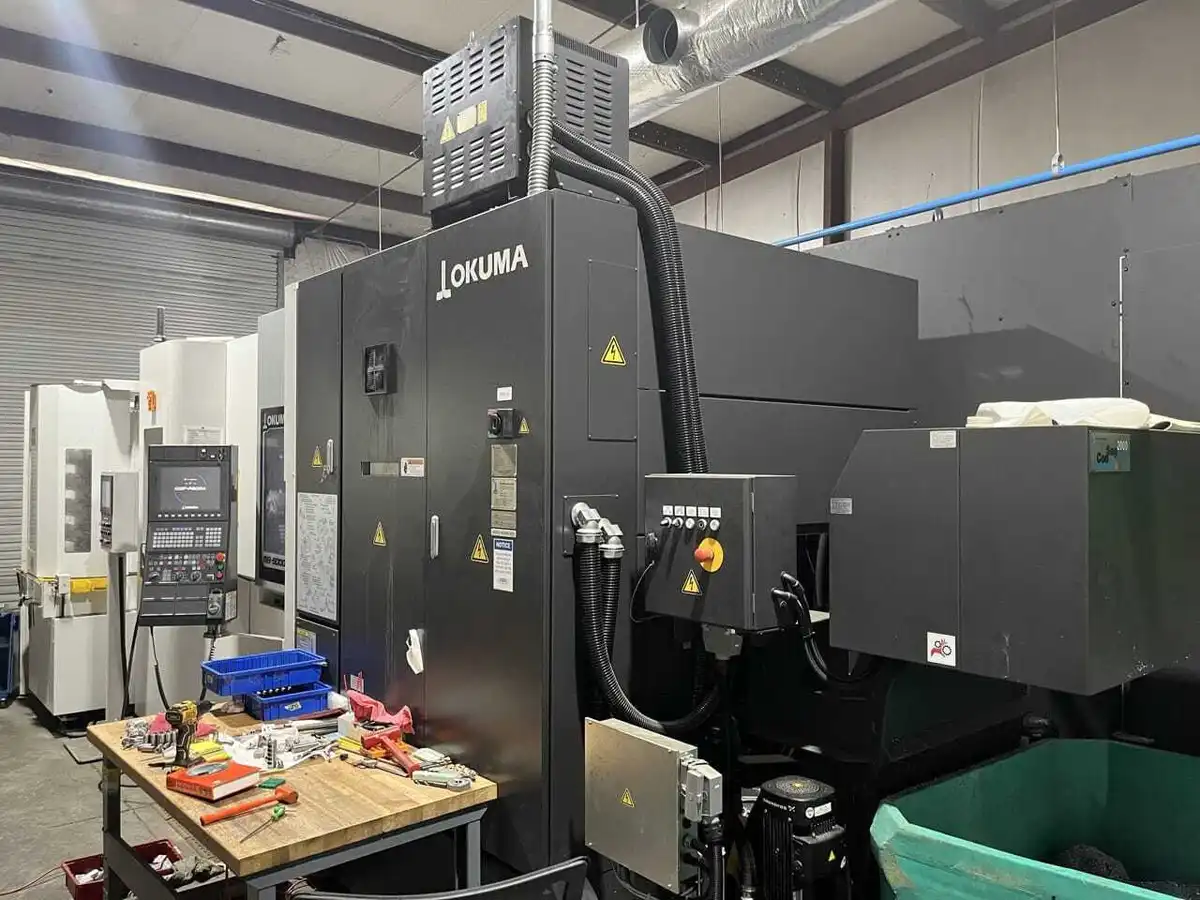

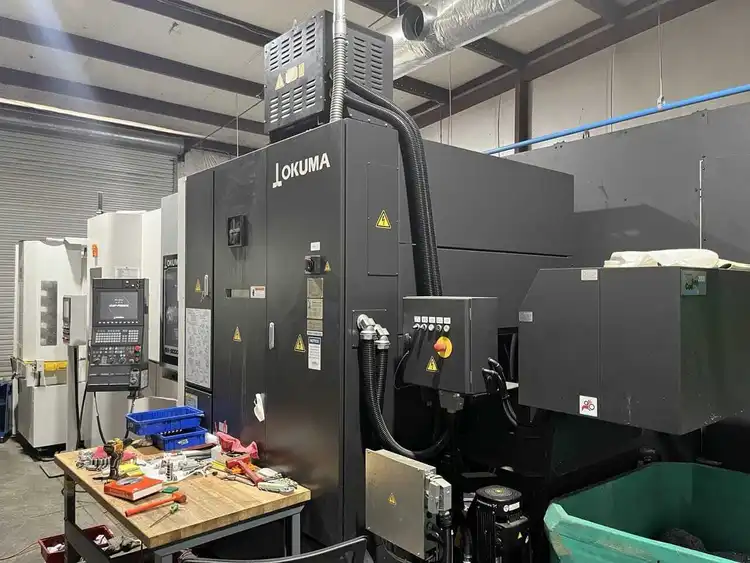

Used 2020 OKUMA MB-5000HII | HMC (3-4 AXIS)

X axis (Left/right column) mm (in.) 760 (29.92)
Y axis (spindle up/down) mm (in.) 760 (29.92)
Z axis (table front/back) mm (in.) 810 (31.89)
Spindle center to pallet top mm (in.) 50 to 810 (1.97 to 31.89)
Spindle nose to pallet center mm (in.) 100 to 910 (3.94 to 35.83)
Pallet size mm (in.) 500 × 500 (19.69 × 19.69)
Max load kg (lb) 500 (1,100)
Indexing angle 1 [0.001]
Max workpiece dimensions mm (in.) ø800 × 1,000 (31.5 × 39.37
Spindle speed 15,000
Tapered bore 7/24 taper No. 40
Bearing dia mm (in.) ø70 [ø90, ø70]
Rapid traverse m/min (fpm) X-Y-Z: 60 (196.86)
Cutting feedrate mm/min (ipm) X-Y-Z: 1 to 60,000 (2362.2)
Tool shank MAS403 BT40
Pull stud MAS 2
Magazine capacity 180
Max tool dia (w/ adjacent) mm (in.) ø90 (ø3.54)
Max tool dia (w/o adjacent) mm (in.) ø170 (ø6.69)
Max tool length mm (in.) 510 (20.08)
Max tool weight kg (lb) 12 (26.4)
Height mm (in.) 2,893 (113.9)
Floor space; width × depth mm (in.) 2,540 × 5,620 (100 × 221.26)
Weight kg (lb) 13,700 (30,140)
