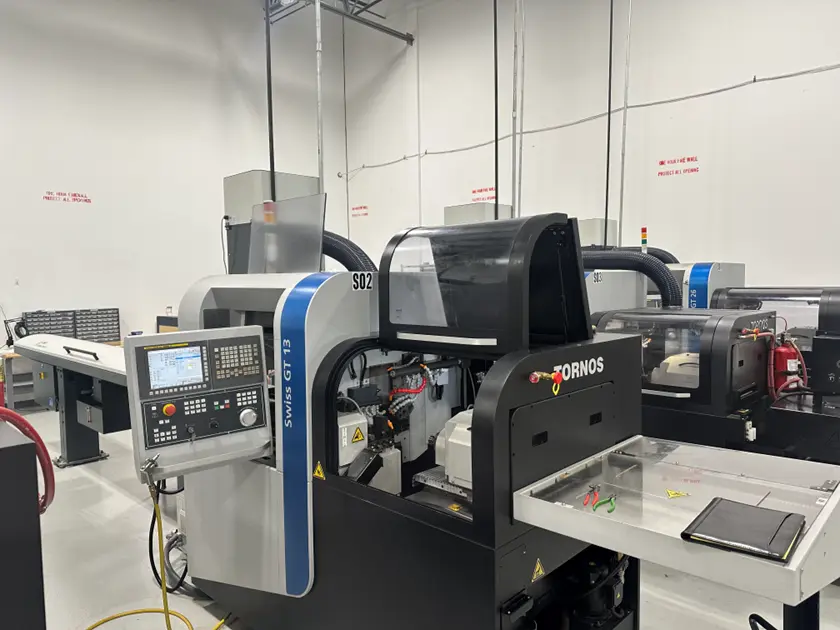

2016 Tornos Swiss GT 13

Fanuc 31iB Control
Multiple threading cycles
- Manual pulse generator
- 'Backgound editing
- Run time and part count display
- Custom Macro B
- G96 Constant surface speed
- Spindle synchronization (speed/phase)
- Geometry and Tool wear
- Chamfering / corner radius
- Direct programming from part drawing
(according to ,simplified programming)
- Tool nose radius compensation
- Multiple repetitive cyles
- Peck drilling
- Rigid tapping (Main and counter spindle
driven tool on the tool platen X1/Y1)
- Cut off check (Z4)
- Interface for memory card
- External Ethernet plug
Tool plate for 5 turning tools 12x12 mm
on the front side of platen
- Tool plate for 3 turning tools 12x12 mm
on the rear side of platen
- S11 Motorization (10,000 RPM)
on the front side of platen X1/Y1
- 1 rotating module for cross machining
with 3 spindles for ESX16 collet
(with 2x 10,000 RPM and 1x 6,250 RPM)
- S21 Motorization (6,000 RPM)
for up to 2 rotating units mounted
on the rear side of platen X1/Y1
(rotating units not included)
- Tool block with 4 bores Ø 22mm
for steady end working tools
Support block for 8 back working tools
with the 4 upper positions
open to receive steady and/or
rotating tools
(rotating units not included)
- On the lower position we have 4 steady
holders with a Ø 20mm shank
for ESX16 collet
- 2 steady holders with a 22 mm Ø bore
(for the upper position)
- S51 motorization (6,000 RPM) to drive
the back working tools
(max 4 rotating tools)
pneumatic part ejector including
the collet cleaning with coolant
- part chute
Includes a part conveyor to evacuate
the part outside of the machine
- Central lubrication system
- High pressure pump (20 bars, 20 l/min)
including 2 cartridge filters
5 independent outputs
controlled by M codes
- Coolant tank (200 liters)
and chip tank (40 liters)
and 440W coolant pump
- Coolant flow detector
- work light in the machining area
as well as in the main spindle area
1 set of service tools

*Specifications Subject to Buyer Verification.
