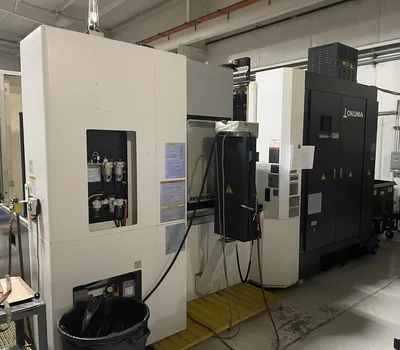

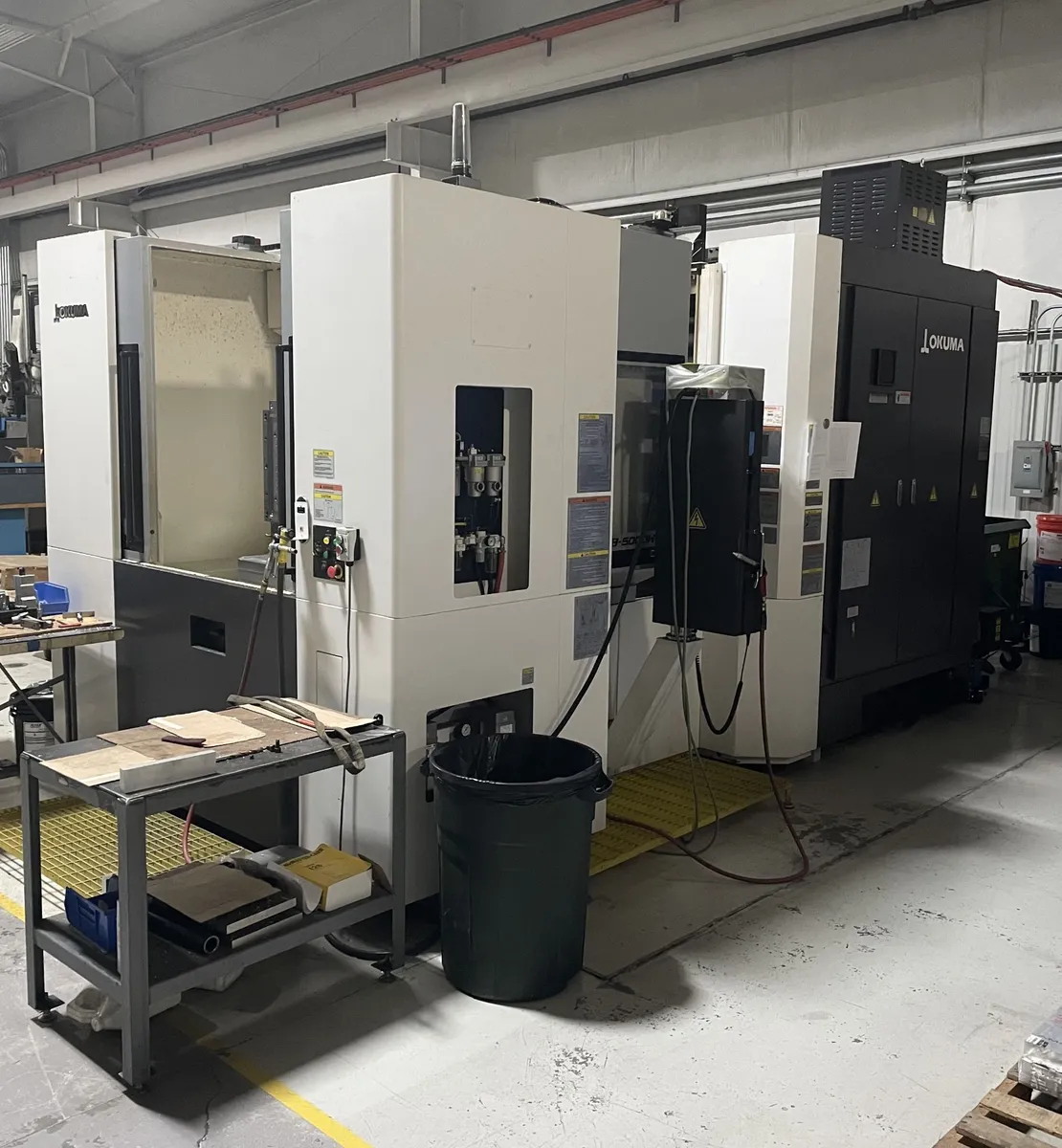

Used 2017 OKUMA MB-5000H | HMC (3-4 AXIS)

X-Axis (Column Right/Left) 29.92″
Y-Axis (Spindel Up/Down) 29.92″
Z-Axis (Table Front/Back) 29.92″
Spindle Center to Table Surface 1.97″ to 31.89″
Spindle End to Table Center 5.31″ to 35.24″
Table (Pallet) Size 19.69″ x 19.69
Load Capacity – Maximum 1,000 Lbs.
Optional Index Positions 360,000
Spindle Speed – Maximum 15,000 RPM
Rapid Feedrate(X-/Y-/Z-xis) 2,362.20 ipm
Jog Feedrates (X-/Y-/Z-Axis) 0.04 to 2,362.20 ipm
Tool Magazine Capacity 64
Taper Cat 40
Tool Diameter – Maximum 2.76″
Without Adjacent Tools 5.91″
Tool Length – Maximum 11.81″
Tool Weight – Maximum 22 Lbs.
No. of Pallets 2
Spindle Drive [Standard (Wide Range)] 40 HP
X-Axis Feed 6.13 HP
Y-Axis Feed 6.13 HP
Z-Axis Feed 6.13 HP
Hydraulic Power Unit 3 HP
Table Indexing 4.00 HP
Power Requirements kVA 45 (15,000)
Voltage 200V VAC +/- 10%
Frequency 50/60 Hz
Machine Height 113.35″
Floor Space 102.56″ x 181.50″
Machine Weight 27,500 Lbs.
