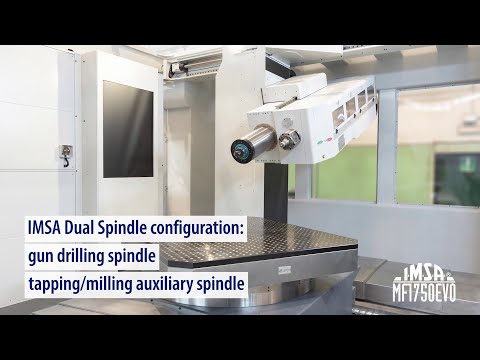

Used 2017 IMSA MF 1750BB | Deep Hole Drills

MILLING:
Spindle Taper ISO 50
Milling Spindle Speed 0 to 4,500 RPM
Maximum Horizontal Stroke Z+W Axes 1100 MM / 43.3"
Milling Spindle Motor 45 KW
DRILLING:
Maximum Drilling Depth 1750 MM / 68.9"
Maximum Drilling Speed 1 to 4,200 RPM
Optimal Drilling Diameter, Solid 5 MM to 50 MM / 0.2" to 0.78"
Drilling Spindle Motor 15 KW
TRAVELS:
V-Axis Drilling Depth 1750 MM / 68.9"
X-Axis Column Longitudinal Travel 3250 MM / 128"
X-Axis Offset Between Spindles 300 MM / 11.8"
X-Axis Usable Longitudinal Travel 2950 MM / 116"
Y-Axis Headstock Vertical Travel 1500 MM / 59"
W-Axis Approach Stroke Drill Slide 600 MM / 23.6"
A-Axis Head Tilt, Infinite Position +/- 20 Degrees
U-Axis Translation Movement of Table 1 MM
B-Axis Table Rotation 360,000 Position
Maximum Part Swing 169.3"
ROTARY TABLE:
Table Dimensions 2000 MM x 2499 MM / 78.7" x 98.9"
B-Axis Feed Rate, Maximum 8 MM IPM
Table Weight Capacity 29937 KG . / 66,000 Lbs.
Maximum Part Size Inside Enclosure 3000 MM x 3000 MM / 118" x 118"
U-Axis Table Translation 1 MM
Locking Mechanism Hydraulic
CNC Measuring Rotary Scale
