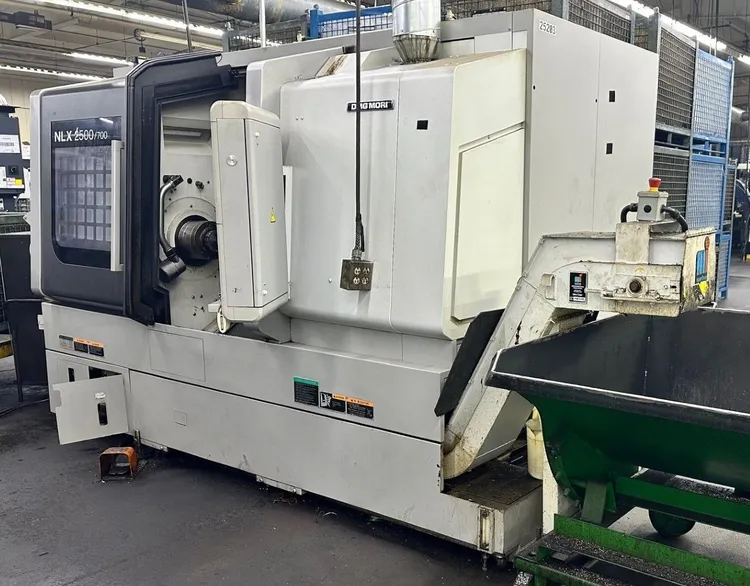

Used 2014 MORI SEIKI NLX2500Y/700 | CNC LATHE

Swing over bed mm (in.) 923.8 (36.4)
Swing over cross slide mm (in.) 755 (29.7)
Max. turning diameter mm (in.) 356 (14.0)
Standard turning diameter mm (in.) 275 (10.8)
Max. turning length mm (in.) 705 (27.7)
Bar work capacity mm (in.) 80 (3.1)
X-axis travel mm (in.) 260 (10.2)
Z-axis travel mm (in.) 795 (31.3)
Y-axis travel mm (in.) 100 <±50> (3.9 <±2.0>)
Max. spindle speed min-1 4,000
Type of spindle nose JIS A2-8
Through-spindle hole diameter mm (in.) 91 (3.6)
Min. spindle indexing angle 0.001゜
Spindle bearing inner diameter mm (in.) 140 (5.5)
Number of tool stations 12
Shank height for square tool mm (in.) 25 (1)
Shank diameter for boring bar mm (in.) Max. 50 (2) [32 (11/4) ]
Tool shank diameter for rotary tool mm (in.) 26 (1.0)
Turret indexing time s 0.25
Max. rotary tool spindle speed min-1 6,000
Rapid traverse rate mm/min (ipm) X, Z: 30,000 (1,181.1) Y: 10,000 (393.7) (275.6) C: 400 min-1
Rotary tool spindle drive motor 5.5/5.5/3.7 (7.5/7.5/5)
<3 min/5 min/cont> kW (HP)
Feed motor kW (HP) X, Z, Y: 3.5 (4.7)
Electrical power supply kVA 36.4
Coolant tank capacity L (gal.) 246 (64.9)
Machine height mm (in.) 2,120 (83.5)
Floor space mm (in.) 3,100×1,922 (122.0×75.7)
Mass of machine kg (lb.) 6,100 (13,420)
