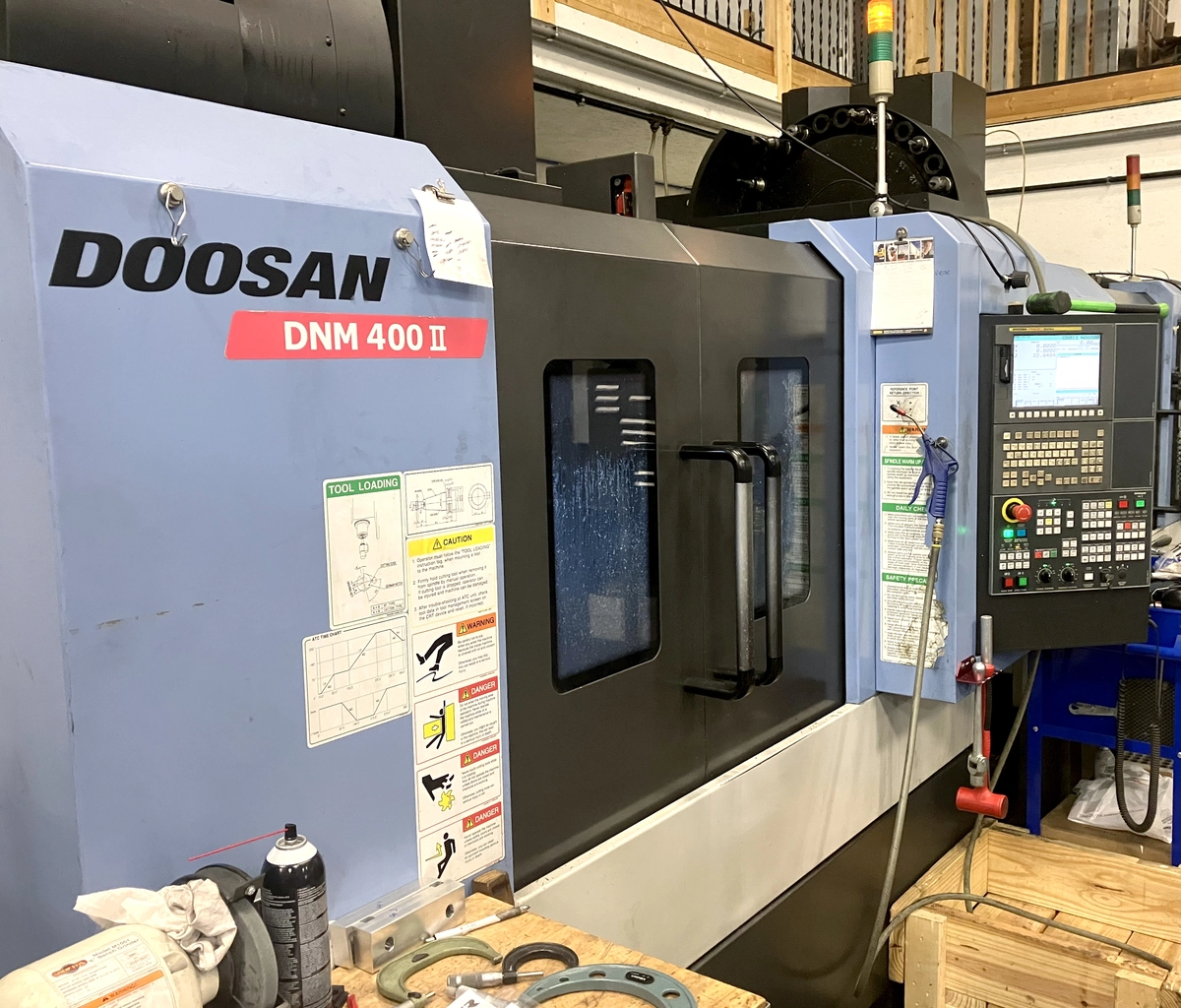

Used 2014 DOOSAN DNM 400 II | Vertical Machining Centers

Travel distance
X-axis mm(inch) 762 (30.0)
Y-axis mm(inch) 435 (17.1)
Z-axis mm(inch) 510 (20.1)
Distance from spindle nose to table top mm(inch) 150-660 (5.9-30.5)
Distance from spindle nose to column mm(inch) 512 (20.2)
Rapid Traverse Rate
X-axis m/min(ipm) 36 (1417.3 )
Y-axis m/min(ipm) 36 (1417.3 )
Z-axis m/min(ipm) 30 (1181.1)
Max. Cutting feedrate m/min(ipm) 15000 (590.6)
Table
Table size mm(inch) 920*435 (36.2*17.1)
Table loading capacity kg(lb) 600 (1322.8)
Table surface type 4-125*18H8
Spindle
Max. Spindle speed r/min 8000
Spindle taper ISO #40, 7/24 TAPER
Automatic Tool Changer
Tool storage capa. ea 30
Max. tool diameter Continous mm(inch) Ø80 {Ø76} (Ø3.1 {Ø3.0})
Without Adjacent Tools mm(inch) Ø125 {Ø125} (Ø4.9 {Ø4.9})
Max. tool length mm(inch) 300 (11.8)
Max. tool weight kg(lb) 8 (17.6)
Tool selection memory random
Tool change time (Tool-to-tool) s 1.3
Tool change time (Chip-to-chip) s 3.7
Coolant pump motor power kW(Hp) 0.4 (0.5)
Power source Electric power supply(rated capacity) kVA 30 42.55
Compressed air supply Mpa(psi) 0.54 (78.3)
Tank capacity Coolant tank capacity L(gal) 300 (79.3)
Lubrication tank capacity L(gal) 1.4 (0.4)
Machine Dimensions
Height mm(inch) 2703 (106.4) 2815 (110.8)
Length mm(inch) 2282 (89.8) 2444 (96.2) 2762 (108.7)
Width mm(inch) 2615 (103.0) 2960 (116.5) 3350 (131.9)
Weight kg(lb) 5000 (11023.0)
