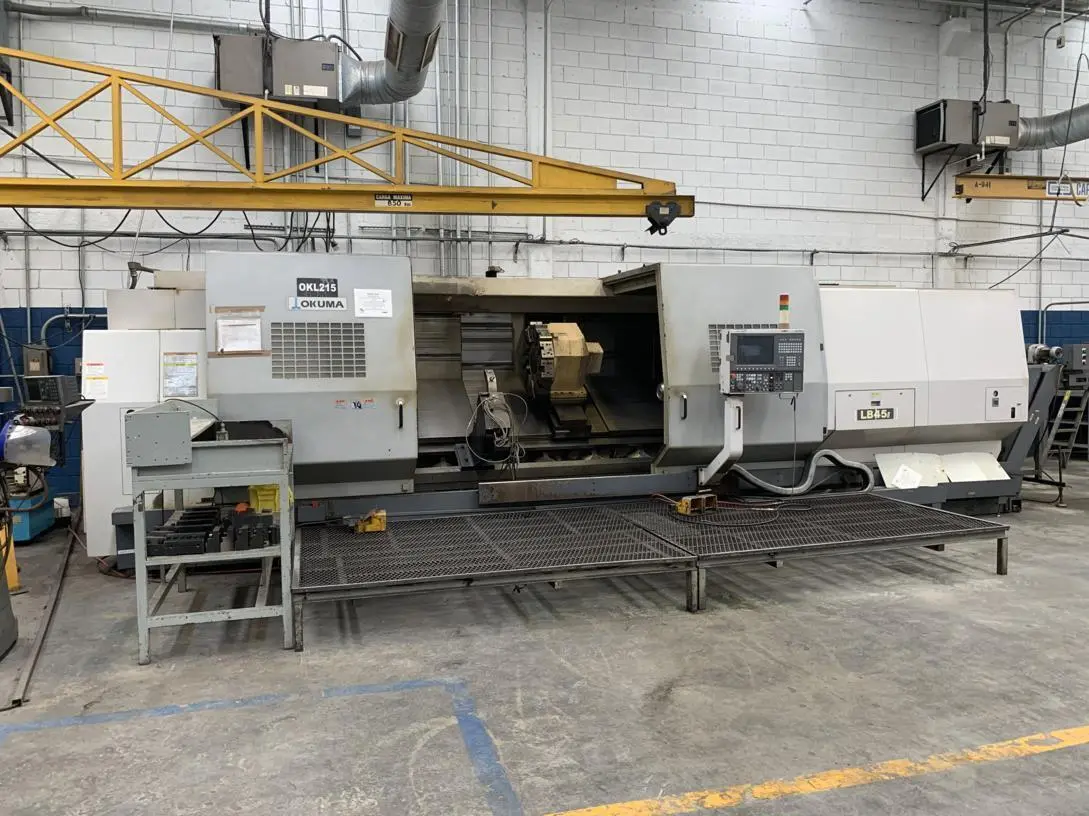

Used 2007 OKUMA LB45II-C4000 | CNC LATHE

Chuck 18"
Swing Over Way Cover mm (in) 858 (33.77")
Swing Over Saddle mm (in) 550 (21.7")
Max Turning Dia-Upper mm (in) 650 (25.59")
Travel XA-Upper mm (in) 440 {325 + 115} {(17.32" {12.80" + 4.53")}
Max ZA Travel Upper mm (in) 4,060 (159.8")
Max Work Length-Upper mm (in) 4,000 (157.48")
Spindle Bore mm (in) 130 (5.12")
Total Speed Range rpm 31-275-900
Std. Power kW (hp) 45/37 (60/50) 30 min/cont.
C-Axis Mechanism Main Motor + Mag Pulse
Turret Type NC-V12
No. of Tool Stations 12
Quill Type mm (in) MT # 5
